72063 (264-H) - Toro Yard Tractor (SN: 059000499 - 059999999) (1995) IGNITION/ELECTRICAL Parts Diagram

Yard Tractor

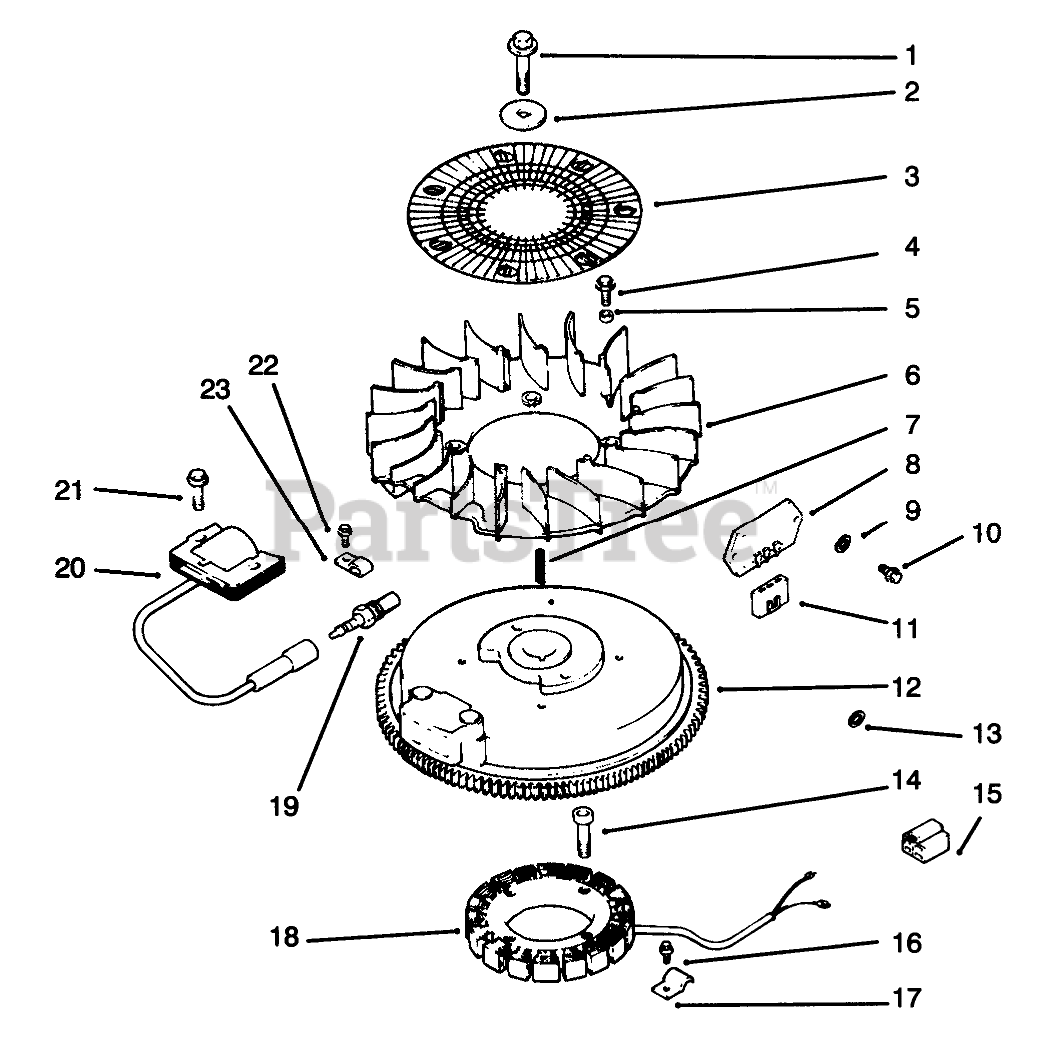

IGNITION/ELECTRICAL Parts Diagram

  • Title

1

Kohler 12 086 14

Screw-Flywheel Mounting (Only On: 72042, 72043, 72062, 72063)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

2

Kohler 12 468 03

Washer-Flywheel Screw (Only On: 72042, 72043, 72062, 72063)
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

3

Kohler 24 162 03

Screen-Grass (Only On: 72042, 72043, 72062, 72063)
(Superseded to 24 162 03-S)

$

$

Not available

4

Kohler M-0639016

Screw M6x1.0x16 (Only On: 72042, 72043, 72062, 72063)
(Superseded to M-639016)

$2.49

$

In Stock, Qty 6

0

5

1211201

Spacer-Fan (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

6

1215702

Fan (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

7

Kohler X-42-15

Key (Only On: 72042, 72043, 72062, 72063)
(Superseded to X-42-15-S)

$2.99

$

In Stock, Qty 8

0

8

4140309

Rectifier-Regulator (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

9

Kohler X-22-11

Washer-Lock (Only On: 72042, 72043, 72062, 72063)
(Superseded to X-22-11-S)

$2.49

$

In Stock, only 3 left!

0

10

Kohler M-0639016

Screw M6x1.0x16 (Only On: 72042, 72043, 72062, 72063)
(Superseded to M-639016)

$2.49

$

In Stock, Qty 6

0

11

Kohler 236602

Connector-Regulator (Only On: 72042, 72043, 72062, 72063)
(Superseded to 236602-S)

$24.99

$

In Stock, only 1 left!

0

12

1202516

Flywheel ASM (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

13

Kohler X-25-5

Washer-Flat (Only On: 72042, 72043, 72062, 72063)
(Superseded to X-25-5-S)

$2.49

$

Usually ships in 2-5 days

0

14

Kohler M-0548025

Screw M5x0.8x25 (Only On: 72042, 72043, 72062, 72063)
(Superseded to M-548025)

$2.49

$

In Stock, only 2 left!

0

15

4815501

Connector-5 Contact (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

16

Kohler M-0545010

Screw M5x0.8x10 (Only On: 72042, 72043, 72062, 72063)
(Superseded to M-545010)

$4.49

$

In Stock, only 2 left!

0

17

1215402

Clip-Stator Harness (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

18

2408501

Stator-15 Amp (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

19

Kohler 12 132 02

Spark Plug (Only On: 72042, 72043, 72062, 72063)
(Superseded to 12 132 02-S)

$3.49

$

In Stock, Qty 20+

0

20

1258401

Module-Ignition (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

21

Kohler SM-0545020

Screw M5x0.8x20 (Only On: 72042, 72043, 72062, 72063)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

22

Kohler M-0545010

Screw M5x0.8x10 (Only On: 72042, 72043, 72062, 72063)
(Superseded to M-545010)

$4.49

$

In Stock, only 2 left!

0

23

Kohler X-728-1

Clip-Kill Lead (Only On: 72042, 72043, 72062, 72063)
(Superseded to X-728-1-S)

$2.49

$

Usually ships in 2-5 days

0

1251801

Lead-White (Only On: 72042, 72043, 72062, 72063)

Note: Not illustrated

$

$

Not available

1551809

Lead-Green (Only On: 72042, 72043, 72062, 72063)

Note: Not illustrated

$

$

Not available

Kohler 2551805

Lead-Black (Only On: 72042, 72043, 72062, 72063)

Note: Not illustrated

$

$

Not available
