72063 (264-H) - Toro Yard Tractor (SN: 059000001 - 059000498) (1995) TWIN CYLINDER ENGINE, MUFFLER, AND P.T.O. Parts Diagram

Yard Tractor

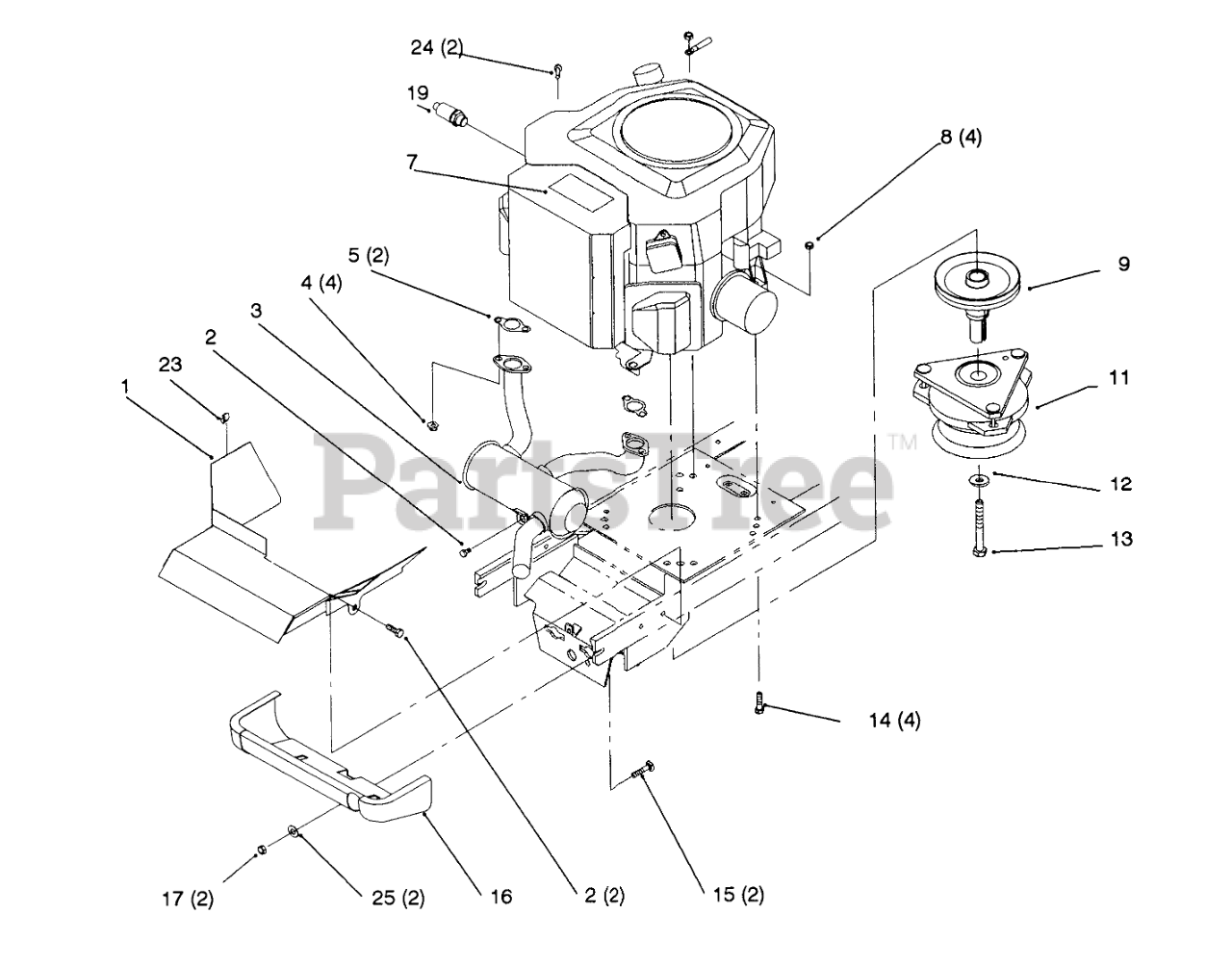

TWIN CYLINDER ENGINE, MUFFLER, AND P.T.O. Parts Diagram

  • Title

1

Toro 92-6879-03

Baffle-MufRer (Only On:72103)
(Superseded to 94-6950)

$

$

Not available

2

Toro 9266934

Screw-HWHTF (Only On:72103)

$8.99

$

In Stock, only 2 left!

0

3

Toro 92-6861

Muffler (Only On: 72103)
(Superseded to 98-9003)

$

$

Not available

4

Toro 92-6780

Nut-HHF (Only On: 72103)
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 11

0

5

Toro 93-0350

Gasket-Exhaust (Only On: 72103)
(Superseded to 110-6697)

$

$

Not available

7

Toro 93-0535

Decal-Toro Power Plus 18 (Only On: 72103)

$

$

Not available

8

Toro 3296-29

Nut-Lock (Only On: 72103)

$2.49

$

In Stock, Qty 20+

0

9

Toro 92-6888

Pulley (Only On: 72103)

$199.99

$

Usually ships in 3-6 days

0

11

Toro 92-6885

Clutch-PTO (Only On: 72103)

$958.99

$

Usually ships in 3-6 days

0

12

Toro 112843

Washer-PTO (Only On: 72103)

$3.49

$

In Stock, Qty 12

0

13

Toro 9114466

Screw HH (Only On: 72103)

$90.99

$

Usually ships in 3-6 days

0

14

Toro 322-9

Screw- HH (Only On: 72103)

$3.49

$

In Stock, only 3 left!

0

15

Toro 3231-22

Bolt-CARR (Only On: 72103)

$3.49

$

In Stock, Qty 20+

0

16

Toro 92-6867-01

Shield-Muffler (Only On: 72103)
(Superseded to 100-3541-01)

$

$

Not available

17

Toro 3296-39

Nut-Lock (Only On: 72103)

$2.99

$

In Stock, Qty 8

0

19

Toro 92-6877

Valve-Oil Drain (Only On: 72103)

$41.99

$

In Stock, only 1 left!

0

23

Toro 702366

Clip-Wire Retainer (Only On: 72103)

$

$

Not available

24

Toro 32144-118

Screw-PPH (Only On: 72103)

$

$

Not available

25

Toro 3256-24

Washer-Flat (Only On: 72103)

$0.99

$

In Stock, Qty 14

0
