72062 (264-6) - Toro Yard Tractor (SN: 069000001 - 069999999) (1996) STARTING SYSTEM Parts Diagram

Yard Tractor

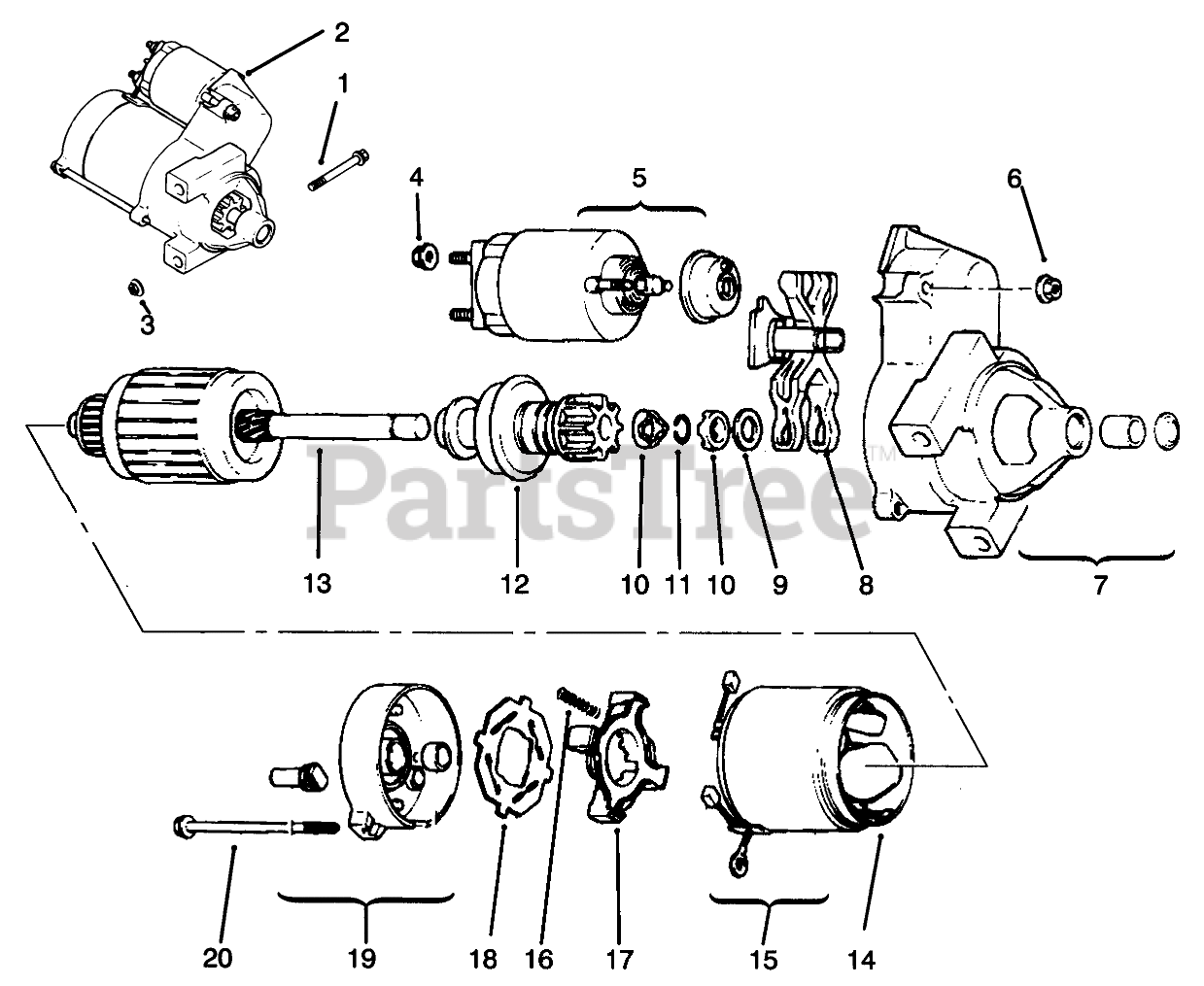

STARTING SYSTEM Parts Diagram

  • Title
1

Kohler M-0839080

Screw M8x1.25x80 (Only On: 72103)

$

$

Not available

2

1209803

Starter INCL 4-20 (Only On: 72103)

$

$

Not available

3

Kohler M-0841080

Nut M8x1.25 (Only On: 72103)
(Superseded to M-841080)

$2.49

$

In Stock, only 1 left!

0

4

5210009

Nut-Starter (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Not available

5

5243502

Solenoid (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Not available

6

5210010

Nut Starter (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Not available

7

1208102

Cap-Drive End (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Not available

8

1209010

Lever Starter Drive (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Not available

9

4246814

Washer-Thrust (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Not available

10

5210008

Nut-Stop Collar (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Not available

11

5214103

Ring-Retainer (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Not available

12

1223901

Drive-Pinion (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Not available

13

1217003

Armature-Starter (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Not available

14

1247101

Frame (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Not available

15

5222101

Kit-Brush INCL 16 (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Not available

16

5208909

Spring-Brush (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Not available

17

5232303

Holder-Brush (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Not available

18

5216801

Insulator (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Not available

19

1230101

Cap-Commutator End (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Not available

20

5221105

Bolt (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Not available
