72062 (264-6) - Toro Yard Tractor (SN: 069000001 - 069999999) (1996) ENGINE CONTROLS Parts Diagram

Yard Tractor

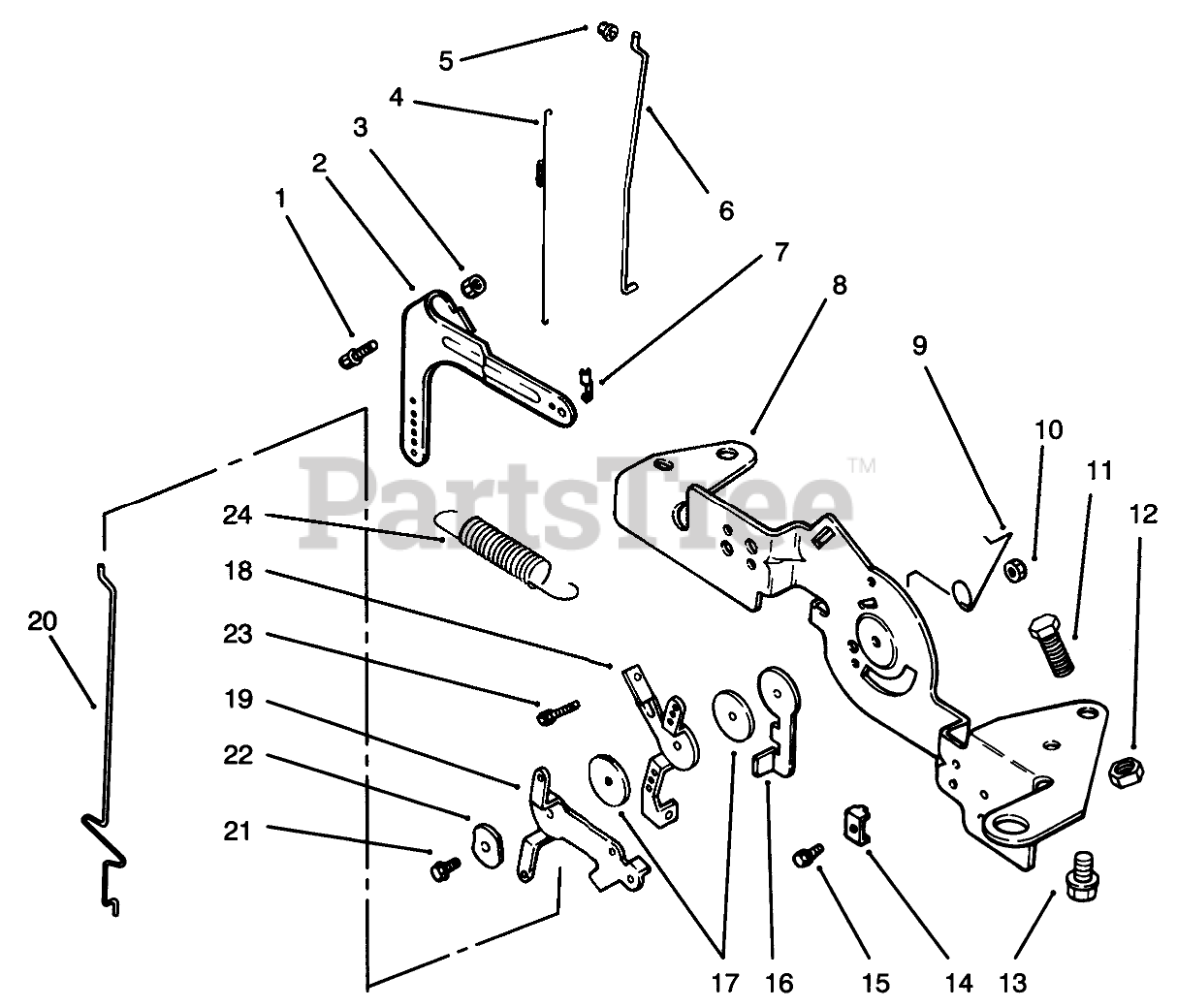

ENGINE CONTROLS Parts Diagram

  • Title
1

Kohler SM-0642025

Screw M6x1.0x25 (Only On: 72103)
(Superseded to SM-642025)

$2.49

$

In Stock, only 1 left!

0

2

2409011

Lever-Governor (Only On: 72103)

$

$

Not available

3

Kohler SM-0641060

Nut M6x1.0 (Only On: 72103)

$

$

Not available

4

Kohler 24 089 01

Spring-Linkage (Only On: 72103)
(Superseded to 24 089 01-S)

$6.49

$

In Stock, only 4 left!

0

5

Kohler 25 158 08

Bushing-Linkage (Only On: 72103)
(Superseded to 25 158 08-S)

$5.99

$

In Stock, Qty 19

0

6

2407904

Linkage-Throttle (Only On: 72103)

$

$

Not available

7

Kohler 25 158 11

Bushing-Linkage (Only On: 72103)
(Superseded to 25 158 11-S)

$5.99

$

In Stock, Qty 13

0

8

2412613

Bracket-Control (Only On: 72103)

$

$

Not available

9

2408903

Spring-Choke Return (Only On: 72103)

$

$

Not available

10

Toro M-0547o50

Nut M5x0.8 (Only On: 72103)

$

$

Currently unavailable

11

Kohler SM-0545016

Screw M5x0.8x16 (Only On: 72103)
(Superseded to SM-545016)

$2.49

$

In Stock, Qty 15

0

12

Toro M-0448030

Nut-Hex M4x0.7 (Only On: 72103)

$

$

Currently unavailable

13

Kohler SM-0645016

Screw M6x1.0x16 (Only On: 72103)
(Superseded to SM-645016)

$3.99

$

In Stock, Qty 15

0

14

Kohler 12 237 01

Clamp-Cable (Only On: 72103)
(Superseded to 12 237 01-S)

$3.49

$

In Stock, Qty 5

0

15

Kohler SM-0545016

Screw M5x0.8x16 (Only On: 72103)
(Superseded to SM-545016)

$2.49

$

In Stock, Qty 15

0

16

Kohler 24 090 07

Lever-Throttle Actuator (Only On: 72103)
(Superseded to 24 090 65-S)

$5.49

$

In Stock, only 1 left!

0

17

Kohler 24 468 01

Washer (Only On: 72103)
(Superseded to 24 468 01-S)

$2.49

$

In Stock, only 2 left!

0

18

2409003

Lever-Throttle Control (Only On: 72103)

$

$

Not available

19

Kohler 24 090 05

Lever-Choke (Only On: 72103)
(Superseded to 24 090 05-S)

$5.49

$

In Stock, only 2 left!

0

20

2407905

Linkage-Choke (Only On: 72103)

$

$

Not available

21

Kohler M-0545020

Screw M5x0.8x20 (Only On: 72103)

$

$

Not available

22

Kohler 41 468 03

Washer-Wave (Only On: 72103)
(Superseded to 41 468 03-S)

$3.49

$

In Stock, only 2 left!

0

23

Toro M-0401025

Screw M4x0.7x24 (Only On: 72103)

$

$

Currently unavailable

24

2408918

Spring-Governor (Only On: 72103)

$

$

Not available
