72062 (264-6) - Toro Yard Tractor (SN: 059000001 - 059000227) (1995) AIR INTAKE/FILTRATION (KOHLER ENGINE CV14S-PS1472) Parts Diagram

Yard Tractor

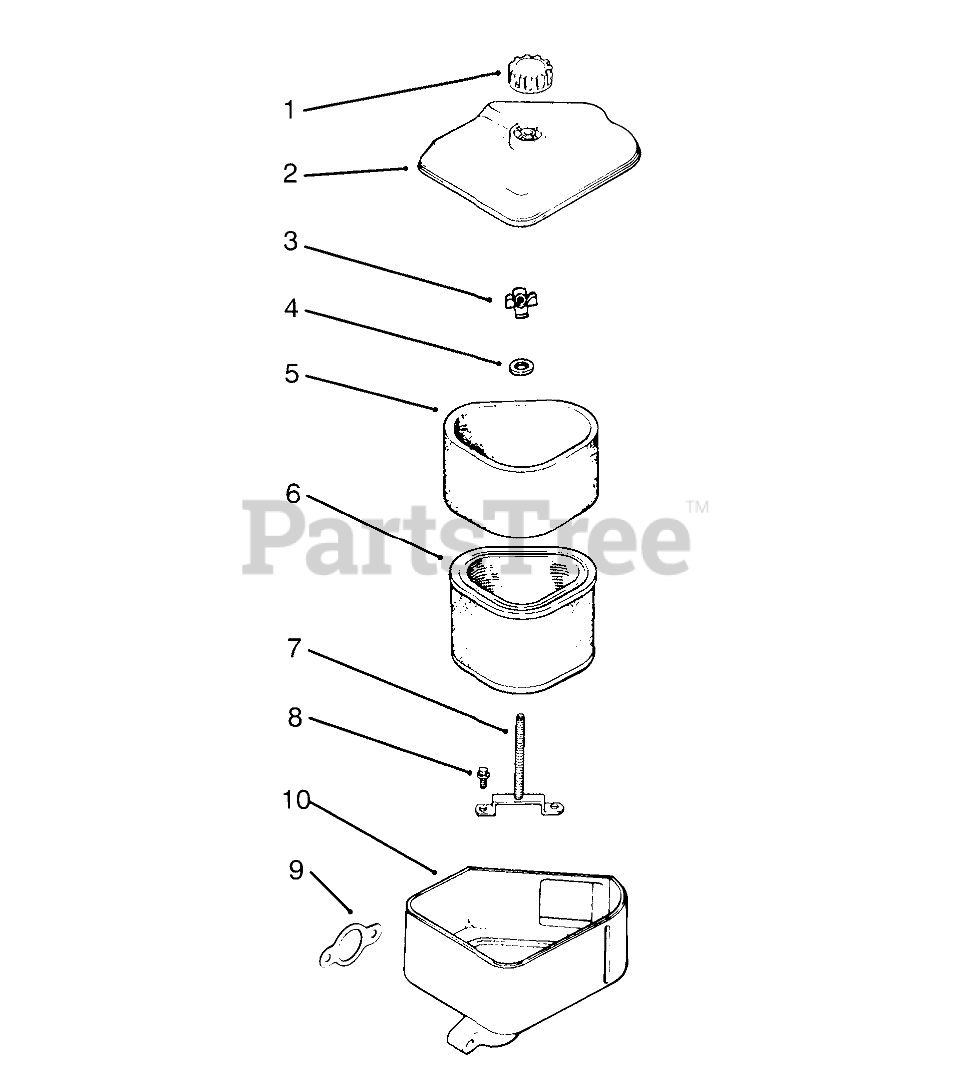

AIR INTAKE/FILTRATION (KOHLER ENGINE CV14S-PS1472) Parts Diagram

  • Title

1

12_341_01

Knob-Air Cleaner Cover (Only On: 72042,72043,72062,72063)

$

$

Not available

2

12_096_06

Cover-Air Cleaner (Only On: 72042,72043,72062,72063)

$

$

Not available

3

12_100_01

Nut-Wing (Only On: 72042,72043,72062,72063)

$

$

Not available

4

Toro X-25-63

Washer-Flat (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

5

12_083_05

Element-Air Cleaner (Only On: 72042,72043,72062,72063)

$

$

Not available

6

12_083_08

Precleaner-Element (Only On: 72042,72043,72062,72063)

$

$

Not available

7

12_072_03

Stud-Mounting Plate (Only On: 72042,72043,72062,72063)

$

$

Not available

8

12_086_01

Screw-Mounting Plate (Only On: 72042,72043,72062,72063)

$

$

Not available

9

12_041_02

Gasket-Air Cleaner (Only On: 72042,72043,72062,72063)

$

$

Not available

10

12_094_01

Base-Air Cleaner (Only On: 72042,72043,72062,72063)

$

$

Not available

Toro 19_113_04

Decal-Air Cleaner (Only On: 72042,72043,72062,72063)

Note: Not illustrated

$

$

Currently unavailable
