72062 (264-6) - Toro Yard Tractor (SN: 049000001 - 049999999) (1994) MOTOR SHAFT Parts Diagram

Yard Tractor

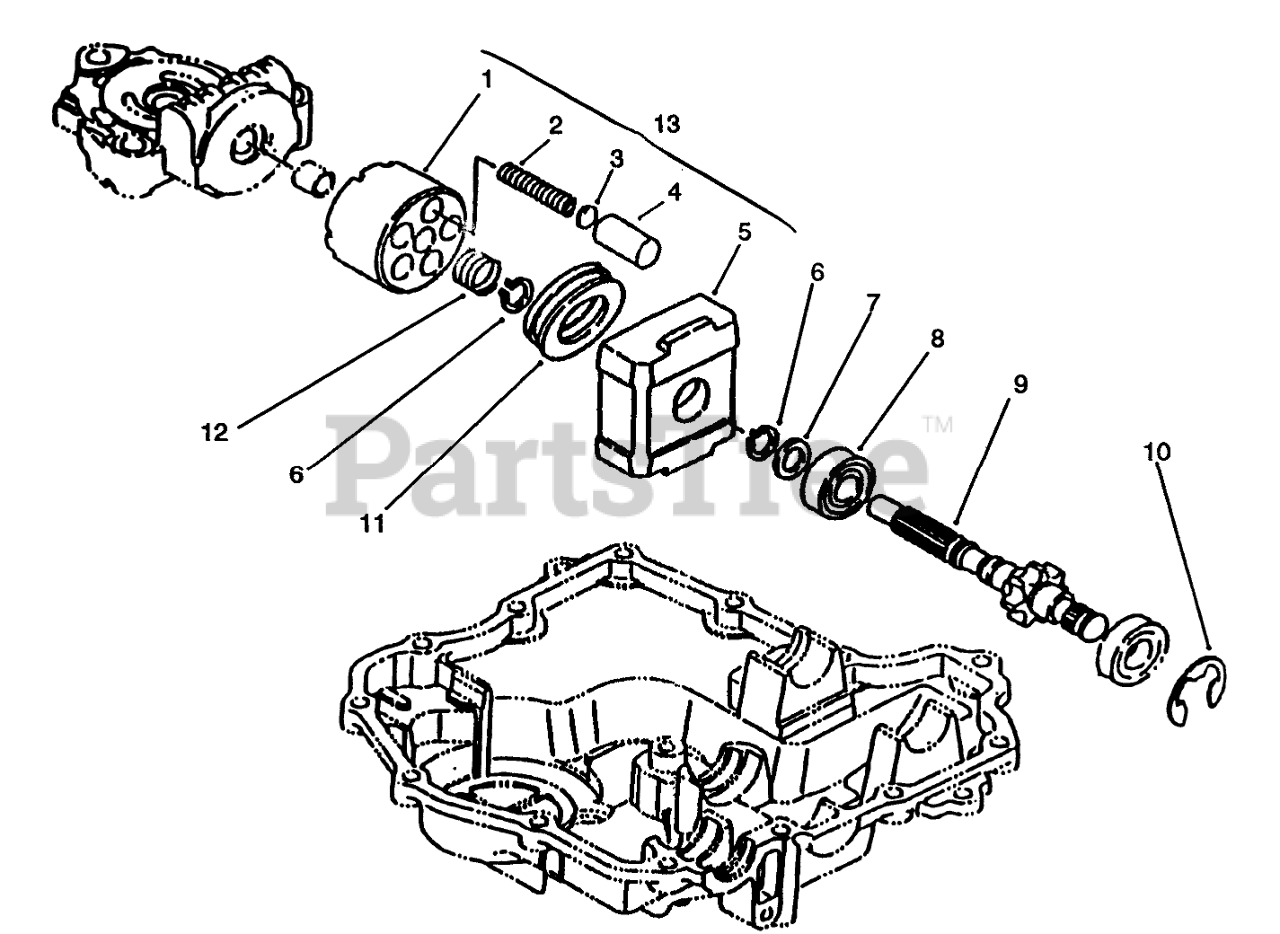

MOTOR SHAFT Parts Diagram

  • Title

1

Block-Cylinder (Only On: 72083, 72043, 72103, 72063)

$

$

Not available

2

Spring (Only On: 72083, 72043, 72103, 72063)

$

$

Not available

3

Washer (Only On: 72083, 72043, 72103, 72063)

$

$

Not available

4

Piston (Only On: 72083, 72043, 72103, 72063)

$

$

Not available

5

Toro 93-0375

Housing (Only On: 72083, 72043, 72103, 72063)

$

$

Not available

6

Toro 93-0373

Ring-Snap (Only On: 72083, 72043, 72103, 72063)

$12.99

$

Usually ships in 3-6 days

0

7

Toro 93-0371

Washer (Only On: 72083, 72043, 72103, 72063)

$

$

Not available

8

Toro 93-0374

Bearing-Ball (Only On: 72083, 72043, 72103, 72063)

$58.99

$

Usually ships in 3-6 days

0

9

Toro 93-0386

Shaft-Motor (Only On: 72083, 72043, 72103, 72063)

$

$

Not available

10

Toro 93-0387

E Ring (Only On: 72083, 72043, 72103, 72063)
(Superseded to 92-0761)

$0.99

$

Usually ships in 3-6 days

0

11

Toro 93-0376

Bearing-Thrust (Only On: 72083, 72043, 72103, 72063)

$

$

Not available

12

Spring (Only On: 72083, 72043, 72103, 72063)

$

$

Not available

13

Toro 93-0365

Cylinder ASM INC 6-9 (Only On: 72083, 72043, 72103, 72063)

$

$

Not available
