72060 (244-5) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) STARTER ASSEMBLY Parts Diagram

Yard Tractor

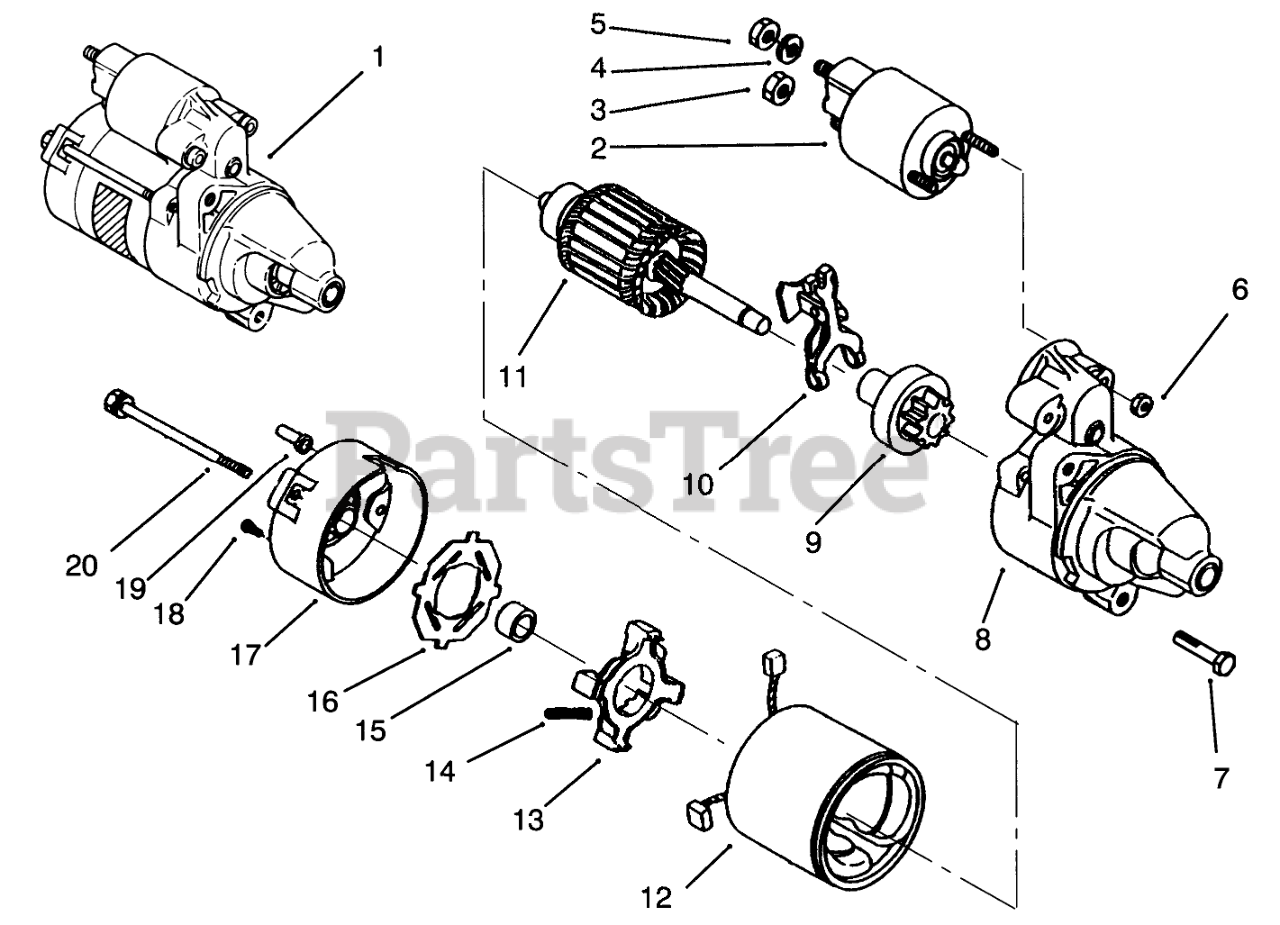

STARTER ASSEMBLY Parts Diagram

  • Title

1

Toro NN10739

STARTER

$822.99

$

Usually ships in 3-6 days

0

2

Toro 92-5860

MAGNETIC SWITCH

$

$

Not available

3

Toro 92-5863

NUT

$

$

Not available

4

Toro 92-5865

SPRING WASHER

$

$

Not available

5

Toro 92-5864

NUT

$

$

Not available

6

Toro 92-5862

NUT

$

$

Not available

7

Toro 92-5850

HEX HEAD CAPSCREW

$

$

Not available

8

Housing-Starter

$

$

Not available

9

Clutch

$

$

Not available

10

Toro 92-5859

STARTER DRIVE LEVER

$

$

Not available

11

Toro 92-5855

STARTER ARMATURE

$

$

Not available

12

Toro 92-5851

STARTER FRAME

$

$

Not available

13

Toro 92-5853

BRUSH HOLDER

$

$

Not available

14

Toro 92-5852

BRUSH SPRING

$

$

Not available

15

Toro 92-5857

OILLESS BEARING

$

$

Not available

16

Toro 92-5854

INSULATOR

$

$

Not available

17

Toro 92-5856

Frame-Commutator (Incl. Ref. #15-19)

$

$

Not available

19

Toro 92-5858

COVER

$

$

Not available

20

Toro 92-5861

THROUGH BOLT

$

$

Not available
