72060 (244-5) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) OIL BASE & PUMP ASSEMBLY Parts Diagram

Yard Tractor

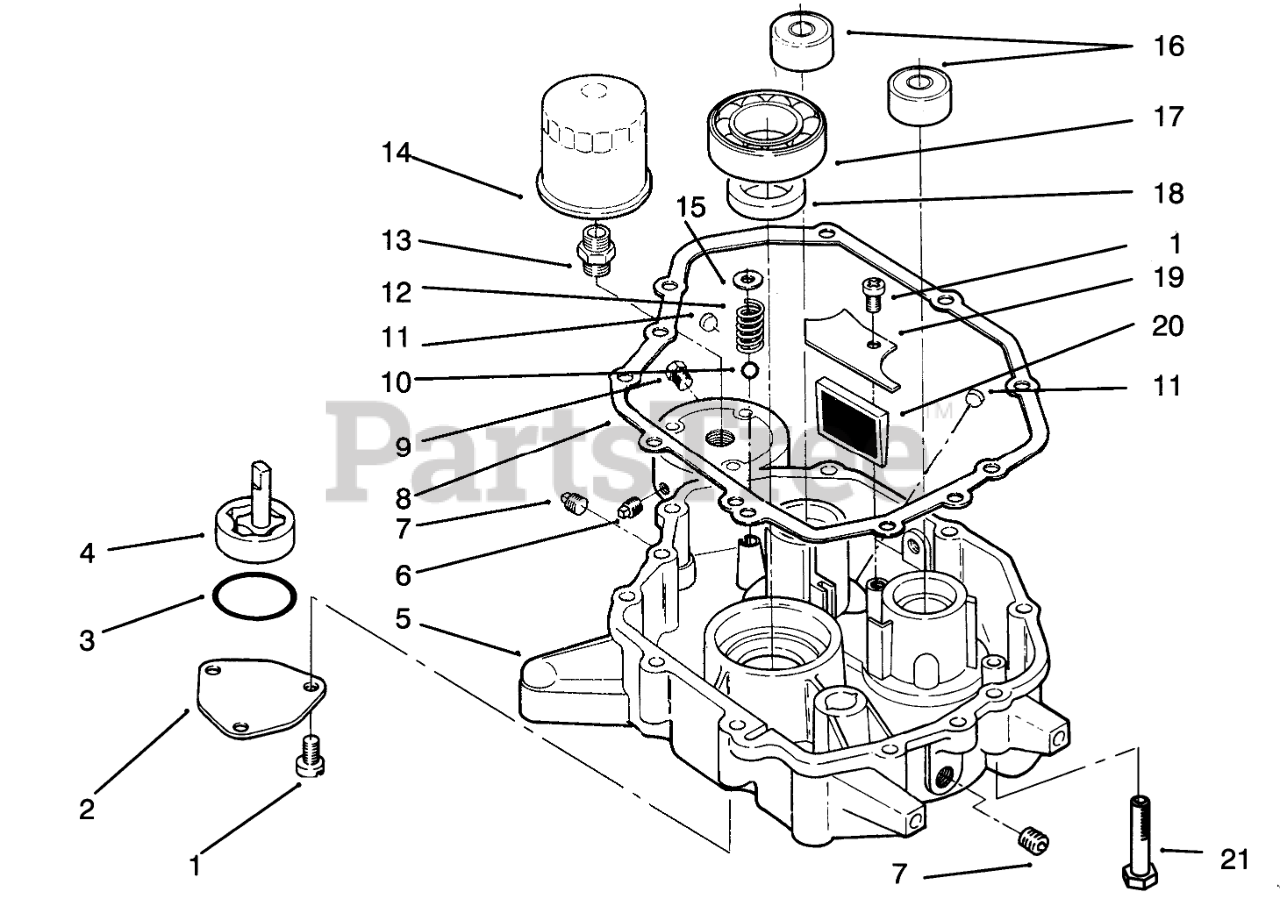

OIL BASE & PUMP ASSEMBLY Parts Diagram

  • Title

1

Toro NN10868

SCREW-M6 X 14

$

$

Not available

2

Toro NN10573

COVER-OIL PUMP

$

$

Not available

3

Toro NN10575

RING-O

$

$

Not available

4

Toro NN10572

PUMP-OIL

$

$

Not available

5

Toro NN10675

BASE-0IL

$

$

Not available

6

Toro NN10770

PLUG-COUNTERSUNK HD

$

$

Not available

7

Toro 82-1130

PLUG - SQUARE HEAD

$

$

Not available

8

Toro 92-5882

Gasket
(Superseded to 92-5949)

$

$

Not available

9

Toro NN10687

PLUG-HEX HD

$

$

Not available

10

Toro NN10534

BALL-BEARING

$

$

Not available

11

Toro NN10339

Plug
(Superseded to 59-0760)

$

$

Not available

12

Toro NN10153

Spring
(Superseded to 57-8550)

$

$

Not available

13

Toro NN10685

ADAPTER

$32.99

$

Usually ships in 3-6 days

0

14

Toro NN10684

FILTER

$32.99

$

In Stock, only 3 left!

0

15

Toro NN10539

RETAINING-RING

$

$

Not available

16

Toro NN10678

BRNG-BALL BAL SHFT L

$

$

Not available

17

Toro NN10677

BRNG-BALL CRANKSH L

$

$

Not available

18

Toro NN10569

SEAL-OIL CRNKSHFT UP

$19.99

$

Usually ships in 3-6 days

0

19

Toro NN10578

COVER

$

$

Not available

20

Toro NN10577

SCREEN

$

$

Not available

21

Toro NN10680

SELF-TAP BOLT SP M8

$

$

Not available
