72060 (244-5) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) FENDER AND SEAT ASSEMBLY Parts Diagram

Yard Tractor

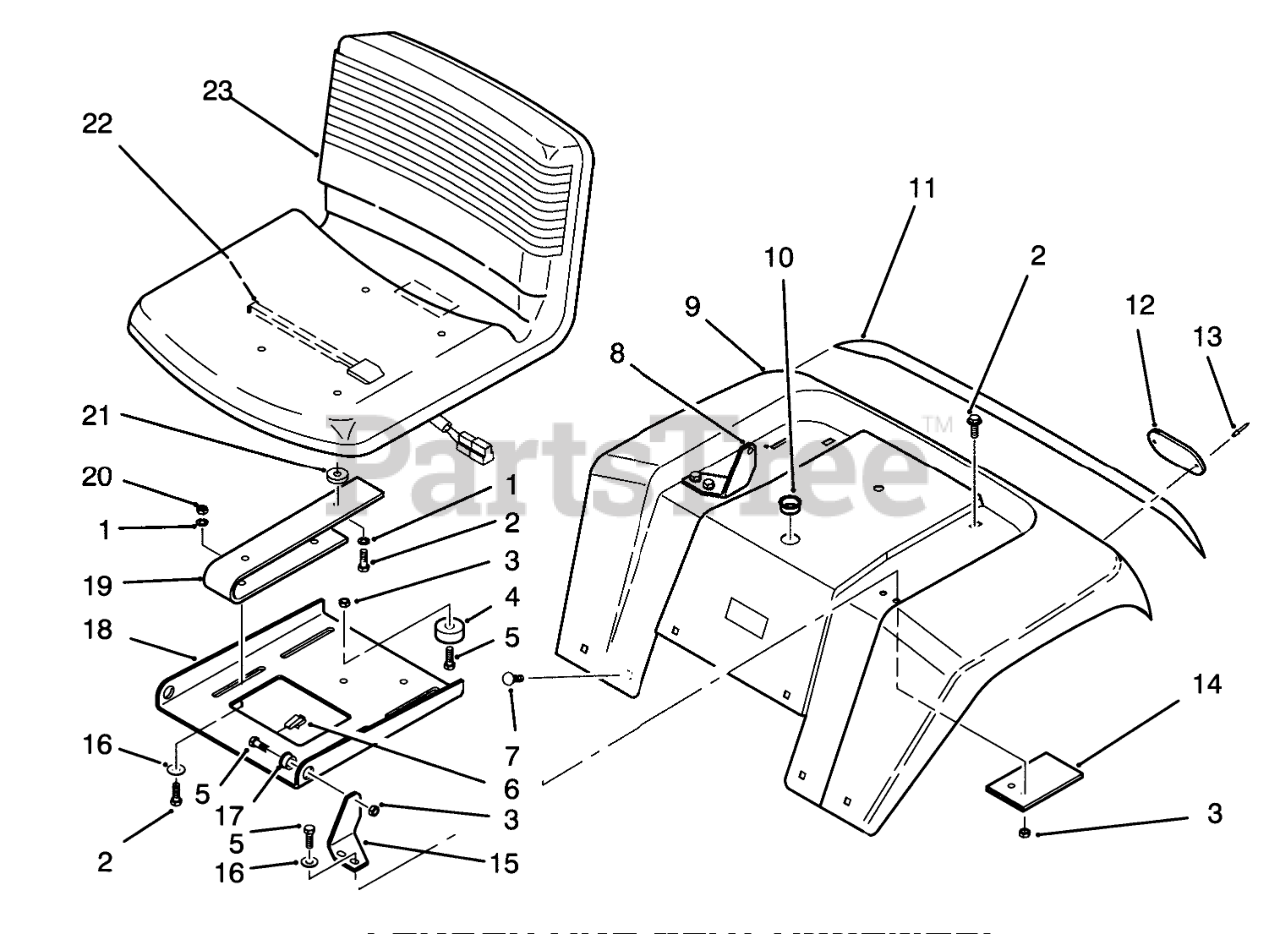

FENDER AND SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

2

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

4

Toro 111071

BUMPER SJ5514 BLACK

$3.49

$

In Stock, Qty 5

0

5

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

7

Toro 3220-23

NUT-HEX, JAM

$2.99

$

Usually ships in 3-6 days

0

8

Toro 112744

Bracket-Pivot RH

$

$

Not available

9

Toro 79-0050

FENDER R

$753.99

$

Usually ships in 3-6 days

0

10

Toro 938031

BUSHING-NYLON 1.093

$

$

Not available

11

Toro 117760

DECAL-FENDER

$60.99

$

Usually ships in 3-6 days

0

12

Toro 108547

Reflector
(Superseded to 106557)

$

$

Not available

13

Toro 109193

Poprivet
(Superseded to 3290-282)

$0.99

$

In Stock, Qty 8

0

14

Toro 112961

PLATE R

$

$

Not available

15

Toro 112745

BRACKET-PIVOT L.H B

$

$

Not available

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

18

Toro 113852

PLATE-SEAT PIVOT B

$

$

Not available

19

Toro 112837

SPRING-SEAT B

$

$

Not available

20

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

21

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0

22

Toro 38-1420

SWITCH-SEAT

$

$

Not available

23

Toro 79-0670

SEAT V-510

$

$

Not available

Toro 88-3200

Decal-Maintenance
(Superseded to 115398)

Note: Not illustrated

$47.99

$

In Stock, only 1 left!

0
