72060 (244-5) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) DASH ASSEMBLY Parts Diagram

Yard Tractor

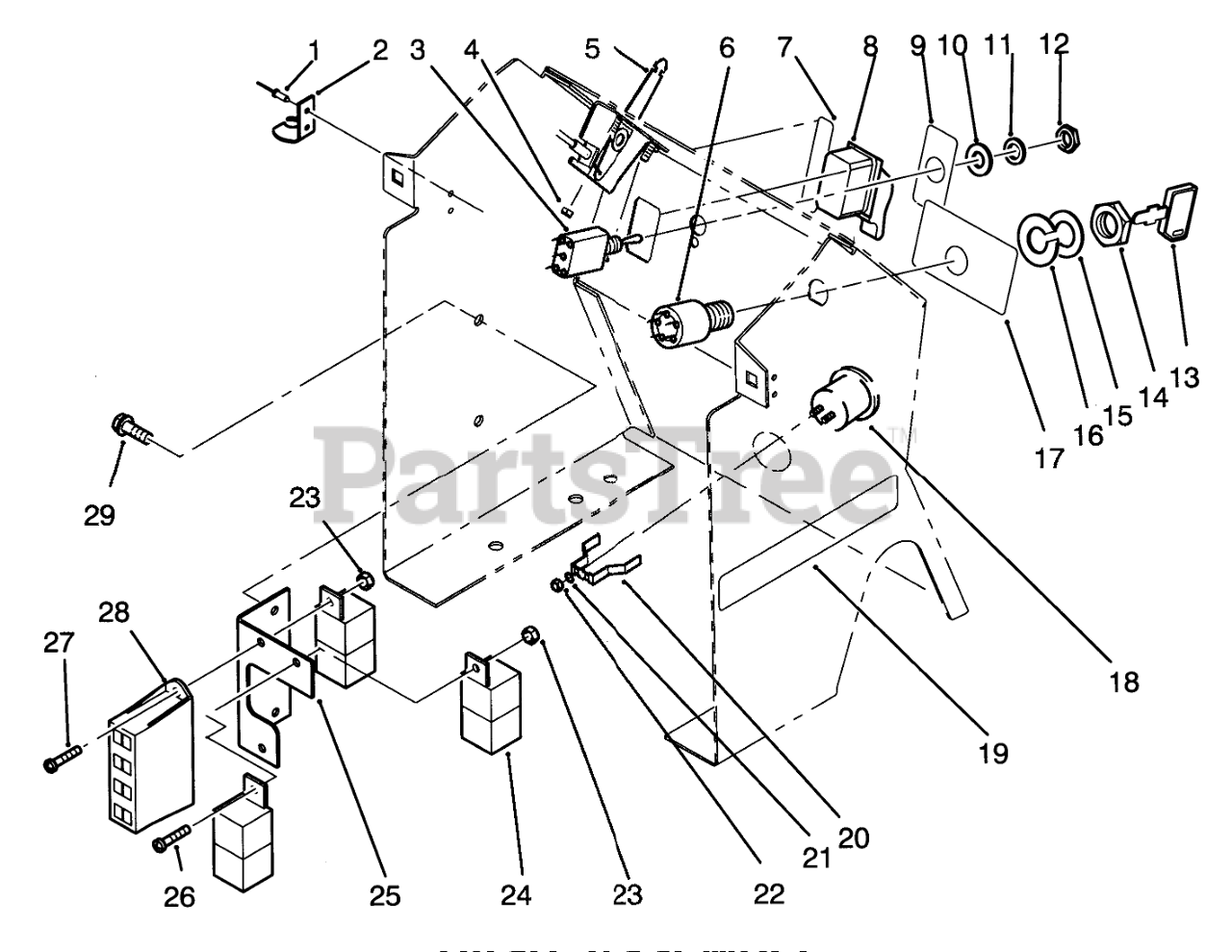

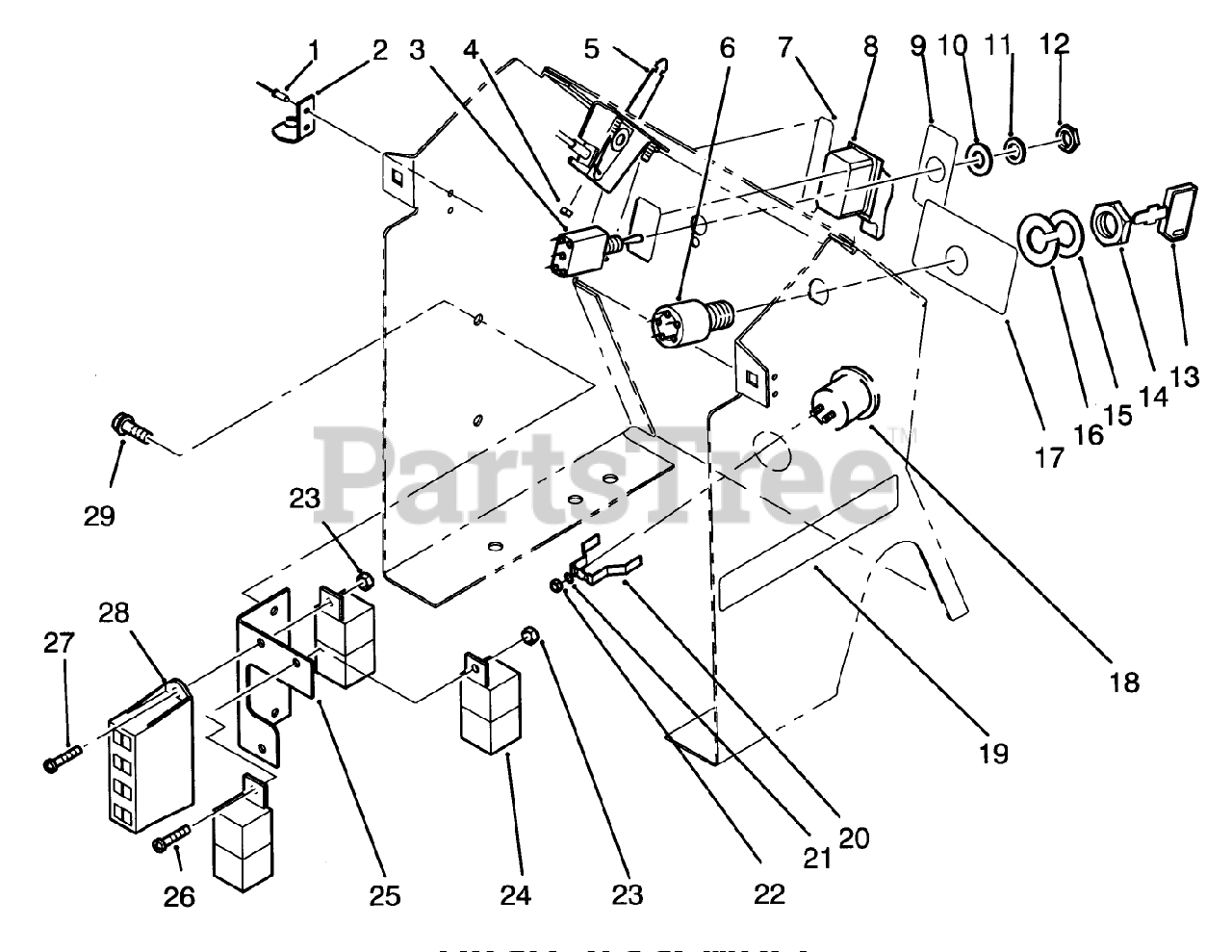

DASH ASSEMBLY Parts Diagram

  • Title
1

Toro 117431

POPRIVET 1/8X 1/8 BK

$

$

Not available

2

Toro 117343

KEEPER-LATCH

$4.99

$

In Stock, only 2 left!

0

3

Toro 102138

SWITCH-LIGHTS

$40.99

$

Usually ships in 3-6 days

0

4

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

5

Toro 79-3330

CONTROL-THROTTLE

$98.99

$

Usually ships in 3-6 days

0

6

Toro 116338

Switch-Ignition, (Incl. Ref #6 & 13-17)

$78.99

$

In Stock, only 2 left!

0

7

Toro 78-8440

DECAL-PTO

$

$

Not available

8

Toro 78-3030

PTO-SWITCH W/COVER

$126.99

$

In Stock, only 3 left!

0

9

Toro 78-8490

DECAL-LIGHTS

$

$

Not available

10

Toro 102250

WIRE ASSY

$

$

Not available

11

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

12

$

$

Not available

13

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, only 1 left!

0

14

$7.49

$

In Stock, only 1 left!

0

15

Toro 920262

Washer
(Superseded to 9202624)

$8.99

$

Usually ships in 3-6 days

0

16

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 3 left!

0

17

Toro 78-8480

DECAL-IGNITION

$

$

Not available

18

Toro 78-0021

HOUR-METER

$

$

Not available

19

Toro 117512

DECAL-MODEL 5-SPEED

$

$

Not available

20

Toro 78-3320

CLAMP-HOUR METER

$11.99

$

Usually ships in 3-6 days

0

21

Toro 3253-15

WASHER-LOCK

$2.49

$

Usually ships in 3-6 days

0

22

Toro 915564

Nut
(Superseded to 3217-27)

$0.99

$

Usually ships in 3-6 days

0

23

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

24

Toro 116397

RELAY

$40.99

$

In Stock, only 1 left!

0

25

Toro 75-5030

Bracket-Fuse Holder
(Superseded to 79-5030)

$

$

Not available

26

Toro 3250-14

SCREW-PPH

$6.99

$

Usually ships in 3-6 days

0

27

Toro 910796

Screw
(Superseded to 9107964)

$1.49

$

Usually ships in 3-6 days

0

28

Toro 120930

FUSE-HOLDER 4 WAY
(Superseded to 67-7160)

$22.99

$

In Stock, only 1 left!

0

29

Toro 79-1590

TRS-1/4-20X1/2 BLACK

$

$

Not available
