72060 (244-5) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) CYLINDER BLOCK ASSEMBLY Parts Diagram

Yard Tractor

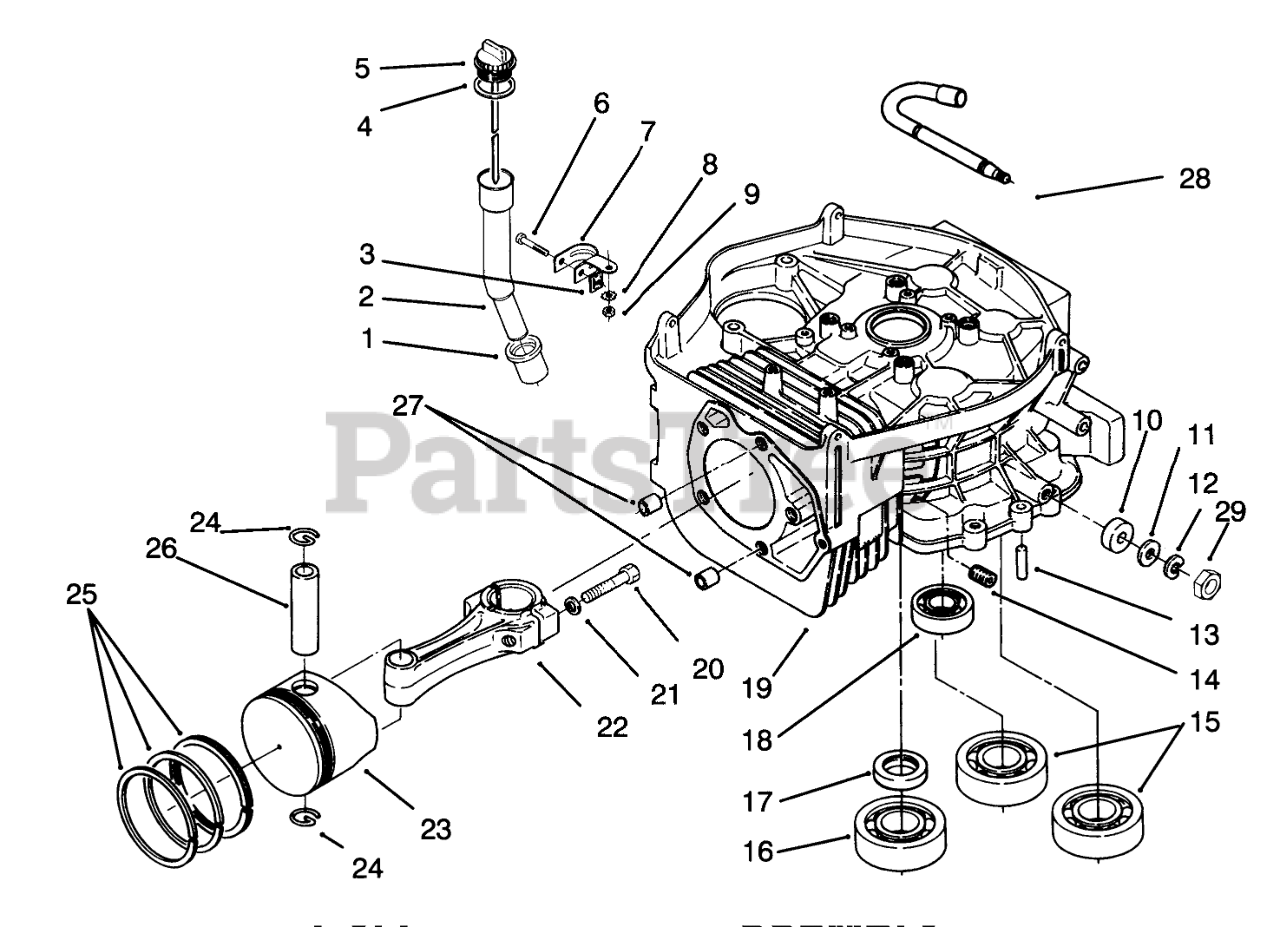

CYLINDER BLOCK ASSEMBLY Parts Diagram

  • Title
1

Toro NN10690

Seal
(Superseded to 71-6170)

$15.99

$

In Stock, only 1 left!

0

2

$

$

Not available

3

Toro 82-1700

NUT - SPEED

$

$

Not available

4

Toro 57-9610

SEAL 0-RING

$7.99

$

In Stock, only 1 left!

0

5

Toro NN10688

INDICATOR

$

$

Not available

6

Toro 82-1560

SCREW - PAN HEAD

$

$

Not available

7

Toro NN10691

BRACKET

$

$

Not available

8

Toro NN10740

WASHER

$

$

Not available

9

Toro 92-5935

HEX NUT

$

$

Not available

10

Toro NN10646

SEAL-GVR SHAFT LEVER

$

$

Not available

11

Toro 82-1350

WASHER-FLAT

$

$

Not available

12

Toro NN10641

CLIP-RETAINER

$

$

Not available

13

Toro 79-5840

PIN-ALIGNMENT

$

$

Not available

14

Toro NN10770

PLUG-COUNTERSUNK HD

$

$

Not available

15

Toro NN10678

BRNG-BALL BAL SHFT L

$

$

Not available

16

Toro NN10570

BEARING-BALL CRANKSH

$

$

Not available

17

Toro NN10569

SEAL-OIL CRNKSHFT UP

$19.99

$

Usually ships in 3-6 days

0

18

Toro NN10571

BEARING-BALL CAMSHFT

$

$

Not available

19

Toro 92-5947

SHORT BLOCK

$5102.99

$

Usually ships in 3-6 days

0

20

Toro NN10590

Bolt
(Superseded to NN10587)

$

$

Not available

21

Toro NN10591

WASHER-CONN ROD

$

$

Not available

22

Toro NN10587

Kit-Connecting Rod STD (Incl. Ref. #12-13)

$

$

Not available

Toro NN10588

Kit-Connecting Rod (.25mm Undersize) (Incl. Ref.12-13)

Note: Not illustrated

$228.99

$

Usually ships in 3-6 days

0

Toro NN10589

Kit-Connecting Rod (.50mm Undersize) (Incl. Ref. #12-13)

Note: Not illustrated

$240.99

$

Usually ships in 3-6 days

0

23

Toro 92-5886

Kit-Piston (Standard) (Incl. Ref. #8-9)

$

$

Not available

Toro 92-5887

Kit-Piston (.25mm Oversize) (Incl. Ref. #8-9)

Note: Not illustrated

$

$

Not available

Toro 92-5888

Kit-Piston (.50mm Oversize) (Incl. Ref. #8-9)

Note: Not illustrated

$

$

Not available

24

Toro NN10583

RING-RETAINING

$

$

Not available

25

Toro 92-5889

PISTON RING SET

$

$

Not available

Toro 92-5890

PISTON RING SET

Note: Not illustrated

$

$

Not available

Toro 92-5891

PISTON RING SET

Note: Not illustrated

$

$

Not available

26

Toro NN10582

PIN-PISTON

$

$

Not available

27

Toro NN10626

PIN-DOWEL HOLLOW

$

$

Not available

28

Toro 92-5916

GOV LEVER SHAFT

$100.99

$

Usually ships in 3-6 days

0

29

Toro 92-5872

NYLON LOCK NUT

$

$

Not available
