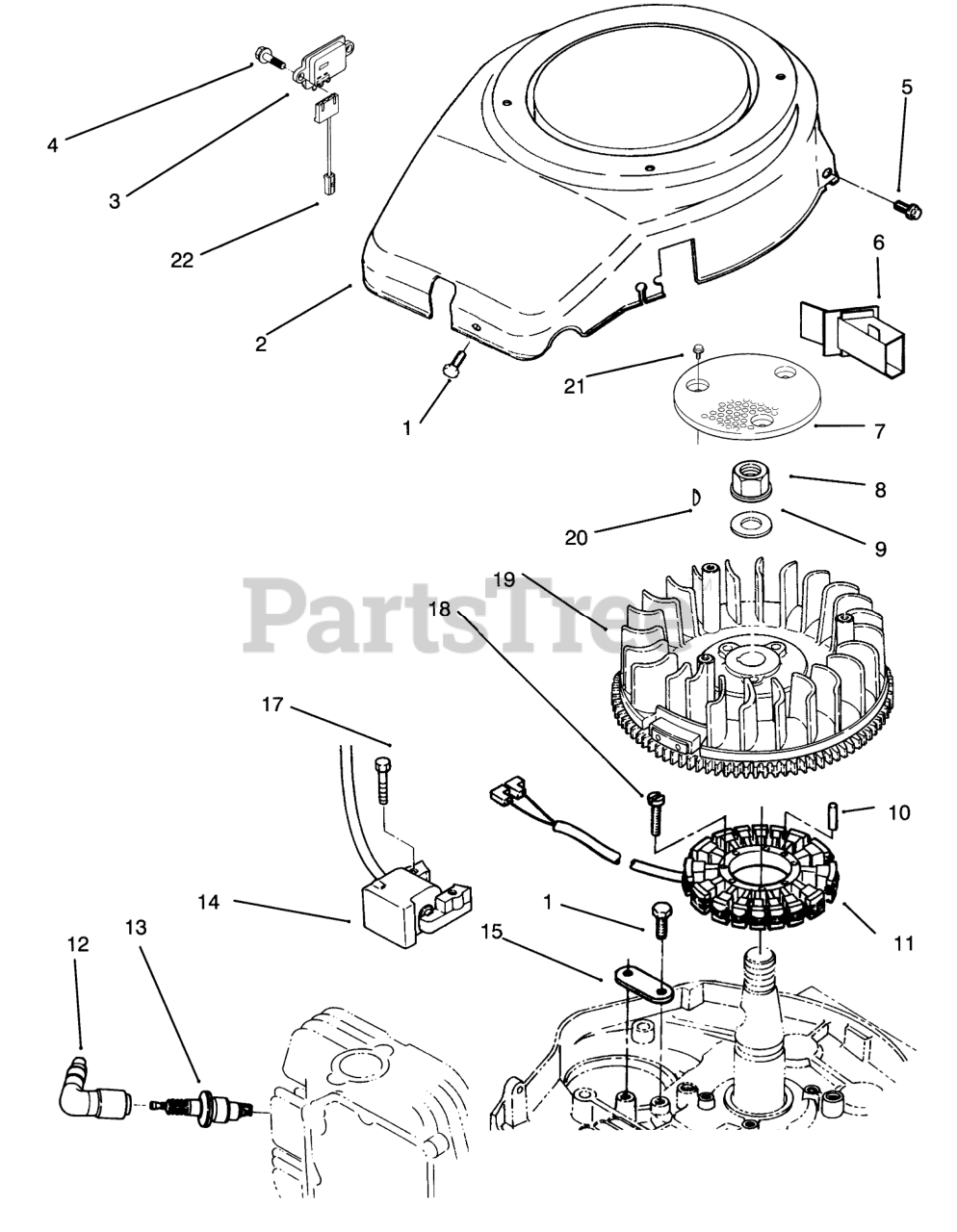

72060 (244-5) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) BLOWER HOUSING AND IGNITION ASSEMBLY Parts Diagram

Yard Tractor

BLOWER HOUSING AND IGNITION ASSEMBLY Parts Diagram

  • Title
1

Toro NN10733

HHSTB-M6 X 14MM

$

$

Not available

2

Toro 92-5892

BLOWER HOUSING ASM

$311.99

$

Usually ships in 3-6 days

0

3

Toro 92-5926

VOLTAGE REGULATOR

$

$

Not available

4

Toro 82-1540

SCREW-HWH

$

$

Not available

5

Toro 92-5932

FLANGE LOCK SCREW

$

$

Not available

6

Toro 92-5903

AIR INLET TUBE

$

$

Not available

7

Toro 92-0921

RH AIR CYLINDER HSG

$

$

Not available

8

Toro NN10715

NUT-FLANGE M18

$

$

Not available

9

Toro 92-5948

FLAT WASHER

$

$

Not available

10

Toro 79-5900

PIN-ALIGNMENT

$

$

Not available

11

Toro 92-5925

ALTERNATOR STATOR

$

$

Not available

12

$

$

Not available

13

Toro NN10820

SPARK PLUG

$5.49

$

In Stock, only 4 left!

0

14

Toro 92-5938

IGNITION COIL

$656.99

$

Usually ships in 3-6 days

0

15

Toro 78-5890

DECAL-SHIFT 5 SPEED

$

$

Not available

17

Toro 82-1540

SCREW-HWH

$

$

Not available

18

Toro NN10735

SCREW

$

$

Not available

19

Toro NN10712

WHL-ASS'Y BLOWER

$

$

Not available

20

$

$

Not available

21

Toro NN10725

HHCS-M6 X 10MM

$

$

Not available

22

Toro 92-5928

ENG WIRING HARNESS

$

$

Not available
