72052 (266-H) - Toro Lawn & Garden Tractor (SN: 220000001 - 220999999) (2002) STARTING SYSTEM ASSEMBLY ASSEMBLY KOHLER MODELS CV460S-26505 AND CV460S-26506 Parts Diagram

Lawn & Garden Tractor

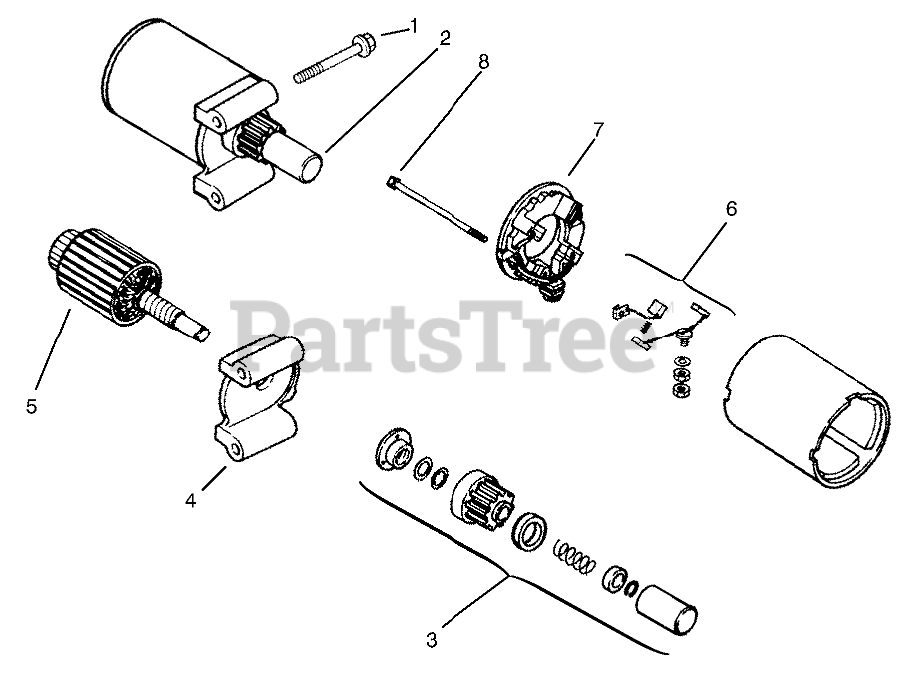

STARTING SYSTEM ASSEMBLY ASSEMBLY KOHLER MODELS CV460S-26505 AND CV460S-26506 Parts Diagram

  • Title

1

Kohler M-839070-S

Screw-HF (M8x1.25x70)

$9.49

$

Usually ships in 2-5 days

0

2

Kohler 12 098 15-S

Starter ASM (Incl 3-8)
(Superseded to 12 098 22-S)

$275.99

$

In Stock, only 1 left!

0

3

Kohler 12 755 53-S

Drive Kit

Note: Included in a service kit or in an assembly

$169.99

$

Usually ships in 2-5 days

0

4

Kohler 12 227 19-S

Cap-End, Drive

Note: Included in a service kit or in an assembly

$

$

Not available

5

Kohler 12 170 05-S

Armature

Note: Included in a service kit or in an assembly

$

$

Not available

6

Kohler 12 221 01-S

Brush ASM

Note: Included in a service kit or in an assembly

$

$

Not available

7

Kohler 12 227 13-S

Commutator-Cap, End

Note: Included in a service kit or in an assembly

$

$

Not available

8

Kohler 12 211 01-S

Bolt

Note: Included in a service kit or in an assembly

$

$

Not available
