72052 (266-H) - Toro Lawn & Garden Tractor (SN: 220000001 - 220999999) (2002) HYDROSTATIC TRANSAXLE ASSEMBLY Parts Diagram
Lawn & Garden Tractor

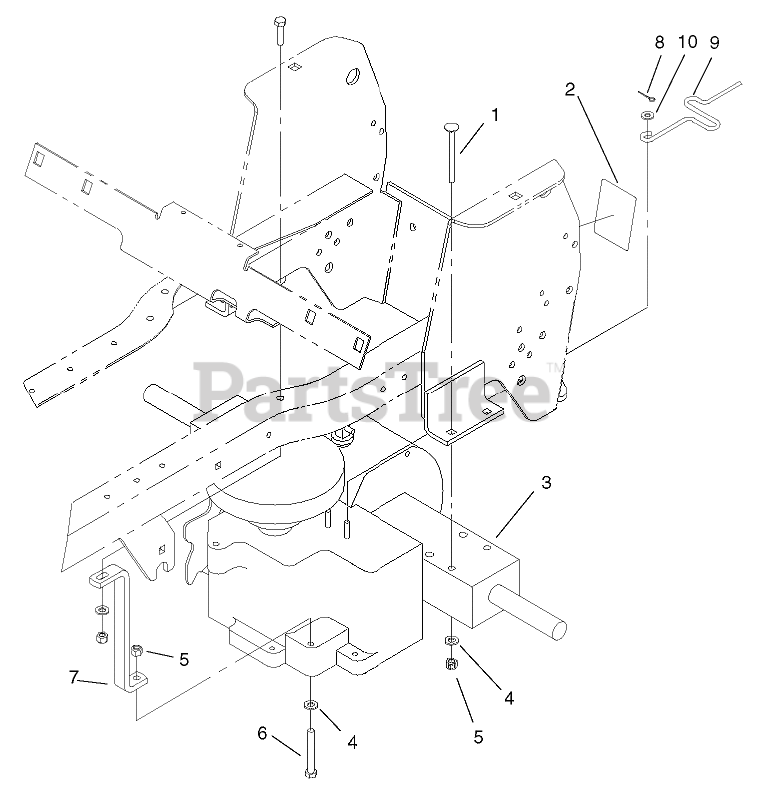

HYDROSTATIC TRANSAXLE ASSEMBLY Parts Diagram
Toro 3230-11
SCREW-CARR
$6.99
$
Usually ships in 3-6 days
Toro 92-7090
Decal-Bypass Valve (only on: 72072)
$
$
Not available
Toro 92-6726
Decal-Hydro Valve (only on: 72052)
$
$
Not available
Toro 104-4310
TRANSAXLE-HYDROSTATIC
$5588.99
$
Usually ships in 3-6 days
Toro 3256-23
WASHER-PLAIN
$2.49
$
In Stock, Qty 20+
Toro 3296-29
NUT-LOCK, NI
$2.49
$
In Stock, Qty 20+
$1.49
$
In Stock, Qty 20+
Toro 100-7536-03
TORQUE STRAP ASM
$
$
Not available
Toro 3272-2
PIN-COTTER
$2.99
$
In Stock, only 2 left!
Toro 104-5037
ROD-BYPASS
$
$
Not available
Toro 3256-22
WASHER-FLAT
$0.99
$
In Stock, Qty 20+
