72051 (265-H) - Toro Lawn & Garden Tractor (SN: 220000001 - 220999999) (2002) IGNITION AND ELECTRICAL ASSEMBLY Parts Diagram

Lawn & Garden Tractor

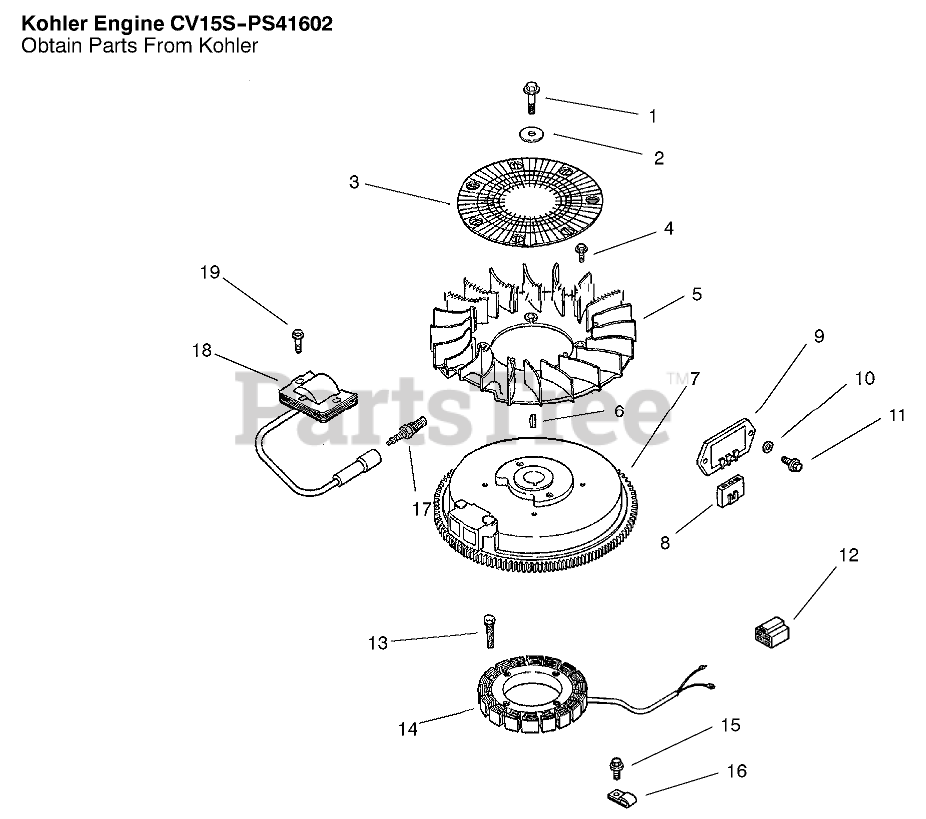

IGNITION AND ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Kohler 12 086 14

Screw
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

2

Kohler 12 468 03

Washer
(Superseded to 12 468 03-S)

$

$

Not available

3

Kohler 24 162 03

Screen-Grass
(Superseded to 24 162 03-S)

$

$

Not available

4

Kohler 25 086 47

Bolt-Shoulder
(Superseded to 25 086 47-S)

$2.49

$

In Stock, Qty 7

0

5

1215703

Fan

$

$

Not available

6

Kohler X-42-15

Key
(Superseded to X-42-15-S)

$2.99

$

In Stock, Qty 9

0

7

1202515

Flywheel

$

$

Not available

8

Kohler 236602

Connector
(Superseded to 236602-S)

$24.99

$

In Stock, only 1 left!

0

9

4140309

Rectifier-regulator

$

$

Not available

10

Kohler X-22-11

Washer
(Superseded to X-22-11-S)

$2.49

$

In Stock, only 3 left!

0

11

Kohler M-639016

Screw-HHF
(Superseded to M-639016-S)

$2.49

$

In Stock, Qty 7

0

12

4815501

Connector

$

$

Not available

13

Kohler M-548025

Screw-HH
(Superseded to M-548025-S)

$2.49

$

In Stock, only 2 left!

0

14

Kohler 237878

Kit-Stator (incl.
(Superseded to 237878-S)

$149.99

$

In Stock, Qty 5

0

15

Kohler M-545010

Screw (M5x0.8x10)
(Superseded to M-545010-S)

$4.49

$

In Stock, only 3 left!

0

16

Kohler X-728-1

Clip
(Superseded to X-728-1-S)

$2.49

$

Usually ships in 2-5 days

0

17

Kohler 12 132 02

Plug-Spark
(Superseded to 12 132 02-S)

$3.49

$

In Stock, Qty 20+

0

18

1258401

Module-Ignition

$

$

Not available

19

Kohler M-545020

Screw (M5x0.8x20)
(Superseded to 25 086 399-S)

$2.49

$

In Stock, Qty 6

0

Kohler 2551805

Lead-Black

Note: Not illustrated

$

$

Not available

1251804

Lead-White

Note: Not illustrated

$

$

Not available

Kohler 24 518 12

Lead-Black
(Superseded to 24 518 12-S)

Note: Not illustrated

$4.99

$

Usually ships in 2-5 days

0

Kohler 2545201

Terminal

Note: Not illustrated

$

$

Not available
