72051 (265-H) - Toro Lawn & Garden Tractor (SN: 220000001 - 220999999) (2002) HYDROSTATIC TRANSMISSION NO. 104-2465 DIFFERENTIAL GEAR ASSEMBLY Parts Diagram

Lawn & Garden Tractor

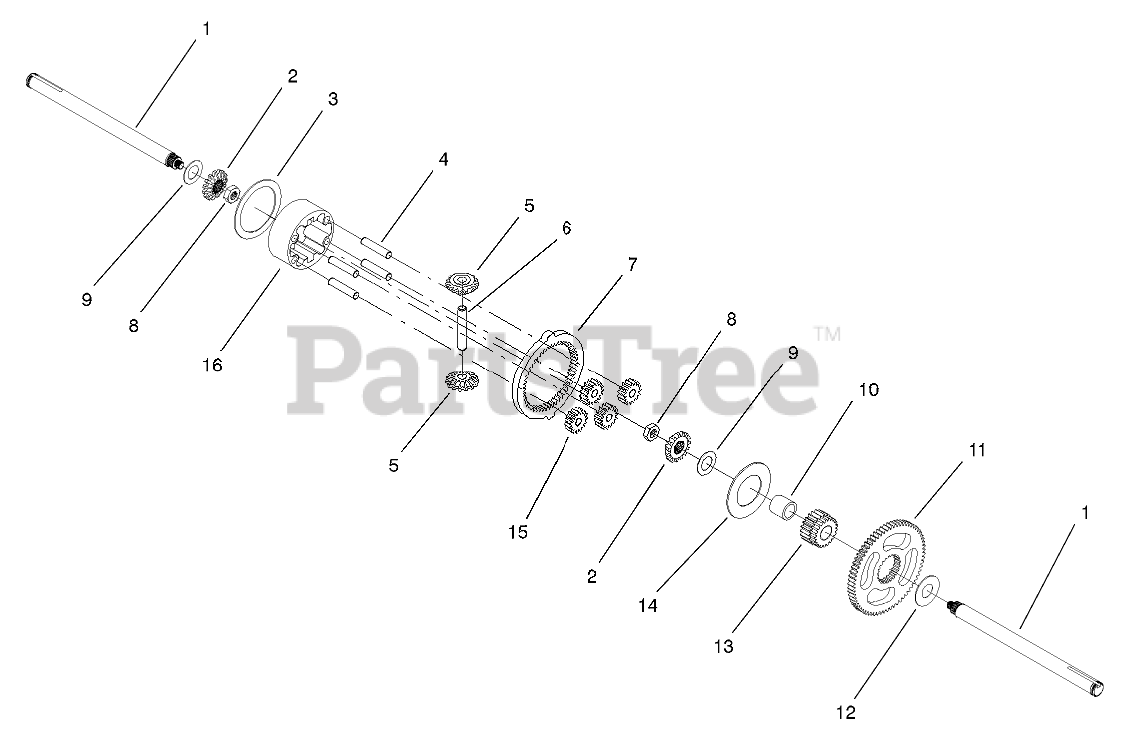

HYDROSTATIC TRANSMISSION NO. 104-2465 DIFFERENTIAL GEAR ASSEMBLY Parts Diagram

  • Title
1

Toro 104-2145

SHAFT-AXLE

$

$

Not available

2

Toro 104-2135

GEAR-MITER

$

$

Not available

3

Toro 104-2138

PLATE-THRUST

$

$

Not available

4

Toro 104-2128

PIN-CARRIER

$

$

Not available

5

Toro 104-2136

GEAR-MITER

$

$

Not available

6

$

$

Not available

7

Toro 104-2133

GEAR-RING, 51T

$

$

Not available

8

Toro 104-2142

NUT-HJ

$12.99

$

Usually ships in 3-6 days

0

9

Toro 104-2140

WASHER

$

$

Not available

10

Toro 104-2160

BEARING-SLEEVE

$

$

Not available

11

Toro 104-2130

GEAR-SPUR, 67T

$

$

Not available

12

Toro 104-2141

WASHER

$

$

Not available

13

Toro 104-2131

GEAR-SUN, 21T

$

$

Not available

14

Toro 104-2132

PLATE-THRUST, PLANET

$

$

Not available

15

Toro 104-2129

GEAR-PLANET, 15T

$

$

Not available

16

Toro 104-2134

CARRIER-PLANETARY

$

$

Not available
