72051 (265-H) - Toro Lawn & Garden Tractor (SN: 220000001 - 220999999) (2002) HYDROSTATIC TRANSMISSION NO. 104-2465 CYLINDER BLOCK ASSEMBLY Parts Diagram

Lawn & Garden Tractor

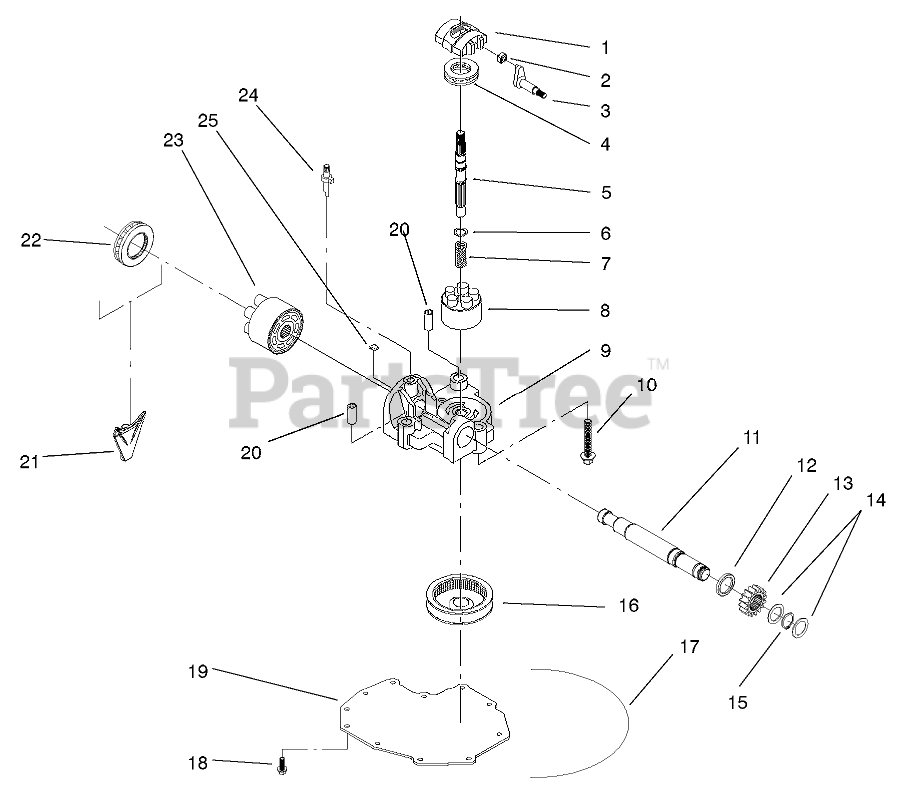

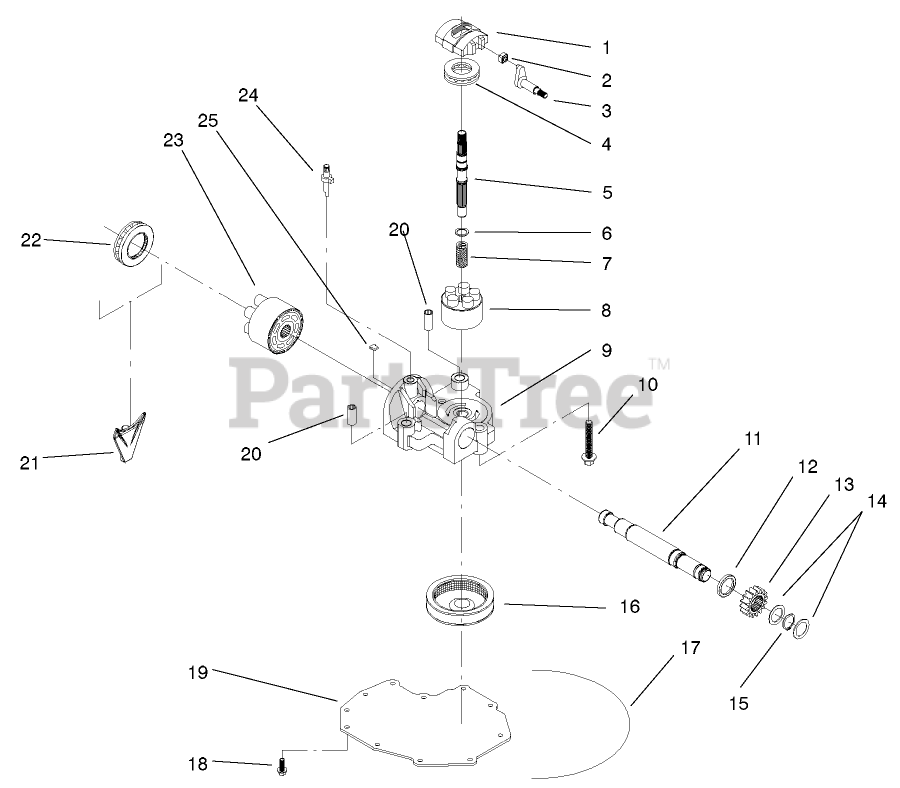

HYDROSTATIC TRANSMISSION NO. 104-2465 CYLINDER BLOCK ASSEMBLY Parts Diagram

  • Title

1

Toro 94-1907

SWASHPLATE-VARIABLE

$517.99

$

Usually ships in 3-6 days

0

2

Toro 94-1910

GUIDE-SLOT

$21.99

$

Usually ships in 3-6 days

0

3

Toro 104-2112

TRUNNION ASM

$306.99

$

Usually ships in 3-6 days

0

4

Toro 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

5

Toro 104-2105

SHAFT-INPUT

$

$

Not available

6

Toro 94-1937

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

7

Toro 94-1936

SPRING-BLOCK

$8.49

$

Usually ships in 3-6 days

0

8

Toro 104-2106

CYLINDER BLOCK ASM
(Superseded to 103-2666)

$546.99

$

Usually ships in 3-6 days

0

9

Toro 104-2103

CENTER SECTION KIT

$

$

Not available

10

Toro 94-6926

BOLT

$10.99

$

Usually ships in 3-6 days

0

11

Toro 104-2107

SHAFT-OUTPUT

$

$

Not available

12

Toro 104-2109

SPACER

$

$

Not available

13

Toro 104-2110

GEAR-PINION, 16T

$

$

Not available

14

Toro 104-2150

WASHER

$

$

Not available

15

Toro 104-2151

RING-RETAINING

$

$

Not available

16

Toro 104-2125

FILTER

$

$

Not available

17

Toro 104-2147

SEALANT

$110.99

$

Usually ships in 3-6 days

0

18

Toro 104-2120

SCREW

$7.99

$

In Stock, only 1 left!

0

19

Toro 104-2121

COVER-LOWER

$

$

Not available

20

Toro 94-1927

PIN

$25.99

$

Usually ships in 3-6 days

0

21

Toro 104-2127

RETAINER-BEARING, MOTOR

$

$

Not available

22

Toro 94-6923

BEARING-THRUST

$119.99

$

Usually ships in 3-6 days

0

23

Toro 94-1913

CYLINDER BLOCK ASM
(Superseded to 127-3867)

$226.99

$

Usually ships in 3-6 days

0

24

Toro 94-1914

ACTUATOR-BYPASS

$64.99

$

Usually ships in 3-6 days

0

25

Toro 94-6925

PLATE-BYPASS

$

$

Not available
