72051 (265-H) - Toro Lawn & Garden Tractor (SN: 220000001 - 220999999) (2002) FUEL SYSTEM ASSEMBLY Parts Diagram

Lawn & Garden Tractor

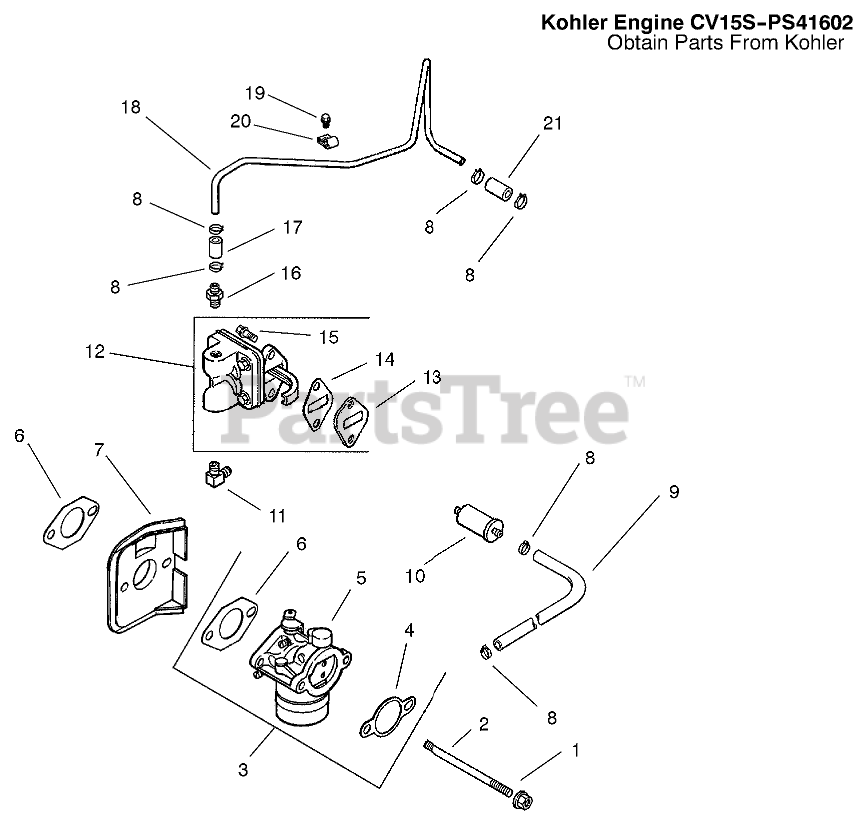

FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Kohler M-641060

Nut (M6x1.0)
(Superseded to M-641060-S)

$4.49

$

In Stock, Qty 10

0

2

Kohler M-629116

Stud M6x1.0x116
(Superseded to M-629116-S)

$3.49

$

In Stock, only 2 left!

0

3

1285382

Kit-Carburatorw/Gasket (incl. 4-6)

$

$

Not available

4

1204102

Gasket-Air Cleaner

Note: Included in a service kit or in an assembly

$

$

Not available

5

1205382

Carurator ASM

Note: Included in a service kit or in an assembly

$

$

Not available

6

1204101

Gasket-Carburetor

Note: Included in a service kit or in an assembly

$

$

Not available

7

1226504

Deflector-Heat

$

$

Not available

8

Toro 25 237 14

Clamp-Hose

$

$

Currently unavailable

9

Toro 1235310

Line-Fuel

$

$

Currently unavailable

10

2505002

Filter-Fuel

$

$

Not available

11

Kohler 25 155 02

Connector
(Superseded to 25 155 02-S)

$14.99

$

In Stock, only 1 left!

0

12

1255901

Kit-Fuel Pump (Incl. 13-15)

$

$

Not available

13

1211205

Spacer

Note: Included in a service kit or in an assembly

$

$

Not available

14

2504109

Gasket-Fuel Pump

Note: Included in a service kit or in an assembly

$

$

Not available

15

Kohler M-645020

Screw-HF (M6x1.0x20)
(Superseded to M-645020-S)

Note: Included in a service kit or in an assembly

$2.49

$

In Stock, only 1 left!

0

16

Toro 25 326 03

Connector-Straight

$

$

Currently unavailable

17

1235301

Line-Fuel

$

$

Not available

18

1212319

Line-Fuel

$

$

Not available

19

Kohler M-545010

Screw (M5x0.8x10)
(Superseded to M-545010-S)

$4.49

$

In Stock, only 3 left!

0

20

1215401

Clip, tube

$

$

Not available

21

2535302

Line-Fuel 3"

$

$

Not available

1275702

Kit-Float

Note: Not illustrated

$

$

Not available

1275703

Kit-Carburetor Repair

Note: Not illustrated

$

$

Not available
