72051 (265-H) - Toro Lawn & Garden Tractor (SN: 220000001 - 220999999) (2002) CYLINDER HEAD, VALVE AND BREATHER ASSEMBLY Parts Diagram

Lawn & Garden Tractor

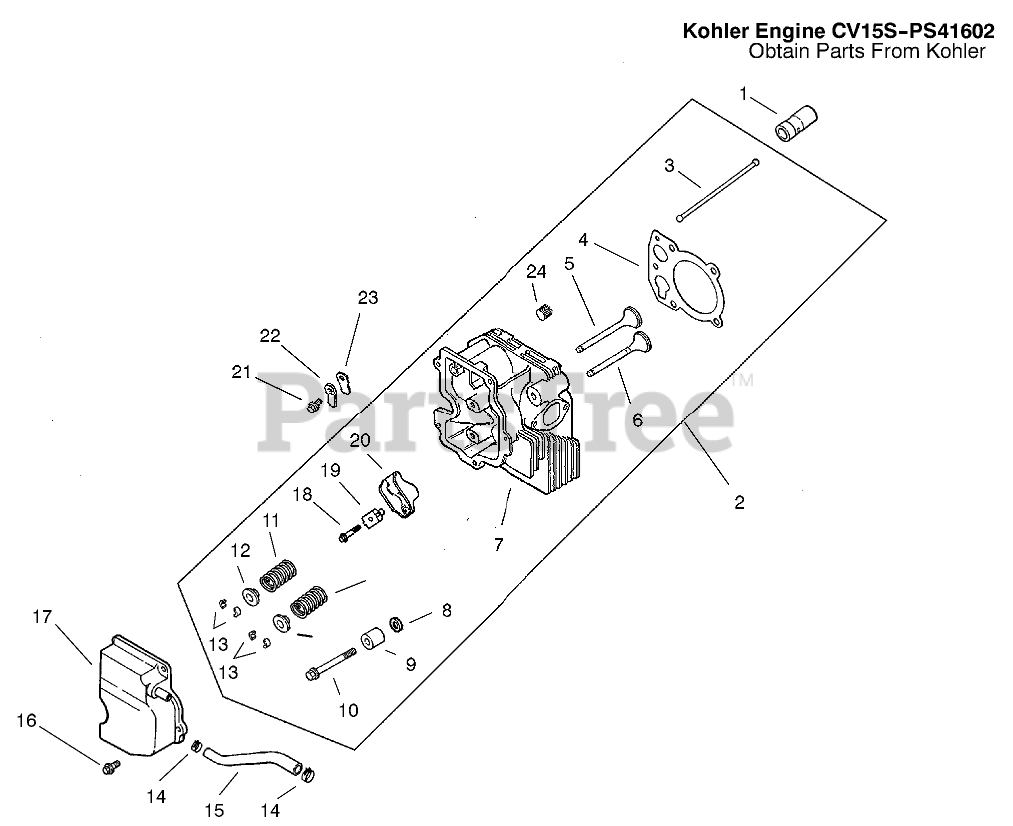

CYLINDER HEAD, VALVE AND BREATHER ASSEMBLY Parts Diagram

  • Title

1

Kohler 25 351 01

Lifter-Valve
(Superseded to 25 351 10-S)

$23.99

$

In Stock, Qty 6

0

2

1275581

gasket)

$

$

Not available

3

1241101

Rod-Push

$

$

Not available

4

1204110

Gasket-Cylinder Head

$

$

Not available

5

1201701

Valve-Intake STD

$

$

Not available

5

1201702

Valve-Intake .25

Note: Not illustrated

$

$

Not available

6

1201601

Valve-Exhaust STD

$

$

Not available

6

1201602

Valve-Exhaust .25

Note: Not illustrated

$

$

Not available

7

1231819

Head-Cylinder

$

$

Not available

8

1246805

Washer

$

$

Not available

9

1211213

Spacer-Head Bolt

$

$

Not available

10

1208615

Screw M10x1.5x80

$

$

Not available

11

1208901

Spring-Valve

$

$

Not available

12

Kohler 12 173 01

Cap-Spring, Valve
(Superseded to 25 173 28-S)

$8.49

$

In Stock, Qty 9

0

13

Kohler 12 755 03

Retainer Kit
(Superseded to 12 755 03-S)

$5.99

$

In Stock, only 3 left!

0

14

Toro 25 237 14

Clamp-Hose

$

$

Currently unavailable

15

1232603

Hose-Breather

$

$

Not available

16

Kohler M-645020

Screw-HF (M6x1.0x20)
(Superseded to M-645020-S)

$2.49

$

In Stock, only 1 left!

0

17

1209607

Cover-Valve w/Nipple

$

$

Not available

18

Kohler M-640034

Screw-HF (M6x1.0x34)
(Superseded to M-640034-S)

$2.49

$

In Stock, Qty 18

0

19

1259903

Pivot-Rocker Arm

$

$

Not available

20

Kohler 25 186 01

Arm-Rocker
(Superseded to 25 186 01-S)

$12.99

$

In Stock, only 3 left!

0

21

Kohler M-545010

Screw (M5x0.8x10)
(Superseded to M-545010-S)

$4.49

$

In Stock, only 2 left!

0

22

Kohler 12 018 01

Retainer-Reed
(Superseded to 66 018 04-S)

$4.99

$

In Stock, Qty 6

0

23

2440202

Reed-Breather

$

$

Not available

24

Kohler X-75-23

Plug
(Superseded to X-75-23-S)

$3.49

$

In Stock, only 2 left!

0

1204101

Gasket-Carburetor

Note: Not illustrated

$

$

Not available

1204102

Gasket-Air Cleaner

Note: Not illustrated

$

$

Not available

1204103

Gasket-Exhaust

Note: Not illustrated

$

$

Not available
