72051 (265-H) - Toro Lawn & Garden Tractor (SN: 220000001 - 220999999) (2002) BLOWER HOUSING & BAFFLES ASSEMBLY Parts Diagram

Lawn & Garden Tractor

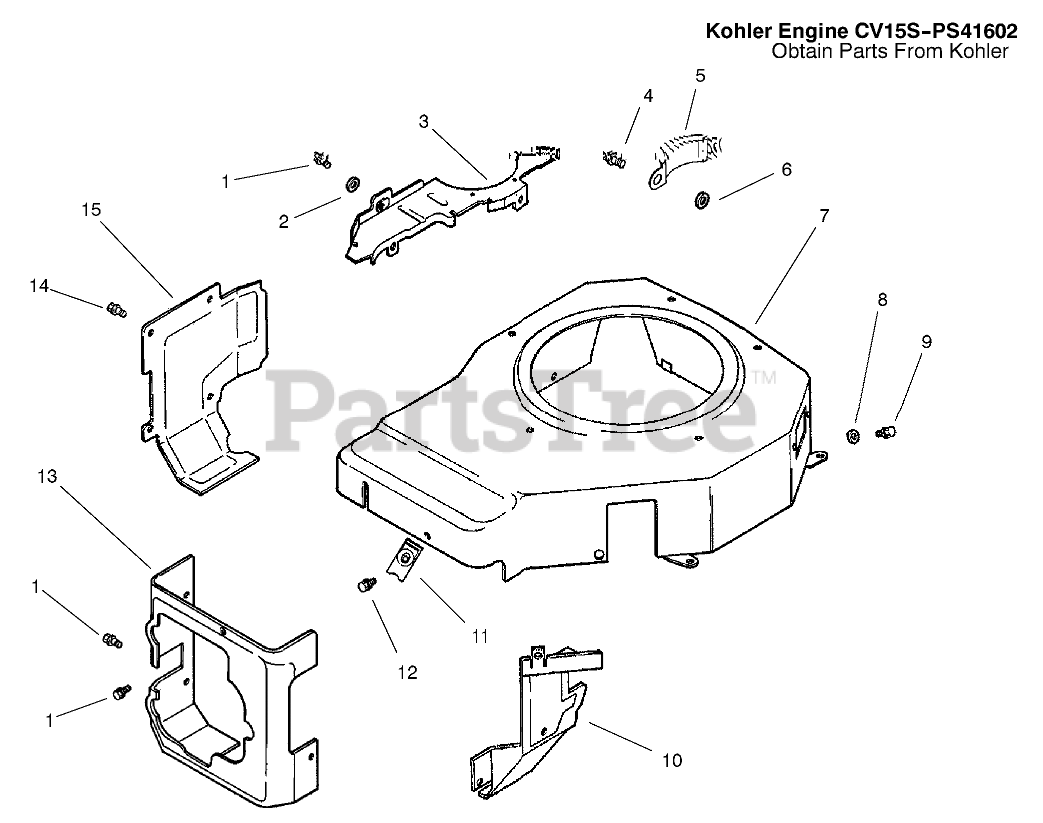

BLOWER HOUSING & BAFFLES ASSEMBLY Parts Diagram

  • Title
1

Kohler M-545010

Screw (M5x0.8x10)
(Superseded to M-545010-S)

$4.49

$

In Stock, only 2 left!

0

2

2446810

Washer

$

$

Not available

3

1214607

Plate-Blower Housing

$

$

Not available

4

Kohler M-645016

Screw-HHF
(Superseded to M-645016-S)

$3.99

$

In Stock, Qty 14

0

5

2409605

Cover-Pinion

$

$

Not available

6

Kohler 220534

Washer
(Superseded to 220534-S)

$5.49

$

In Stock, Qty 5

0

7

1202755

Housing-Blower

$

$

Not available

8

Kohler X-25-92

Washer
(Superseded to X-25-92-S)

$2.49

$

In Stock, only 2 left!

0

9

Kohler 24 086 18

Screw
(Superseded to 24 086 18-S)

$2.49

$

Usually ships in 2-5 days

0

10

1206305

Baffle-Carburetor

$

$

Not available

11

2515402

Clip

$

$

Not available

12

1208637

Screw M5x0.8x20

$

$

Not available

13

1206308

Baffle-Cyl. Head

$

$

Not available

14

Kohler M-550010

Screw-Hex, Flange
(Superseded to M-550010-S)

$3.99

$

In Stock, only 1 left!

0

15

1206301

Baffle-Cylinder

$

$

Not available
