72051 (265-H) - Toro Lawn & Garden Tractor (SN: 210000001 - 210999999) (2001) OIL PAN AND LUBRICATION ASSEMBLY Parts Diagram

Lawn & Garden Tractor

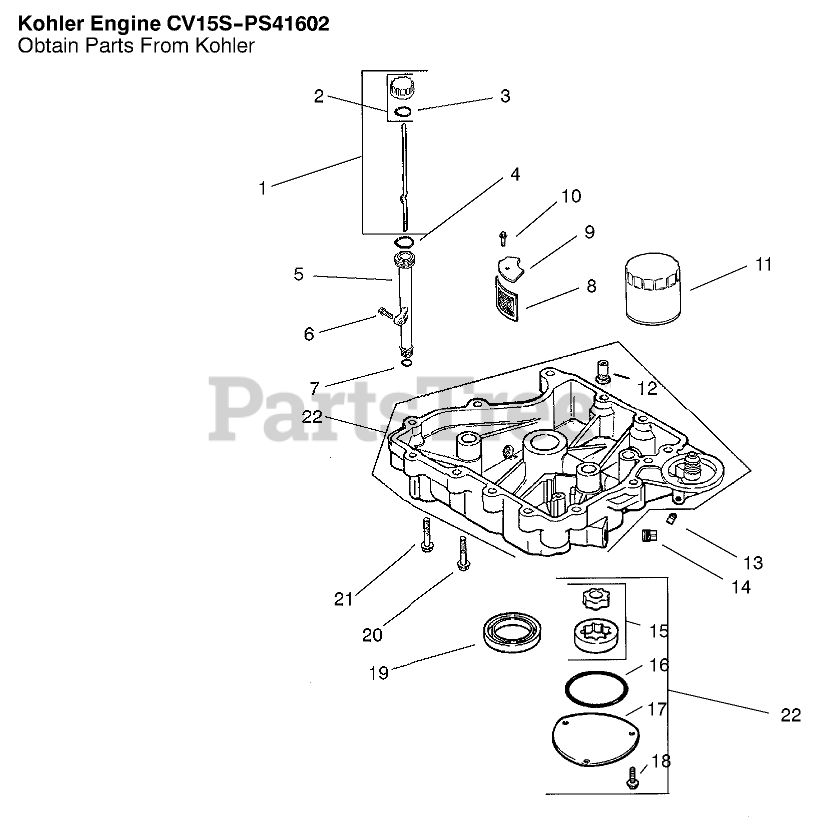

OIL PAN AND LUBRICATION ASSEMBLY Parts Diagram

  • Title

1

1203801

Dipstick (Incl. 2-3)

$

$

Not available

2

2575513

Kit-Oil Fill Cap (Incl. 3)

Note: Included in a service kit or in an assembly

$

$

Not available

3

1215303

"O"Ring

Note: Included in a service kit or in an assembly

$

$

Not available

4

1215302

"O"Ring

$

$

Not available

5

1212304

Tube-Oil Fill

$

$

Not available

6

Kohler M-645025

Screw
(Superseded to M-645025-S)

$2.49

$

In Stock, only 3 left!

0

7

1215301

"O"Ring

$

$

Not available

8

1216207

Screen-Oil Pickup

$

$

Not available

9

1209603

Cover-Oil Screen

$

$

Not available

10

Kohler M-545016

Screw-HHF (M5x0.8x16)
(Superseded to M-545016-S)

$2.49

$

In Stock, Qty 15

0

11

Kohler 12 050 01

Filter-Oil
(Superseded to 12 050 01-S)

$13.99

$

In Stock, Qty 20+

0

12

2546209

Valve-Oil Pressure

$

$

Not available

13

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

$2.49

$

In Stock, only 3 left!

0

14

Kohler X-75-1

Plug-SH 1/8
(Superseded to X-75-1-S)

$3.49

$

In Stock, only 1 left!

0

15

1239301

Pump-Oil

$

$

Not available

16

1215306

O-ring-Oil Pump

$

$

Not available

17

1209634

Cover-Oil Pump

$

$

Not available

18

Kohler M-545016

Screw-HHF (M5x0.8x16)
(Superseded to M-545016-S)

$2.49

$

In Stock, Qty 15

0

19

1203203

Seal-Crankshaft

$

$

Not available

20

Kohler 24 086 16

Screw
(Superseded to 24 086 17-S)

$2.49

$

In Stock, Qty 5

0

21

Kohler 24 086 17

Screw
(Superseded to 24 086 17-S)

$2.49

$

In Stock, Qty 5

0

22

1219950

Pan-Oil

$

$

Not available
