72051 (265-H) - Toro Lawn & Garden Tractor (SN: 210000001 - 210999999) (2001) ENGINE CONTROLS ASSEMBLY Parts Diagram

Lawn & Garden Tractor

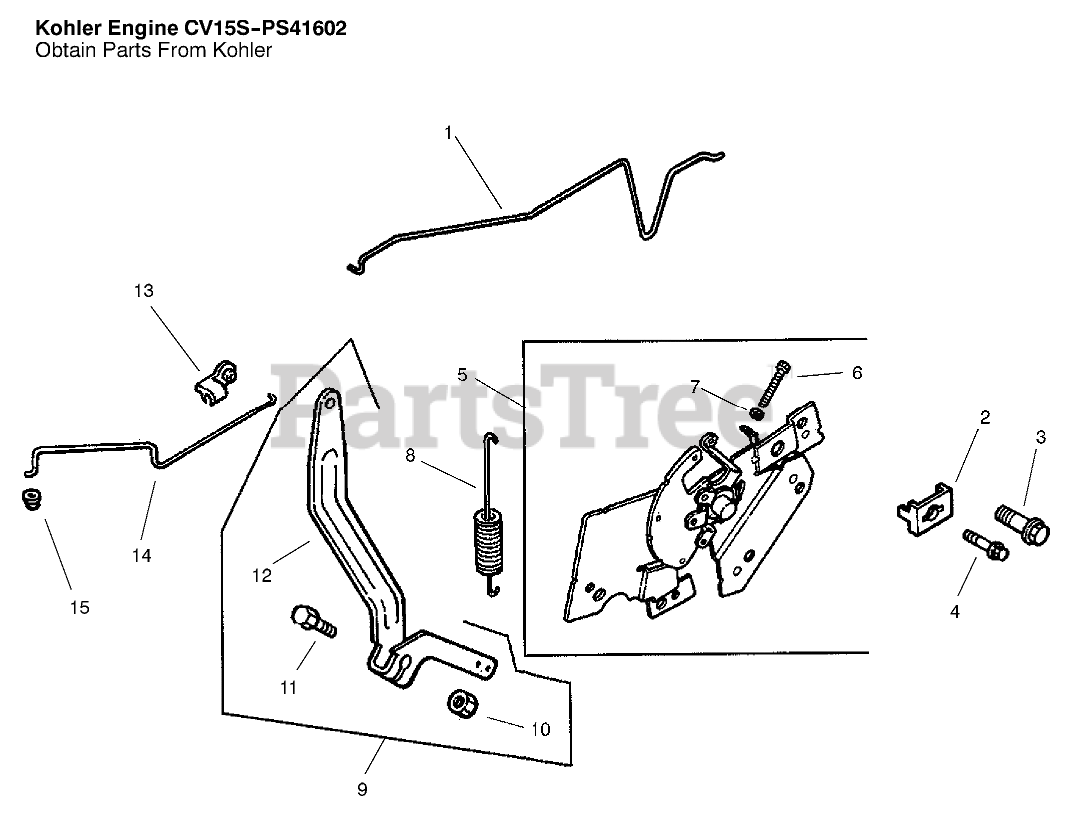

ENGINE CONTROLS ASSEMBLY Parts Diagram

  • Title

1

1207907

Linkage Choke

$

$

Not available

2

Kohler 12 237 01

Clamp
(Superseded to 12 237 01-S)

$3.49

$

In Stock, Qty 5

0

3

Kohler M-545016

Screw-HHF (M5x0.8x16)
(Superseded to M-545016-S)

$2.49

$

In Stock, Qty 15

0

4

Kohler M-664020

Screw-Lobe Socket
(Superseded to M-664020-S)

$2.49

$

In Stock, only 2 left!

0

5

1253602

Control-Speed ASM

$

$

Not available

6

Kohler M-401030

Screw-HH
(Superseded to M-401030-S)

Note: Included in a service kit or in an assembly

$3.49

$

In Stock, Qty 9

0

7

Kohler M-446030

Nut-Hex
(Superseded to M-446030-S)

Note: Included in a service kit or in an assembly

$2.49

$

In Stock, only 4 left!

0

8

5208907

Spring-Governor

$

$

Not available

9

1275583

Set-Gasket

$

$

Not available

10

1210007

Nut

$

$

Not available

11

5221104

Bolt

$

$

Not available

12

1209028

Lever-Governor

$

$

Not available

13

Kohler 25 158 11

Bushing-Linkage
(Superseded to 25 158 11-S)

$5.99

$

In Stock, only 2 left!

0

14

1207901

Linkage-Throttle

$

$

Not available

15

Kohler 25 158 08

Bushing-Linkage
(Superseded to 25 158 08-S)

$5.99

$

In Stock, Qty 18

0
