72051 (265-H) - Toro Lawn & Garden Tractor (SN: 210000001 - 210999999) (2001) CRANKCASE ASSEMBLY Parts Diagram

Lawn & Garden Tractor

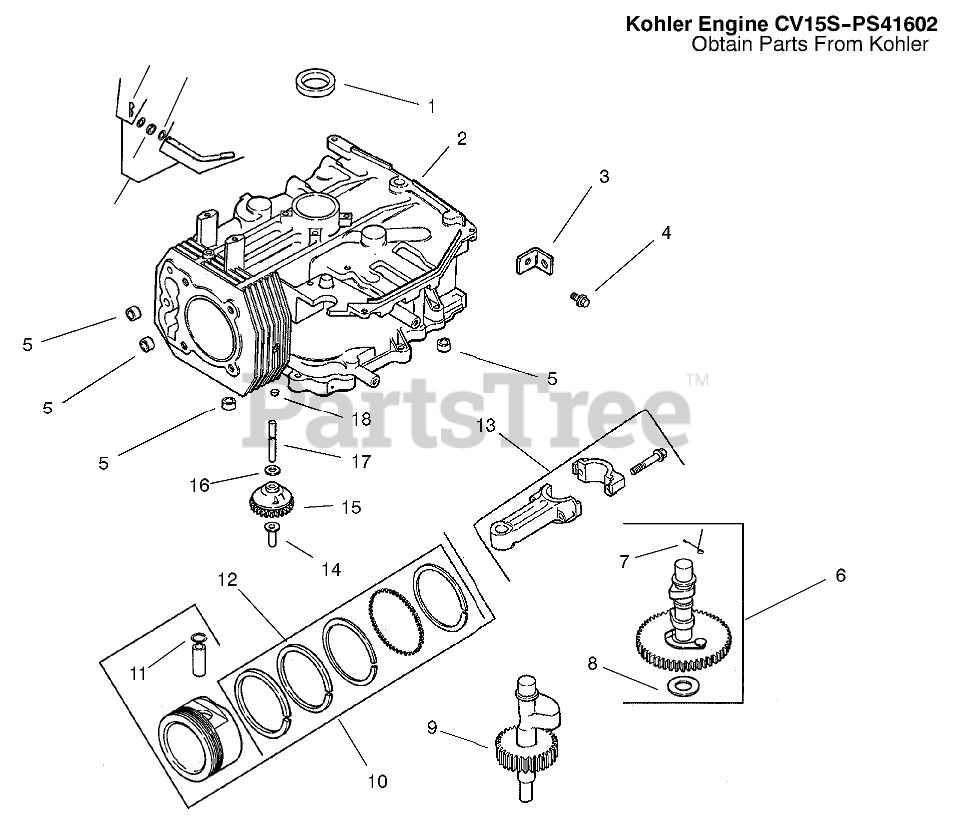

CRANKCASE ASSEMBLY Parts Diagram

  • Title

1

1203203

Seal-Crankshaft

$

$

Not available

2

Kohler 12 522 18

Block-Short

$1933.99

$

Usually ships in 2-5 days

0

3

1244502

Strap-Lifting

$

$

Not available

4

Kohler M-839025

Screw M8x1.25x25
(Superseded to M-839025-S)

$2.49

$

Usually ships in 2-5 days

0

5

1238017

Dowel-Locating

$

$

Not available

6

1275549

Kit-Camshaft (Incl.

$

$

Not available

7

1208931

Spring-Actuating

Note: Included in a service kit or in an assembly

$

$

Not available

8

Kohler 12 422 07

Shim-Camshaft
(Superseded to 12 422 07-S)

Note: Included in a service kit or in an assembly

$4.49

$

Usually ships in 2-5 days

0

8

Kohler 12 422 08

Shim-Camshaft
(Superseded to 12 422 08-S)

Note: Included in a service kit or in an assembly

$2.49

$

In Stock, only 2 left!

0

8

Kohler 12 422 09

Shim-Camshaft
(Superseded to 12 422 09-S)

Note: Included in a service kit or in an assembly

$2.49

$

In Stock, only 1 left!

0

8

Kohler 12 422 10

Shim-Camshaft
(Superseded to 12 422 10-S)

Note: Included in a service kit or in an assembly

$2.49

$

In Stock, only 1 left!

0

8

Kohler 12 422 11

Shim-Camshaft
(Superseded to 12 422 11-S)

Note: Included in a service kit or in an assembly

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 12 422 12

Shim-Camshaft
(Superseded to 12 422 12-S)

Note: Included in a service kit or in an assembly

$2.99

$

Usually ships in 2-5 days

0

8

Kohler 12 422 13

Shim-Camshaft
(Superseded to 12 422 13-S)

Note: Included in a service kit or in an assembly

$2.99

$

Usually ships in 2-5 days

0

9

1214427

Shaft-Balance

$

$

Not available

10

1287407

Piston ASM-STD (Incl.11-12)

$

$

Not available

10

1287408

Piston ASM .25 Incl 11-2

$

$

Not available

10

1287409

Piston ASM .50 Incl 11-2

$

$

Not available

10

1287411

Piston ASM .08 Incl11-12

$

$

Not available

11

1201802

Retainer-Piston Pin

Note: Included in a service kit or in an assembly

$

$

Not available

12

1210807

Ring Set STD

Note: Included in a service kit or in an assembly

$

$

Not available

12

1210808

Ring Set .25

Note: Included in a service kit or in an assembly

$

$

Not available

12

1210809

Ring Set .50

Note: Included in a service kit or in an assembly

$

$

Not available

13

1206705

Rod Connecting STD

$

$

Not available

13

1206706

Rod Connecting .25

$

$

Not available

14

Kohler 12 380 01

Pin-Governor
(Superseded to 12 380 01-S)

$3.49

$

In Stock, Qty 11

0

15

1204305

Gear, governor

$

$

Not available

16

Kohler M-631005

Washer
(Superseded to M-631005-S)

$2.49

$

In Stock, only 1 left!

0

17

Kohler 12 144 02

Shaft-Gear, Governor
(Superseded to 12 144 02-S)

$4.49

$

In Stock, Qty 8

0

18

Kohler 52 139 09

Plug
(Superseded to 52 139 09-S)

$4.99

$

In Stock, only 3 left!

0

1275582

Gasket Set

Note: Not illustrated

$

$

Not available

19

1275564

Kit-Governor Cross

$

$

Not available

20

Kohler X-25-102

Washer
(Superseded to X-25-102-S)

$2.49

$

In Stock, Qty 6

0

21

1203201

Seal-Cross Shaft

$

$

Not available

22

Kohler M-631015

Washer
(Superseded to M-631015-S)

$2.49

$

In Stock, Qty 8

0

23

1215405

Clip-Hitch Pin

$

$

Not available
