72050 (265-H) - Toro Lawn & Garden Tractor (SN: 200000001 - 200999999) (2000) SINGLE CYLINDER ENGINE, MUFFLER, & PTO ASSEMBLY Parts Diagram

Lawn & Garden Tractor

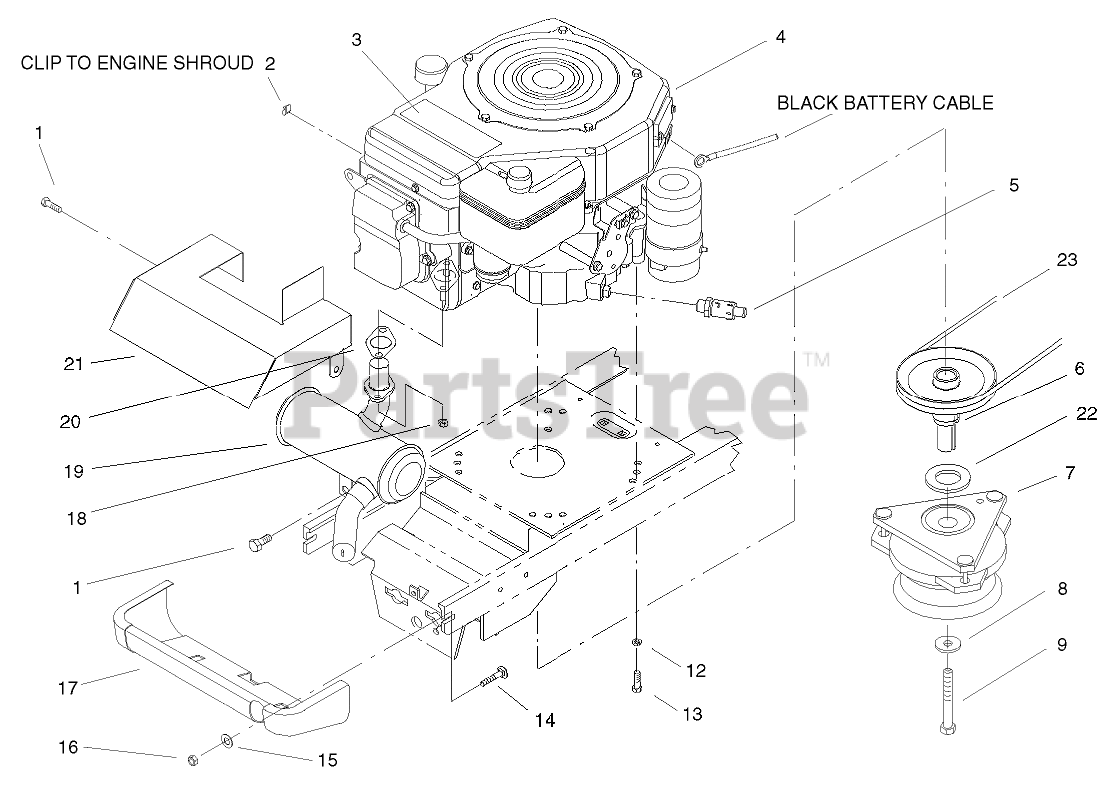

SINGLE CYLINDER ENGINE, MUFFLER, & PTO ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

2

Toro 702366

CLIP-RETAINER, WIRE

$

$

Not available

3

Toro 94-2970

DECAL - LOGO

$

$

Not available

4

Toro 95-3042

Engine-Kohler 15 Int-l (only on: 72071)

$

$

Currently unavailable

4

Toro 95-3041

Engine-Kohler 15 (only on: 72050)

$

$

Not available

5

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 2 left!

0

6

Toro 92-6888

PULLEY-ENGINE

$199.99

$

Usually ships in 3-6 days

0

7

Toro 100-6059

Clutch-PTO (only on: 72050)
(Superseded to 103-9950)

$491.99

$

Usually ships in 3-6 days

0

7

Toro 100-6060

Clutch-Elec PTO (only on: 72071)

$

$

Not available

8

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

9

Toro 9114466

SCREW-HH

$90.99

$

Usually ships in 3-6 days

0

12

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 33114-030

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

14

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 100-3541-01

MUFFLER SHIELD ASM

$

$

Not available

18

Toro 92-6780

NUT-HF
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 11

0

19

Toro 98-1761

MUFFLER

$424.99

$

Usually ships in 3-6 days

0

20

Toro 92-6716

Gasket-Exhaust

$

$

Not available

21

Toro 92-6878-03

SHIELD-MUFFLER

$115.99

$

Usually ships in 3-6 days

0

22

Toro 100-1340

SPACER-CLUTCH

$23.99

$

In Stock, only 1 left!

0

23

Toro 100-3469

V-BELT

$130.99

$

In Stock, only 4 left!

0
