72050 (265-H) - Toro Lawn & Garden Tractor (SN: 200000001 - 200999999) (2000) AIR INTAKE/FILTRATION Parts Diagram

Lawn & Garden Tractor

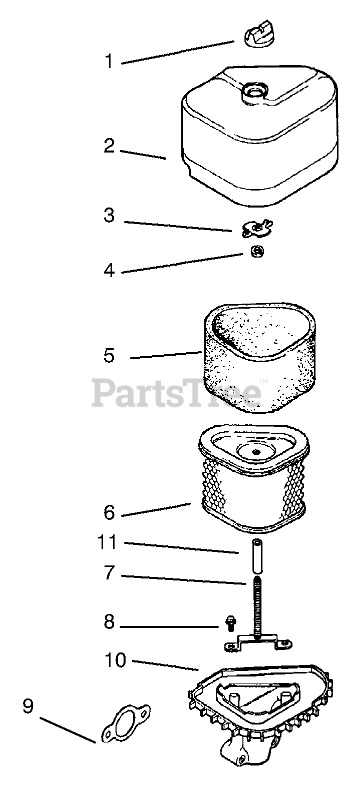

AIR INTAKE/FILTRATION Parts Diagram

  • Title

1

2534103

Knob-Air Cleaner Cover (Only On: 92003, 92043)

$

$

Not available

2

1209645

Cover-Air Cleaner (Only On: 92003, 92043)

$

$

Not available

3

Kohler 12 100 01

Nut-Wing (Only On: 92003, 92043)
(Superseded to 12 100 01-S)

$3.99

$

In Stock, only 2 left!

0

4

Kohler X-25-63

Washer-Flat (Only On: 92003, 92043)
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 3 left!

0

5

Kohler 12 083 05

Element-Air Cleaner Incl 11 (Only On: 92003, 92043)
(Superseded to 12 083 05-S)

$19.99

$

In Stock, Qty 6

0

6

1208308

Precleaner-Element (Only On: 92003, 92043)

$

$

Not available

7

1207205

Stud-Mounting Plate (Only On: 92003, 92043)

$

$

Not available

8

1208601

Screw-Mounting Plate (Only On: 92003, 92043)

$

$

Not available

9

1204102

Gasket-Air Cleaner (Only On: 92003, 92043)

$

$

Not available

10

1209405

Base-Air Cleaner Incl 7 (Only On: 92003, 92043)

$

$

Not available

11

1203210

Seal (Only On: 92003, 92043)

$

$

Not available

Kohler 12 113 04

Decal-Air Cleaner (Only On: 92003, 92043)
(Superseded to 12 113 04-S)

Note: Not illustrated

$2.49

$

In Stock, only 1 left!

0

1274304

Kit-Air Cleaner Incl 1-11 (Only On: 92003, 92043)

Note: Not illustrated

$

$

Not available
