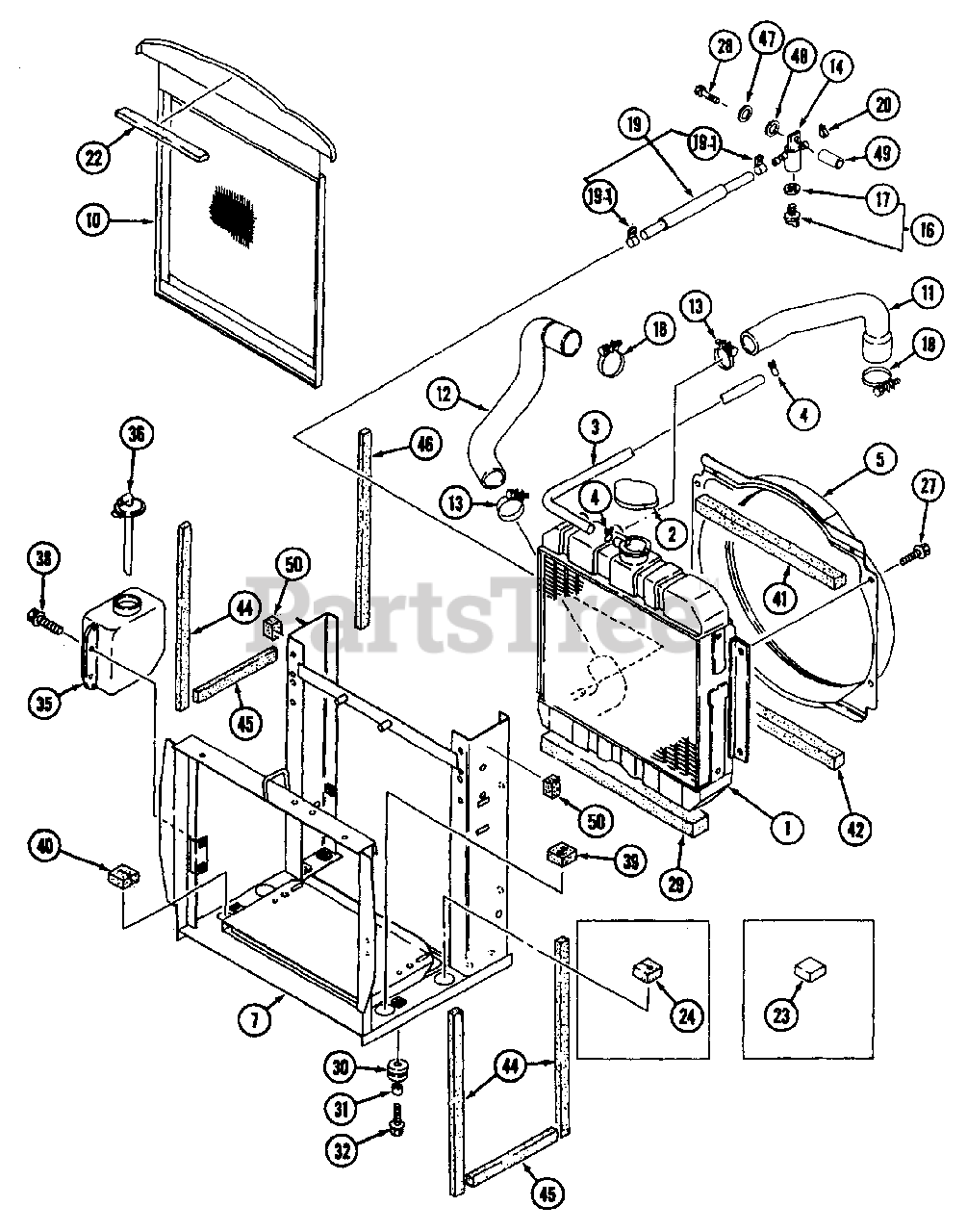

7205 (54A-443D100) - Cub Cadet Compact Tractor Radiator - Gear Type Parts Diagram

Compact Tractor

Radiator - Gear Type Parts Diagram

  • Title

Cub Cadet MA-19630411000

Radiator

Note: Includes Items 1 - 4

$

$

Not available

1

Cub Cadet MA-19630411100

Body, Radiator
(Superseded to MA-19630411000)

$

$

Not available

2

Cub Cadet MA-68201-01813

Cap

$88.99

$

In Stock, only 2 left!

0

3

Cub Cadet MA-19640411200

Hose, Rubber

$

$

Not available

4

Cub Cadet MA-68201-01814

Clip

$

$

Not available

5

Cub Cadet MA-19670421AG0

Shroud Fan

$

$

Not available

7

Cub Cadet MA-19670413AG1

Bracket, Radiator

$

$

Not available

Cub Cadet MA-19670413AG2

Bracket, Radiator

Note: Replaces MA-19670413AG1 when inventory is depleted

$

$

Not available

10

Cub Cadet MA-19670416AG0

Net Radiator

$175.99

$

In Stock, only 1 left!

0

11

Cub Cadet MA-10380416000

Hose, Upper

$61.99

$

Usually ships in 3-6 days

0

12

Cub Cadet MA-10320417000

Hose, Outlet

$

$

Not available

13

Cub Cadet MA-00501100380

Clamp, Hose

$

$

Not available

14

Cub Cadet MA-11740415000

Joint, Water

$

$

Not available

16

Cub Cadet MA-67401A00113

Water Cock Ass'y.

$

$

Not available

17

Cub Cadet MA-67401-00114

Gasket

$6.49

$

Usually ships in 3-6 days

0

18

Cub Cadet MA-00501100450

Clamp, Hose

$

$

Not available

19

Cub Cadet MA-19630422001

Hose, Drain Ass'y
(Superseded to MA-19630422101)

Note: Includes 19 & 19-1

$

$

Not available

19-1

Cub Cadet MA-69501-06613

Clamp

$

$

Not available

20

Cub Cadet MA-00504112005

Clamp, Hose

$9.49

$

In Stock, Qty 12

0

22

Cub Cadet MA-10303531000

Rubber B

$

$

Not available

23

Cub Cadet MA-19630426000

Cushion (Gear)

$

$

Not available

24

Cushion (HST)

Note: Not used on this product

$

$

Not available

27

Cub Cadet MA-H1840108020

Bolt

$

$

Not available

28

Cub Cadet MA-A0540108095

Bolt

$

$

Not available

29

Cub Cadet MA-11912638000

Cushion

$

$

Not available

30

Cub Cadet MA-11930439000

Grommet

$

$

Not available

31

Cub Cadet MA-67700-26000

Collar

$

$

Not available

32

Cub Cadet MA-H1540108030

Bolt

$

$

Not available

Cub Cadet MA-19080445000

Sub Tank Ass'y.

Note: Includes 35 & 36

$

$

Not available

35

Cub Cadet MA-19080445100

Tank, Sub

$42.99

$

In Stock, only 3 left!

0

36

Cub Cadet MA-19080445200

Cap Ass'y.

$

$

Not available

38

Cub Cadet MA-H1440106016

Bolt

$3.49

$

Usually ships in 3-6 days

0

39

Cub Cadet MA-19630424000

Cushion

$

$

Not available

40

Cub Cadet MA-19630425000

Cushion

$

$

Not available

41

Cub Cadet MA-35187645500

Seal

$

$

Not available

42

Cub Cadet MA-35080771000

Rubber

$

$

Not available

44

Cub Cadet MA-19630431000

Cushion

$

$

Not available

45

Cub Cadet MA-19630432000

Cushion

$

$

Not available

46

Cub Cadet MA-19630434000

Cushion

$

$

Not available

47

Cub Cadet MA-A3600100802

Washer

$

$

Not available

48

Cub Cadet MA-03500140818

Washer

$

$

Not available

49

Cub Cadet MA-10312574000

Collar

$

$

Not available

50

Cub Cadet MA-10212677000

Cushion B

$

$

Not available
