7205 (54A-443D100) - Cub Cadet Compact Tractor Lubricating Parts Parts Diagram

Compact Tractor

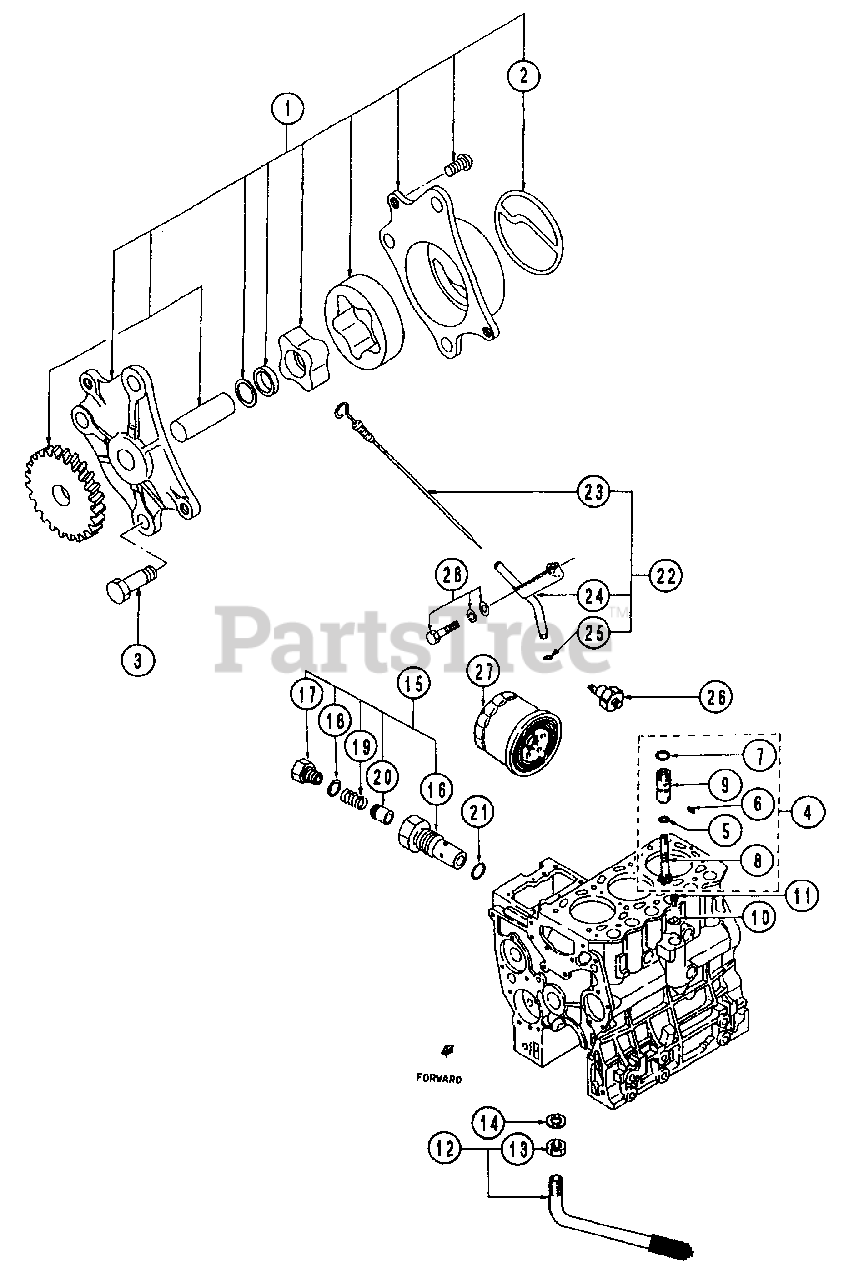

Lubricating Parts Parts Diagram

  • Title

1

Cub Cadet MA-31A35-30010

Pump Ass'y, Oil

$

$

Not available

2

Cub Cadet MA-31A35-02300

Packing, Body

$

$

Not available

3

Cub Cadet MA-F1035-08022

Bolt

$

$

Not available

4

Cub Cadet MA-MM430598

Driven Unit
(Superseded to MA-MM43059801)

$

$

Not available

5

Cub Cadet MA-MD701788

O-Ring

$

$

Not available

6

Cub Cadet MA-MF472535

Pin, Spring
(Superseded to MA-05500003014)

$

$

Not available

7

Cub Cadet MA-MF520012

O-Ring
(Superseded to MA-08300100180)

$

$

Not available

8

Cub Cadet MA-MM407171

Gear
(Superseded to MA-MM43059801)

$

$

Not available

9

Cub Cadet MA-MM430419

Sleeve

$

$

Not available

10

Cub Cadet MA-MD701789

Plate

$

$

Not available

11

Cub Cadet MA-F1440106012

Bolt, W/Washer

$

$

Not available

12

Cub Cadet MA-31A35-05040

Strainer Ass'y

$

$

Not available

13

Cub Cadet MA-MF430729

Nut, Jam

$

$

Not available

14

Cub Cadet MA-MF660036

Gasket

$

$

Not available

15

Cub Cadet MA-32A36-0510

Valve Ass'y., Relief

$

$

Currently unavailable

16

Housing, Valve

$

$

Not available

17

Plug

$

$

Not available

18

Gasket

$

$

Not available

19

Spring, Relief

$

$

Not available

20

Plunger, Relief

$

$

Not available

21

Cub Cadet MA-F4202-22000

Gasket

$

$

Not available

22

Gage & Guide Ass'y.

Note: Furnish Component Parts

$

$

Not available

23

Cub Cadet MA-31B42-01500

Gauge Ass'y., Oil Level

$

$

Not available

24

Cub Cadet MA-31B42-01600

Guide, Oil Level

$

$

Not available

25

Cub Cadet MA-MF520004

O-Ring
(Superseded to MA-08300100090)

$

$

Not available

26

Cub Cadet MA-31A90-00300

Switch, Oil

$

$

Not available

27

Cub Cadet MA-MD134953

Filter Ass'y.
(Superseded to MA-31A40-02101)

$36.99

$

Usually ships in 3-6 days

0

28

Cub Cadet MA-F1540108016

Bolt, W/Washer

$

$

Not available
