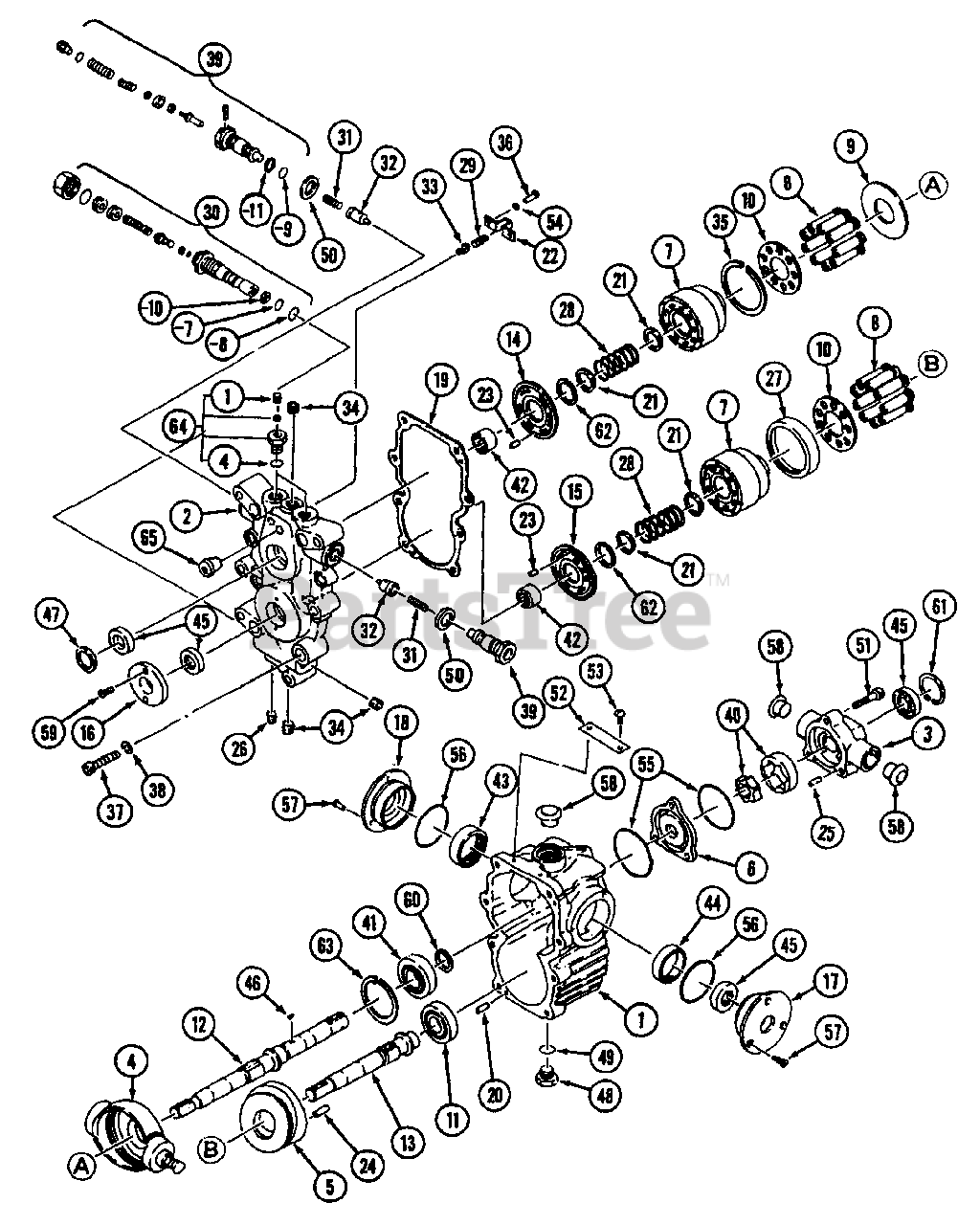

7205 (54A-443D100) - Cub Cadet Compact Tractor Hydrostatic (Part 3) Parts Diagram

Compact Tractor

Hydrostatic (Part 3) Parts Diagram

  • Title

1

Cub Cadet MA-19631301110

Case

$

$

Not available

2

Cub Cadet MA-19631301120

Block Port

$

$

Not available

3

Charge Pump Case

$

$

Not available

4

Cub Cadet MA-19631301170

Swash Plate

$822.99

$

Usually ships in 3-6 days

0

5

Swash Plate

$

$

Not available

6

Cub Cadet MA-19631301210

Plate

$

$

Not available

7

Cylinder Block

$

$

Not available

8

Piston S/A

$

$

Not available

9

Cub Cadet MA-19631301230

Plate, Thrust

$

$

Not available

10

Cub Cadet MA-19631301190

Plate, Retainer

$

$

Not available

11

Cub Cadet MA-19631301240

Bearing, Ball

$

$

Not available

12

Cub Cadet MA-19631301250

Shaft

$

$

Not available

13

Cub Cadet MA-19631301260

Shaft

$

$

Not available

14

Cub Cadet MA-19631301270

Plate, Valve

$

$

Not available

15

Cub Cadet MA-19631301280

Plate, Valve

$

$

Not available

16

Cub Cadet MA-19631301290

Flange

$

$

Not available

17

Cover

$

$

Not available

18

Cover B

$

$

Not available

19

Cub Cadet MA-19631301340

Gasket

$48.99

$

Usually ships in 3-6 days

0

20

Cub Cadet MA-19631301360

Pin

$15.99

$

Usually ships in 3-6 days

0

21

Holder, Spring

$

$

Not available

22

Cub Cadet MA-19631301370

Holder, Spring

$

$

Not available

23

Cub Cadet MA-19631301380

Pin

$

$

Not available

24

Cub Cadet MA-19631301390

Pin

$

$

Not available

25

Cub Cadet MA-19631301410

Pin

$

$

Not available

26

Cub Cadet MA-19631301420

Plug

$

$

Not available

27

Holder, Retainer

$

$

Not available

28

Spring

$

$

Not available

29

Cub Cadet MA-19631301430

Spring

$

$

Not available

30

Cub Cadet MA-19631301440

Valve S/A

Note: Includes 30-7,30-8,30-10

$

$

Not available

30-7

Cub Cadet MA-08300100120

O-Ring
(Superseded to MA-08301100120)

$

$

Not available

30-8

Cub Cadet MA-08301100180

O-Ring

$

$

Not available

30-10

Cub Cadet MA-08320100120

Ring, Back Up

$

$

Not available

31

Cub Cadet MA-19631301450

Spring

$

$

Not available

32

Cub Cadet MA-19631301460

Poppet

$

$

Not available

33

Cub Cadet MA-19631301470

Valve

$

$

Not available

34

Cub Cadet MA-19631301480

Plug

$

$

Not available

35

Cub Cadet MA-19631301490

Ring, Snap

$

$

Not available

36

Cub Cadet MA-A5440706010

Bolt

$

$

Not available

37

Cub Cadet MA-A5440710040

Bolt

$

$

Not available

38

Cub Cadet MA-A3600101002

Washer, Spring

$

$

Not available

39

Cub Cadet MA-19631301510

Valve S/A

Note: Includes 39-9,39-11

$

$

Not available

39-9

Cub Cadet MA-08300100140

O-Ring

$

$

Not available

39-11

Cub Cadet MA-08320100140

Ring, Back Up

$

$

Not available

40

Trochoid Rotor

$

$

Not available

41

Cub Cadet MA-19631301520

Bearing, Ball

$

$

Not available

42

Cub Cadet MA-19631301530

Bearing, Needle

$

$

Not available

43

Bearing, Needle

$

$

Not available

44

Bush

$

$

Not available

45

Cub Cadet MA-19631301140

Seal, Oil

$127.99

$

Usually ships in 3-6 days

0

46

Cub Cadet MA-19631301150

Key

$

$

Not available

47

Cub Cadet MA-19631301610

Bush

$

$

Not available

48

Cub Cadet MA-19631301620

Plug

$

$

Not available

49

Cub Cadet MA-08301100140

O-Ring

$

$

Not available

50

Cub Cadet MA-19631301350

Washer, Seal

$

$

Not available

51

Cub Cadet MA-A5440708035

Bolt

$

$

Not available

52

Plate, Name

$

$

Not available

53

Screw, Drive

$

$

Not available

54

Cub Cadet MA-A3600100602

Washer, Spring

$

$

Not available

55

Cub Cadet MA-19631301160

O-Ring

$15.99

$

In Stock, only 2 left!

0

56

Cub Cadet MA-08300200550

O-Ring

$

$

Not available

57

Cub Cadet MA-A2220105012

Screw

$

$

Not available

58

Cub Cadet MA-19631301550

Plug

$

$

Not available

59

Cub Cadet MA-A2220105014

Screw

$

$

Not available

60

Cub Cadet MA-07400002500

Ring, Snap

$

$

Not available

61

Cub Cadet MA-07410003500

Ring, Snap

$

$

Not available

62

Ring, Snap

$

$

Not available

63

Cub Cadet MA-07410005200

Ring, Snap

$

$

Not available

64

Cub Cadet MA-19631301560

Plug S/A

Note: Includes 64-1, 64-4

$

$

Not available

64-1

Cub Cadet MA-19631301580

Screw

$

$

Not available

64-4

Cub Cadet MA-08301100140

O-Ring

$

$

Not available

65

Cub Cadet MA-19631301570

Plug

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet MA-19631301330

Seal Kit

$

$

Not available

Cub Cadet MA-19631301220

Cylinder Block (P) Ass'y.

$

$

Not available

Cub Cadet MA-19631301180

Cylinder Block (M) Ass'y.

$

$

Not available

Cub Cadet MA-19631301130

Charge Pump Ass'y.

$1165.99

$

Usually ships in 3-6 days

0

Cub Cadet MA-19631301310

Cover A

$

$

Not available

Cub Cadet MA-19631301320

Cover B

$

$

Not available
