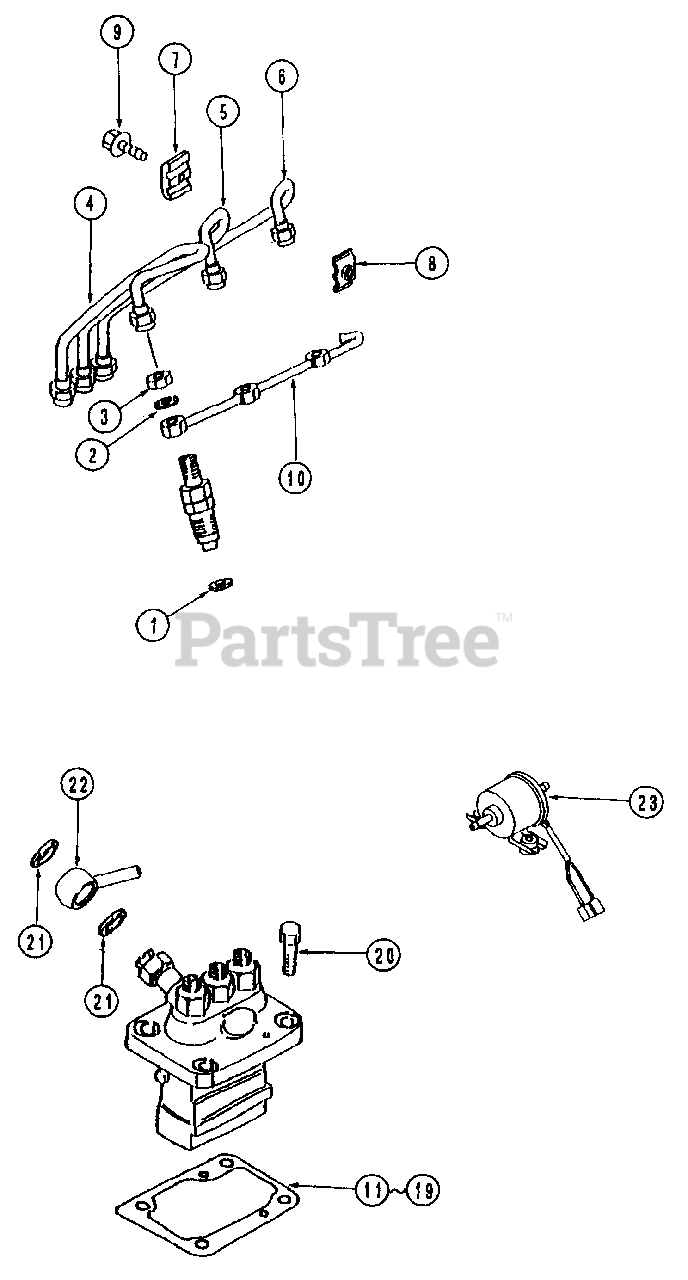

7205 (54A-443D100) - Cub Cadet Compact Tractor Fuel Supply Parts Parts Diagram

Compact Tractor

Fuel Supply Parts Parts Diagram

  • Title

1

Cub Cadet MA-MD070717

Gasket, Holder

$6.49

$

In Stock, only 3 left!

0

2

Cub Cadet MA-MD068355

Gasket,Fuel Return

$

$

Not available

3

Cub Cadet MA-MD068353

Nut

$

$

Not available

4

Cub Cadet MA-31A61-04100

Pipe, Inj. No.1

$45.99

$

Usually ships in 3-6 days

0

5

Cub Cadet MA-31A61-04200

Pipe, Inj. No.2

$45.99

$

Usually ships in 3-6 days

0

6

Cub Cadet MA-31A61-04300

Pipe, Inj. No.3

$46.99

$

Usually ships in 3-6 days

0

7

Cub Cadet MA-MM430703

Clamp

$

$

Not available

8

Cub Cadet MA-MM430614

Clamp

$

$

Not available

9

Cub Cadet MA-F1825-06025

Bolt, W/Washer

$

$

Not available

10

Cub Cadet MA-31B61-02600

Pipe, Fuel Leak-Off

$

$

Not available

11

Cub Cadet MA-MM409040

Shim

Note: T=0.2

$

$

Not available

12

Cub Cadet MA-MM409041

Shim

Note: T=0.3

$

$

Not available

13

Cub Cadet MA-MM409042

Shim

Note: T=0.4

$

$

Not available

14

Cub Cadet MA-MM409043

Shim

Note: T=0.5

$

$

Not available

15

Cub Cadet MA-MM409044

Shim

Note: T=0.6

$

$

Not available

16

Cub Cadet MA-MM409045

Shim

Note: T=0.7

$

$

Not available

17

Cub Cadet MA-MM409046

Shim

Note: T=0.8

$

$

Not available

18

Cub Cadet MA-MM409047

Shim

Note: T=0.9

$

$

Not available

19

Cub Cadet MA-MM409048

Shim

Note: T=1.0

$

$

Not available

20

Cub Cadet MA-F1035-08020

Bolt

$

$

Not available

21

Cub Cadet MA-MK66112000

Washer, Seal

$5.49

$

Usually ships in 3-6 days

0

22

Cub Cadet MA-MM304916

Color, Union

$

$

Not available

23

Cub Cadet MA-MM436739

Fuel Pump Ass'y.
(Superseded to MA-31A60-00601)

$319.99

$

Usually ships in 3-6 days

0
