7205 (54A-443D100) - Cub Cadet Compact Tractor Front Axle MFD (Part 1) Parts Diagram

Compact Tractor

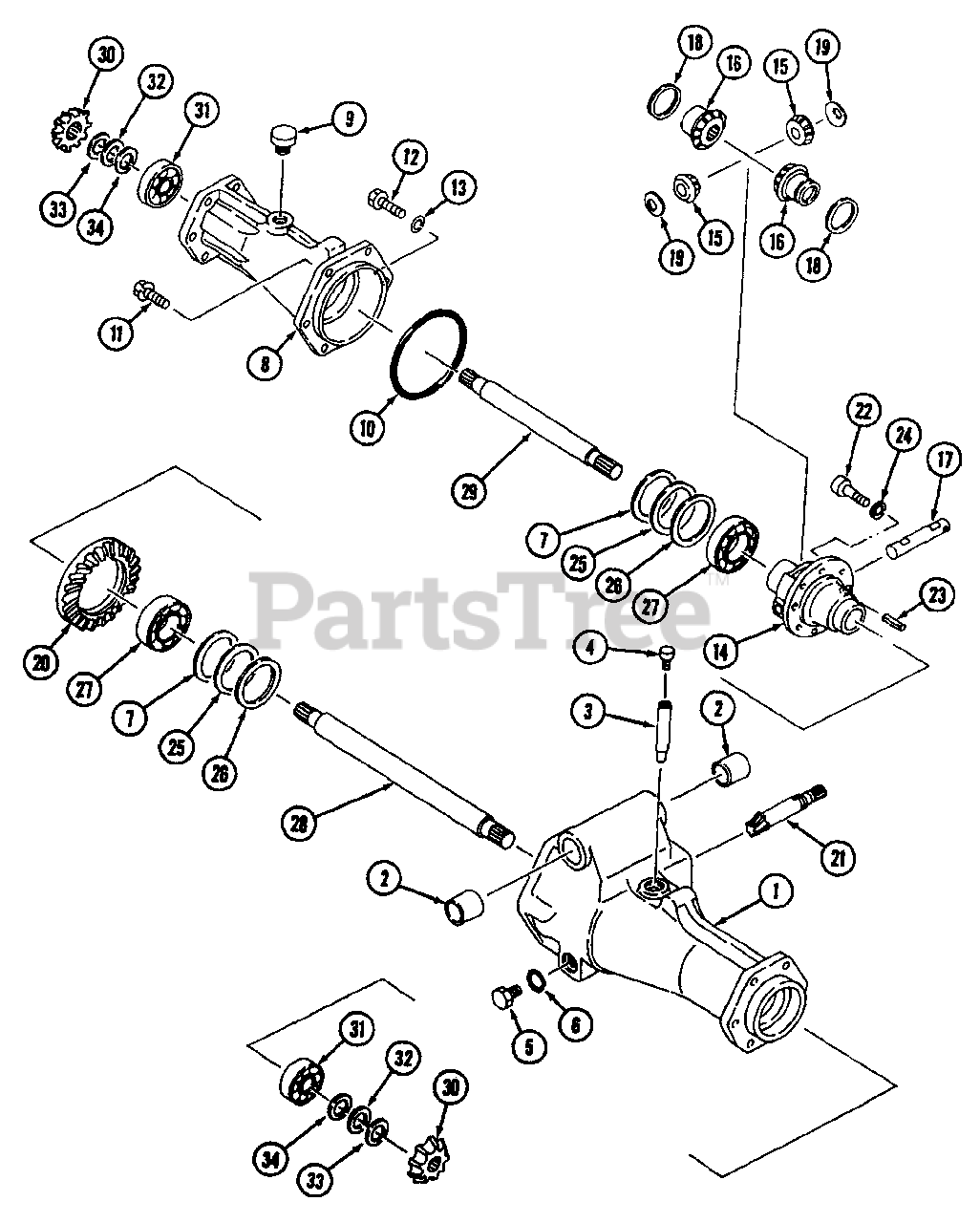

Front Axle MFD (Part 1) Parts Diagram

  • Title

Cub Cadet MA-19672101AG0

Front Axle MFD Ass'y.

Note: (Complete)

$

$

Not available

Cub Cadet MA-19632111AG0

Housing A Ass'y.

Note: Includes 1-2

$

$

Not available

1

Cub Cadet MA-19632112AG0

Housing Axle A

$

$

Not available

2

Cub Cadet MA-07961025250

Bushing

$24.99

$

In Stock, only 1 left!

0

Cub Cadet MA-07963025250

Bushing

Note: Replaces Bushing MA-07961025250 when inventory is depleted

$

$

Not available

3

Cub Cadet MA-10302117AG0

Pipe

$

$

Not available

4

Cub Cadet MA-11190621000

Plug, Vent

$

$

Not available

5

Cub Cadet MA-10250808000

Plug

$

$

Not available

6

Cub Cadet MA-08331001200

Seal, Washer

$

$

Not available

7

Cub Cadet MA-10070618200

Liner

$

$

Not available

8

Cub Cadet MA-19632113AG0

Housing Axle B
(Superseded to MA-19632113AG0P)

$

$

Not available

9

Cub Cadet MA-31501016000

Plug, Oil

$

$

Not available

10

Cub Cadet MA-08300501200

O-Ring

$

$

Not available

11

Cub Cadet MA-F1550110030

Bolt

$4.49

$

In Stock, only 4 left!

0

12

Cub Cadet MA-69542-64700

Bolt

$8.99

$

In Stock, only 2 left!

0

13

Cub Cadet MA-A3600101002

Washer

$

$

Not available

Cub Cadet MA-19672114000

Diff. Case Ass'y.

Note: Includes 14-24

$

$

Not available

14

Cub Cadet MA-10322115001

Case Diff.

$

$

Not available

15

Cub Cadet MA-10191412000

Pinion Mate

$

$

Not available

16

Cub Cadet MA-10191413000

Gear Side

$

$

Not available

17

Cub Cadet MA-10191414000

Shaft Pinion

$115.99

$

Usually ships in 3-6 days

0

18

Cub Cadet MA-10191416000

Washer, Thrust

$7.49

$

In Stock, only 2 left!

0

19

Cub Cadet MA-10191415000

Washer, Thrust

$

$

Not available

Cub Cadet MA-19672125000

6-35 Set

Note: Includes 20-21

$

$

Not available

20

Gear Ring

Note: Sold in set only.

$

$

Not available

21

Shaft Pinion

Note: Sold in set only

$

$

Not available

22

Cub Cadet MA-A5440708016

Bolt

$

$

Not available

23

Cub Cadet MA-05500006036

Pin, Spring

$

$

Not available

24

Cub Cadet MA-10322120000

Washer

$

$

Not available

25

Cub Cadet MA-10070618000

Liner

$

$

Not available

26

Cub Cadet MA-10070618100

Liner

$

$

Not available

Cub Cadet MA-10190623000

Shim Set, Shaft

Note: Includes 7,25,26

$

$

Not available

27

Cub Cadet MA-07500060100

Bearing

$60.99

$

Usually ships in 3-6 days

0

28

Cub Cadet MA-19632134000

Shaft Diff. L.H.

$

$

Not available

29

Cub Cadet MA-19632135000

Shaft Diff. R.H.

$

$

Not available

30

Cub Cadet MA-10252138000

Pinion 13T

$

$

Not available

31

Cub Cadet MA-07500063050

Bearing

$38.99

$

In Stock, only 4 left!

0

Cub Cadet MA-10190626000

Shim Set, Pinion

Note: Includes 32-34

$

$

Not available

32

Cub Cadet MA-11353016000

Liner

$

$

Not available

33

Cub Cadet MA-07310002502

Liner

$

$

Not available

34

Cub Cadet MA-07310002504

Liner

$

$

Not available
