7205 (54A-443D100) - Cub Cadet Compact Tractor Crankcase Parts Diagram

Compact Tractor

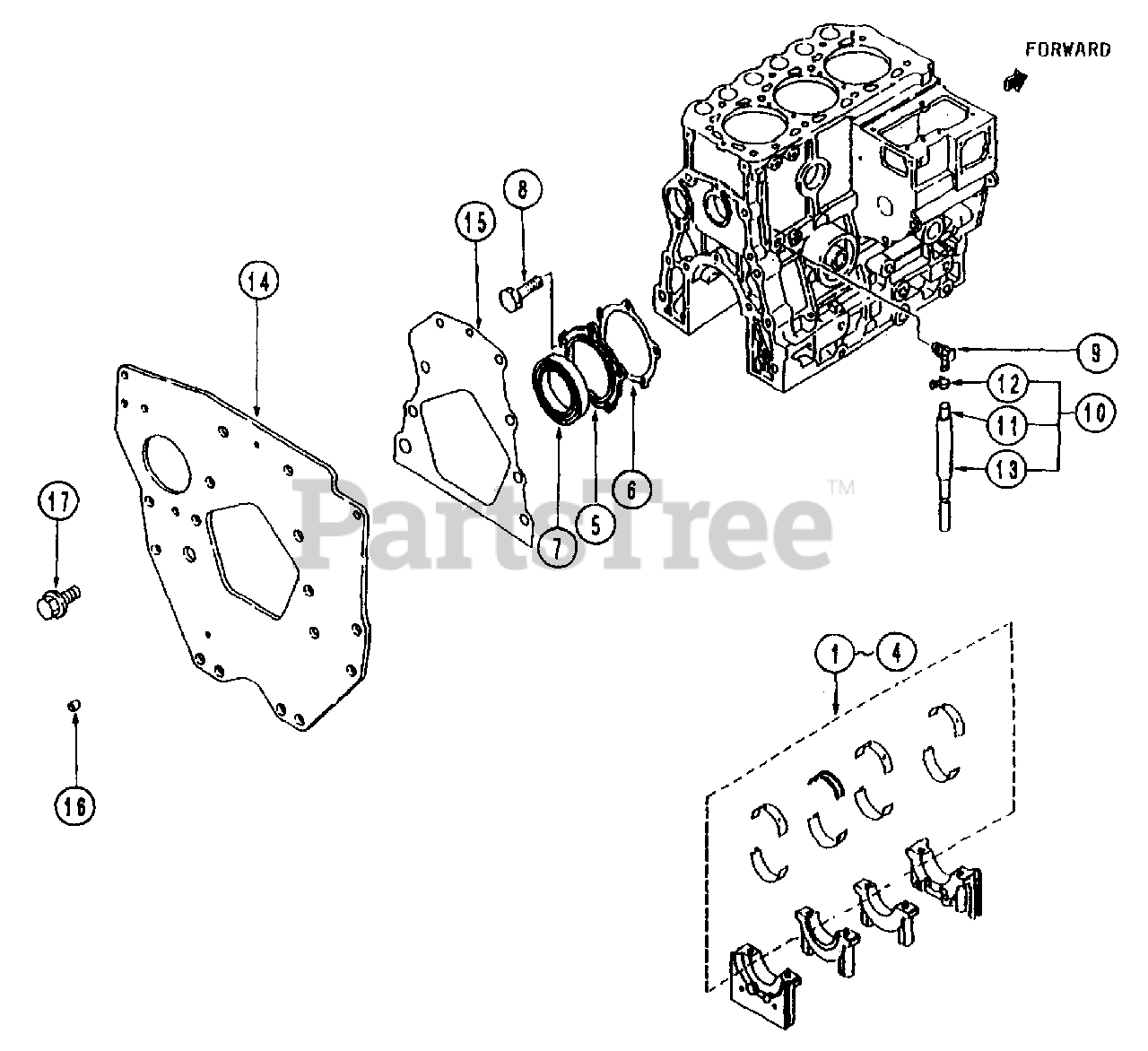

Crankcase Parts Diagram

  • Title

1

Cub Cadet MA-MM437880

Metal Set
(Superseded to MA-31A09-01010)

Note: STD

$

$

Not available

2

Cub Cadet MA-MM437881

Metal Set
(Superseded to MA-31A09-01020)

Note: U.S 0.25

$117.99

$

Usually ships in 3-6 days

0

3

Cub Cadet MA-MM437882

Metal Set
(Superseded to MA-31A09-01030)

Note: U.S 0.50

$

$

Not available

4

Cub Cadet MA-MM437883

Metal Set
(Superseded to MA-MM408163)

Note: U.S 0.75

$

$

Not available

5

Cub Cadet MA-31A07-11600

Case, Oil Seal
(Superseded to MA-31A07-11601)

$

$

Not available

6

Cub Cadet MA-31A07-11701

Gasket, Oil Seal Case

$

$

Not available

7

Cub Cadet MA-31A07-02300

Seal, Oil

$

$

Not available

8

Cub Cadet MA-F1035-08020

Bolt

$

$

Not available

9

Cub Cadet MA-MM408260

Joint, Water Drain
(Superseded to MA-31A46-02300)

$

$

Not available

10

Hose Ass'y., Water

Note: Furnish Component Parts

$

$

Not available

11

Cub Cadet MA-MS602081

Hose Fuel

$

$

Not available

12

Cub Cadet MA-MS660163

Clip

$

$

Not available

13

Cub Cadet MA-MM43721501

Hose, Rubber

$

$

Not available

14

Cub Cadet MA-31B07-24300

Plate, Rear
(Superseded to MA-31B07-24301)

$

$

Not available

15

Cub Cadet MA-31A07-02401

Gasket, Rear Plate

$

$

Not available

16

Cub Cadet MA-MM408240

Pin, Knock

$

$

Not available

17

Cub Cadet MA-31A08-04101

Bolt, Flange
(Superseded to MA-31A08-04102)

$

$

Not available
