7205 (54A-443D100) - Cub Cadet Compact Tractor Auxiliary Valve Kit Parts Diagram

Compact Tractor

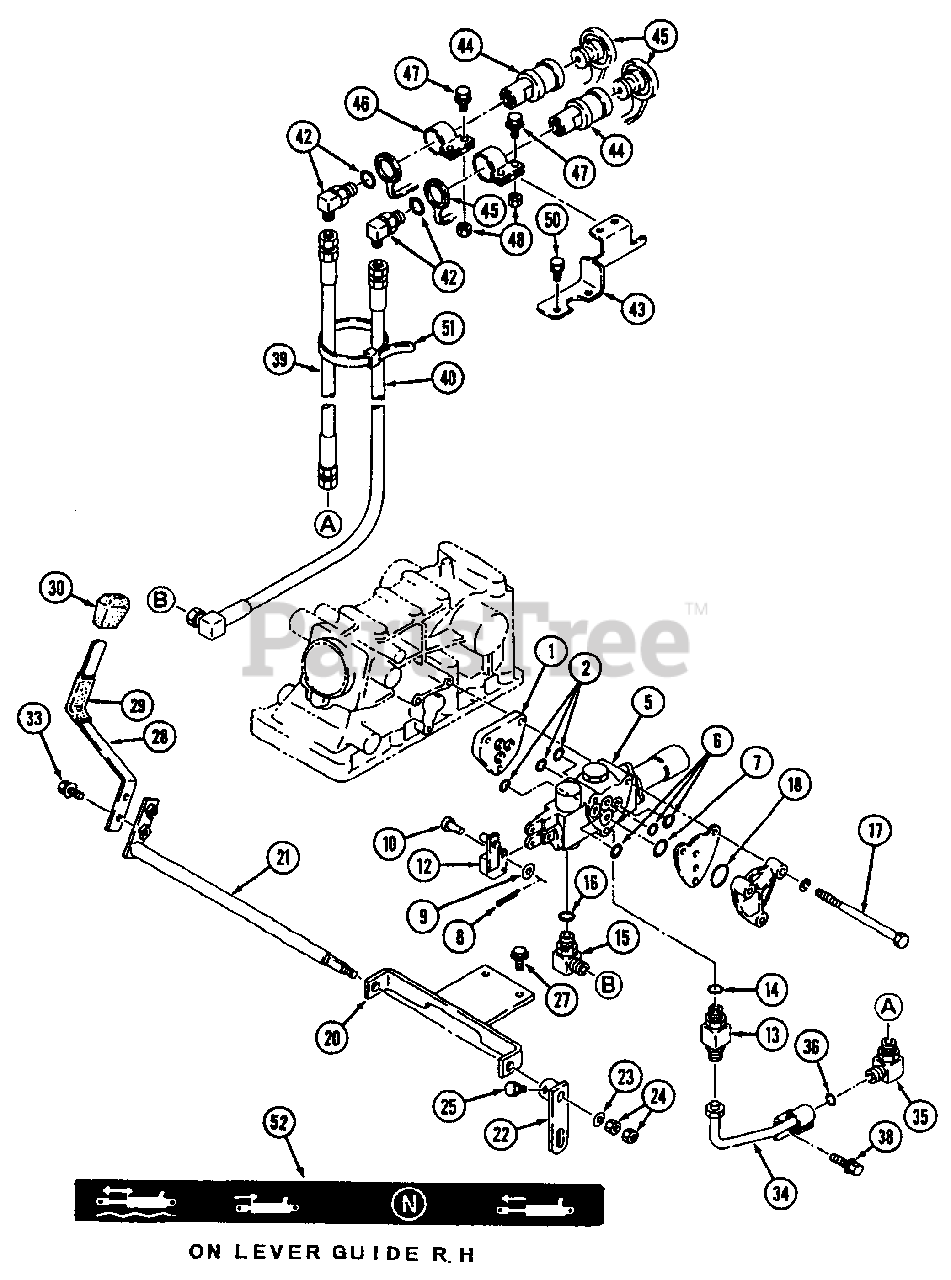

Auxiliary Valve Kit Parts Diagram

  • Title

1

Cub Cadet MA-12185026000

Spacer

$

$

Not available

2

Cub Cadet MA-08301100120

O-Ring

$

$

Not available

Cub Cadet MA-19632482AG0

Sub Valve

Note: Includes 5-10

$

$

Not available

5

Body

$

$

Not available

6

Cub Cadet MA-08300100120

O-Ring
(Superseded to MA-08301100120)

$

$

Not available

7

Cub Cadet MA-08300100160

O-Ring

$

$

Not available

8

Cub Cadet MA-05200112008

Pin, Split

$

$

Not available

9

Cub Cadet MA-03500120512

Washer

$

$

Not available

10

Cub Cadet MA-11556501270

Pin, Clevis

$

$

Not available

12

Cub Cadet MA-19632483000

Arm

$

$

Not available

13

Cub Cadet MA-06203112171

Body (Nipple)

$

$

Not available

14

Cub Cadet MA-08301100140

O-Ring

$

$

Not available

15

Cub Cadet MA-06313117170

Elbow 90

Note: Includes 15,16

$

$

Not available

16

Cub Cadet MA-08300100140

O-Ring

$

$

Not available

17

Cub Cadet MA-A0540108095

Bolt

$

$

Not available

18

Cub Cadet MA-A3600100802

Washer

$

$

Not available

20

Cub Cadet MA-19632484AG0

Bracket

$

$

Not available

21

Cub Cadet MA-19632486000

Shaft

$

$

Not available

22

Cub Cadet MA-19632487000

Arm

$

$

Not available

23

Cub Cadet MA-03500140818

Washer

$

$

Not available

24

Cub Cadet MA-A3010108002

Nut

$

$

Not available

25

Cub Cadet MA-A0500108012

Bolt

$

$

Not available

27

Cub Cadet MA-F1550110025

Bolt

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet MA-19632488AG0

Lever Ass'y.

Note: Includes 28,29

$

$

Not available

28

Lever

$

$

Not available

29

Cub Cadet MA-19632439000

Tube

$

$

Not available

30

Cub Cadet MA-11742449000

Grip

$16.99

$

Usually ships in 3-6 days

0

33

Cub Cadet MA-H1540108016

Bolt

$

$

Not available

34

Cub Cadet MA-19632490AG0

Pipe Press. Ass'y.

$

$

Not available

35

Cub Cadet MA-06313117170

Elbow 90

Note: Includes 35,36

$

$

Not available

36

Cub Cadet MA-08300100140

O-Ring

$

$

Not available

38

Cub Cadet MA-H1550110016

Bolt

$2.49

$

Usually ships in 3-6 days

0

39

Cub Cadet MA-19632492000

Hose Ass'y.

$

$

Not available

40

Cub Cadet MA-19632493000

Hose Ass'y.

$

$

Not available

42

Cub Cadet MA-19632494000

Fitting

$

$

Not available

43

Cub Cadet MA-19632496AG0

Bracket

$

$

Not available

44

Cub Cadet 727-3093

Coupling
(Superseded to 927-3093)

$

$

Not available

45

Cub Cadet 731-3177

Plug/A

$

$

Not available

46

Cub Cadet MA-12185264000

Clamp, Coupler

$

$

Not available

47

Cub Cadet MA-H1540108020

Bolt

$3.49

$

Usually ships in 3-6 days

0

48

Cub Cadet MA-F3010108001

Nut

$

$

Not available

50

Cub Cadet MA-F1540108012

Bolt

$

$

Not available

51

Cub Cadet MA-00511070070

Band, Wire

$

$

Not available

52

Cub Cadet MA-19632753000

Label, Aux. Valve

$

$

Not available
