72049 (265-6) - Toro Lawn & Garden Tractor (SN: 200000001 - 200999999) (2000) DASH ASSEMBLY Parts Diagram

Lawn & Garden Tractor

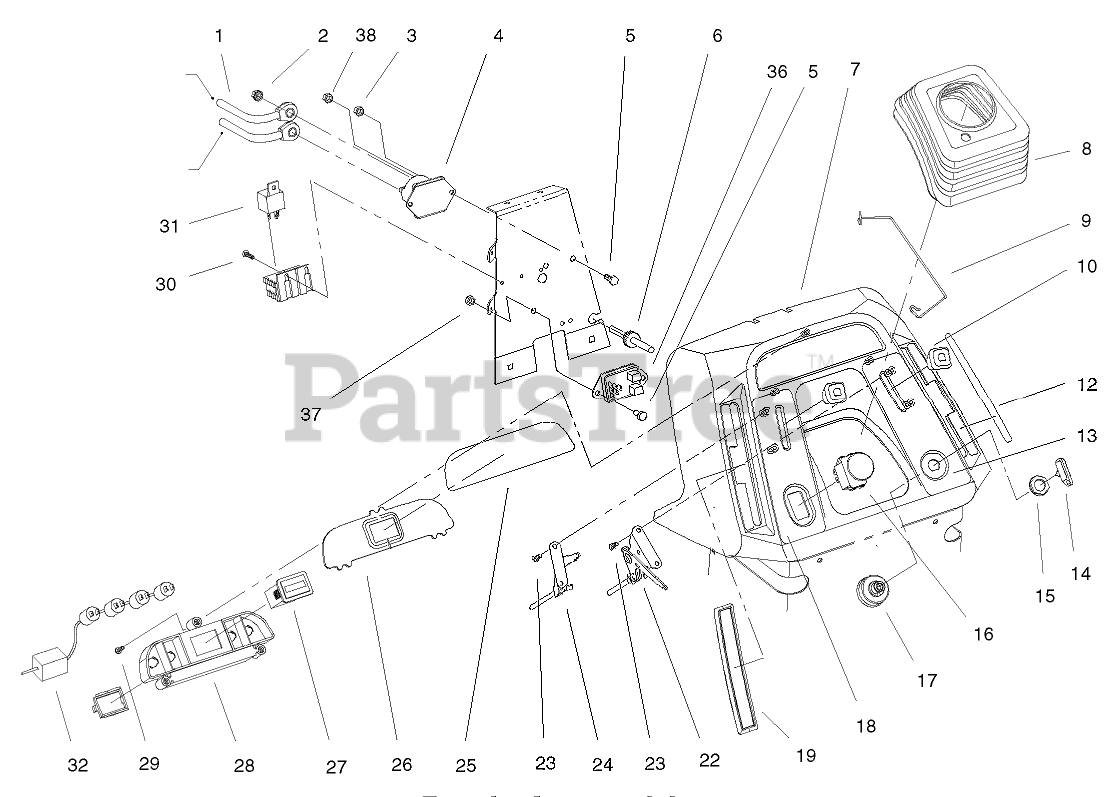

DASH ASSEMBLY Parts Diagram

  • Title
1

Toro 100-4187

CABLE-BATTERY, RED

$

$

Not available

2

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

4

Toro 28-4210

SOLENOID

$77.99

$

In Stock, only 1 left!

0

5

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 14

0

7

$

$

Not available

8

Toro 92-6680

BOOT-STEERING

$

$

Not available

9

Toro 94-2966

CLIP-BOOT

$

$

Not available

10

$5.99

$

In Stock, only 2 left!

0

12

Toro 92-6722

DECAL - SHIFT

$

$

Not available

13

Toro 92-6721

DECAL-THROTTLE, IGNITION

$12.99

$

Usually ships in 3-6 days

0

14

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, only 1 left!

0

15

$5.99

$

In Stock, only 2 left!

0

16

Toro 93-9998

SWITCH-PTO

$45.99

$

In Stock, only 1 left!

0

17

Toro 92-6785

SWITCH-IGNITION

$86.99

$

In Stock, only 1 left!

0

18

Toro 92-6720

DECAL-PTO / CHOKE
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

19

Toro 92-6797

COVER-SLOT, LH

$

$

Not available

22

Toro 94-9779

CONTROL - THROTTLE

$

$

Not available

23

$2.99

$

Usually ships in 3-6 days

0

24

Toro 92-6781

CONTROL-CHOKE

$

$

Not available

25

Toro 99-8038

DECAL-LENS, DASH

$

$

Not available

26

Toro 92-6705

LENS-DASH

$

$

Not available

27

Toro 94-4208

HOURMETER
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

28

Toro 92-6732

HOUSING-LIGHT, INDICATOR

$29.99

$

Usually ships in 3-6 days

0

29

Toro 94-6961

SCREW

$1.49

$

In Stock, only 3 left!

0

30

Toro 32144-8

SCREW-PPHTF

$6.99

$

Usually ships in 3-6 days

0

31

Toro 98-7249

RELAY

$22.99

$

In Stock, Qty 6

0

32

Toro 99-8066

HARNESS-LAMP

$

$

Not available

36

Toro 99-3701

MODULE-CLUTCH

$148.99

$

Usually ships in 3-6 days

0

37

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

38

Toro 32149-8

NUT-KEPS

$1.49

$

Usually ships in 3-6 days

0
