72049 (265-6) - Toro Lawn & Garden Tractor (SN: 200000001 - 200999999) (2000) BLOWER HOUSING & BAFFLES Parts Diagram

Lawn & Garden Tractor

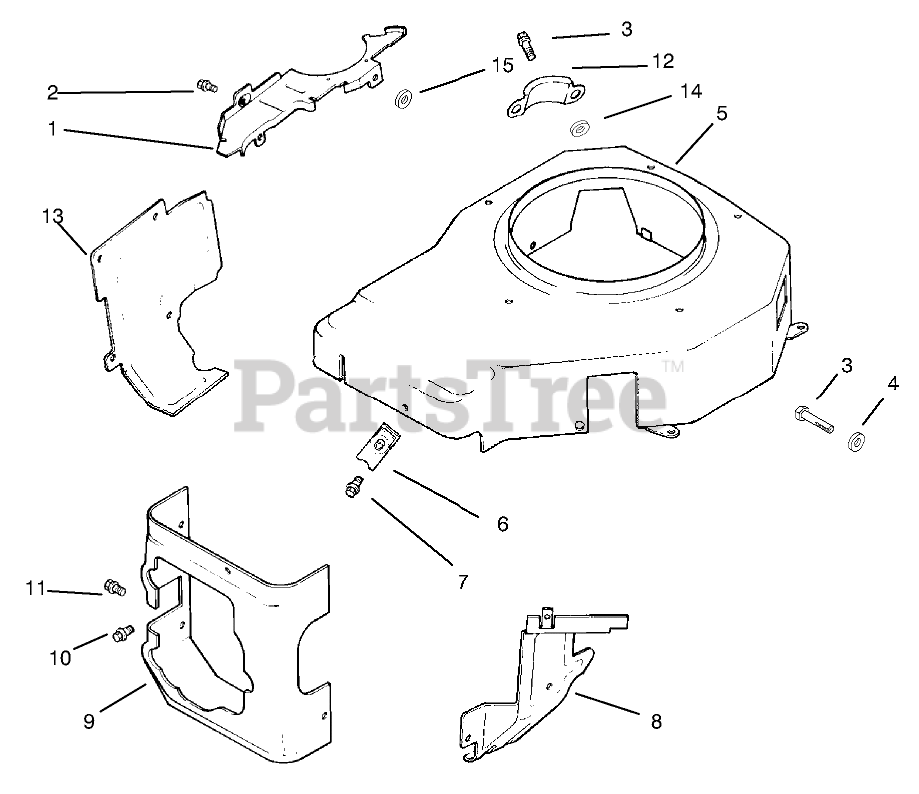

BLOWER HOUSING & BAFFLES Parts Diagram

  • Title
1

1214607

Plate-Blower Housing

$

$

Not available

2

Kohler M-0545010

Screw
(Superseded to M-545010)

$4.49

$

In Stock, only 2 left!

0

3

Kohler 24 086 18

Screw
(Superseded to 24 086 18-S)

$2.49

$

Usually ships in 2-5 days

0

4

Kohler X-25-92

Washer
(Superseded to X-25-92-S)

$2.49

$

In Stock, only 2 left!

0

5

1202732

Housing-Blower

$

$

Not available

6

2515402

Clip

$

$

Not available

$

$

Not available

8

1206305

Baffle-Carburetor

$

$

Not available

9

1206308

Baffle-Cyl. Head

$

$

Not available

10

Kohler M-0645016

Screw
(Superseded to M-645016)

$3.99

$

In Stock, Qty 15

0

11

Kohler M-0645020

Screw
(Superseded to M-645020)

$2.49

$

In Stock, only 1 left!

0

12

2409605

Cover-Pinion

$

$

Not available

13

1206301

Baffle-Cylinder

$

$

Not available

14

Kohler 220534

Washer
(Superseded to 220534-S)

$5.49

$

In Stock, Qty 5

0

15

2446810

Washer

$

$

Not available
