72048 (265-H) - Toro Lawn & Garden Tractor (SN: 099000001 - 099999999) (1999) SINGLE CYL. ENGINE, MUFFLER, & PTO ASSEMBLY Parts Diagram

Lawn & Garden Tractor

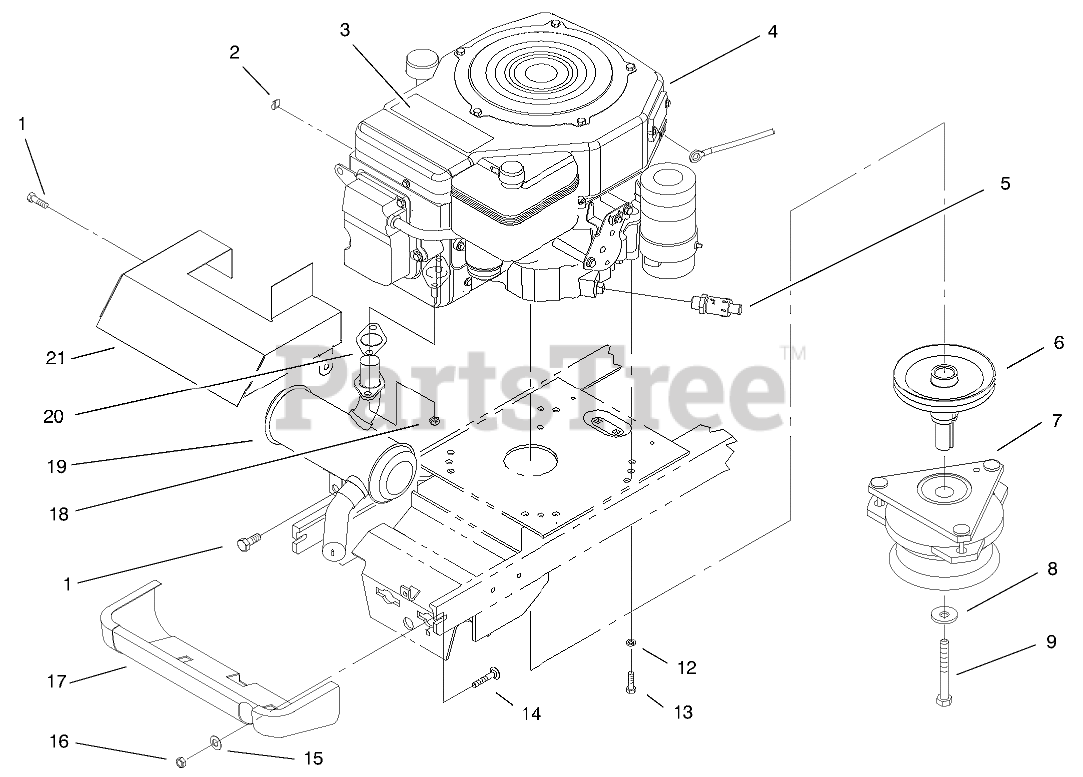

SINGLE CYL. ENGINE, MUFFLER, & PTO ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

2

Toro 702366

CLIP-RETAINER, WIRE

$7.99

$

Usually ships in 3-6 days

0

3

Toro 94-2970

DECAL - LOGO

$

$

Not available

4

Engine-Kohler 15 Int-l (Only On: 72070)

$

$

Not available

4

Engine-Kohler 15 (Only On: 72048)

$

$

Not available

5

Toro 92-6877

VALVE-DRAIN, OIL

$39.99

$

In Stock, only 1 left!

0

6

Toro 92-6888

PULLEY-ENGINE

$175.99

$

Usually ships in 3-6 days

0

7

Toro 92-6885

Clutch-Elec PTO (Only On: 72070)

$958.99

$

Usually ships in 3-6 days

0

7

Toro 94-2514

Clutch-PTO (Only On: 72048)

$1065.99

$

Usually ships in 3-6 days

0

8

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

9

Toro 9114466

SCREW-HH

$90.99

$

Usually ships in 3-6 days

0

12

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 33114-030

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

14

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 92-6867-01

Shield-Muffler
(Superseded to 100-3541-01)

$

$

Not available

18

Toro 92-6780

NUT-HF
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 11

0

19

Toro 98-1761

MUFFLER

$373.99

$

Usually ships in 3-6 days

0

20

Toro 92-6716

Gasket-Exhaust

$

$

Not available

21

Toro 92-6878-03

SHIELD-MUFFLER

$98.99

$

Usually ships in 3-6 days

0
