72048 (265-H) - Toro Lawn & Garden Tractor (SN: 099000001 - 099999999) (1999) SEAT ASSEMBLY Parts Diagram

Lawn & Garden Tractor

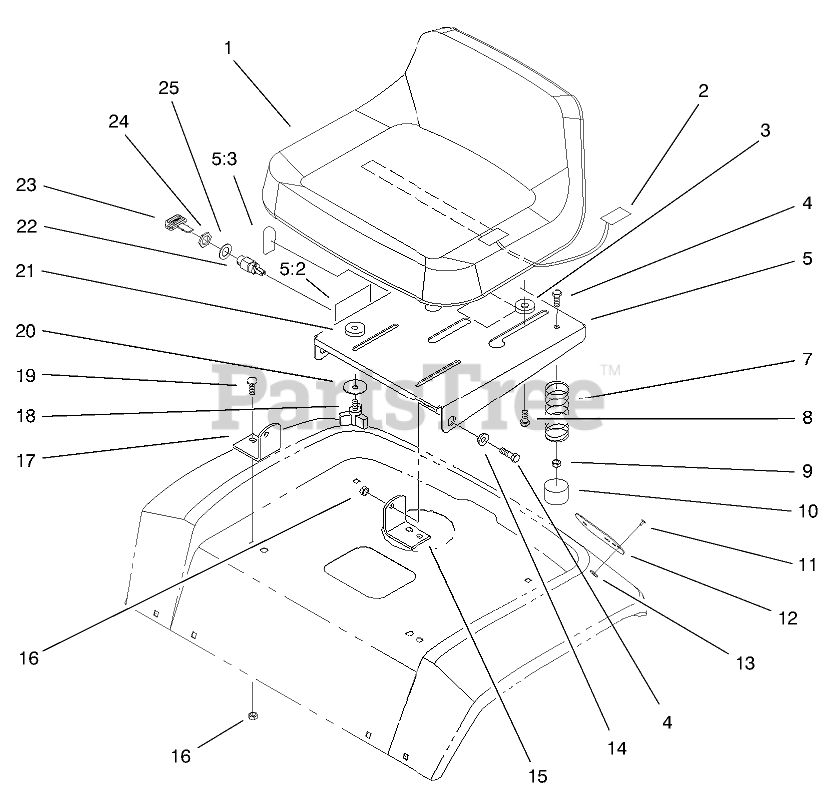

SEAT ASSEMBLY Parts Diagram

  • Title
1

Toro 92-6511

Seat V-511 (Only On: 72070)

$

$

Not available

1

Toro 88-3950

Seat-Medium Back V411 (Only On: 72048)
(Superseded to 88-4330)

$

$

Not available

2

Toro 38-1420

SWITCH-SEAT

$

$

Not available

3

Toro 92-6750

SPACER-NYLON

$16.99

$

Usually ships in 3-6 days

0

4

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 99-8031

Support-Seat (Only On: 72048)

$94.99

$

Usually ships in 3-6 days

0

5

Toro 99-8030

Support-Seat, He ASM (Only On: 72070)

$

$

Not available

5:2

Toro 99-2986

Decal-Danger Intl (Only On: 72070)

$8.99

$

Usually ships in 3-6 days

0

5:2

Toro 99-2985

Decal-Danger (Only On: 72048)

$

$

Not available

5:3

Toro 99-5340

Decal-Nmir Switch Intl (Only On: 72070)

$4.49

$

Usually ships in 3-6 days

0

5:3

Toro 99-5339

Decal-Nmir Switch (Only On: 72048)

$

$

Not available

7

Toro 92-7054

SPRING-COMPRESSION

$20.99

$

In Stock, Qty 10

0

8

Toro 92-6986

BOLT-SHOULDER

$11.99

$

Usually ships in 3-6 days

0

9

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

10

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, only 3 left!

0

11

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

12

Toro 106557

REFLECTOR-STICK ON

$

$

Not available

13

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

14

Toro 105503

BUSHING

$0.99

$

In Stock, Qty 7

0

15

Toro 79-0970-03

BRACKET-PIVOT, LH

$12.99

$

Usually ships in 3-6 days

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 14

0

17

Toro 79-0950-03

BRACKET-PIVOT, RH

$14.99

$

Usually ships in 3-6 days

0

18

$19.99

$

In Stock, Qty 5

0

19

Toro 3230-2

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

20

Toro 94-2869

WASHER

$1.49

$

In Stock, Qty 5

0

21

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0

22

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, only 1 left!

0

23

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, only 2 left!

0

24

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

25

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0
