72048 (265-H) - Toro Lawn & Garden Tractor (SN: 099000001 - 099999999) (1999) HYDRO CONTROLS ASSEMBLY Parts Diagram

Lawn & Garden Tractor

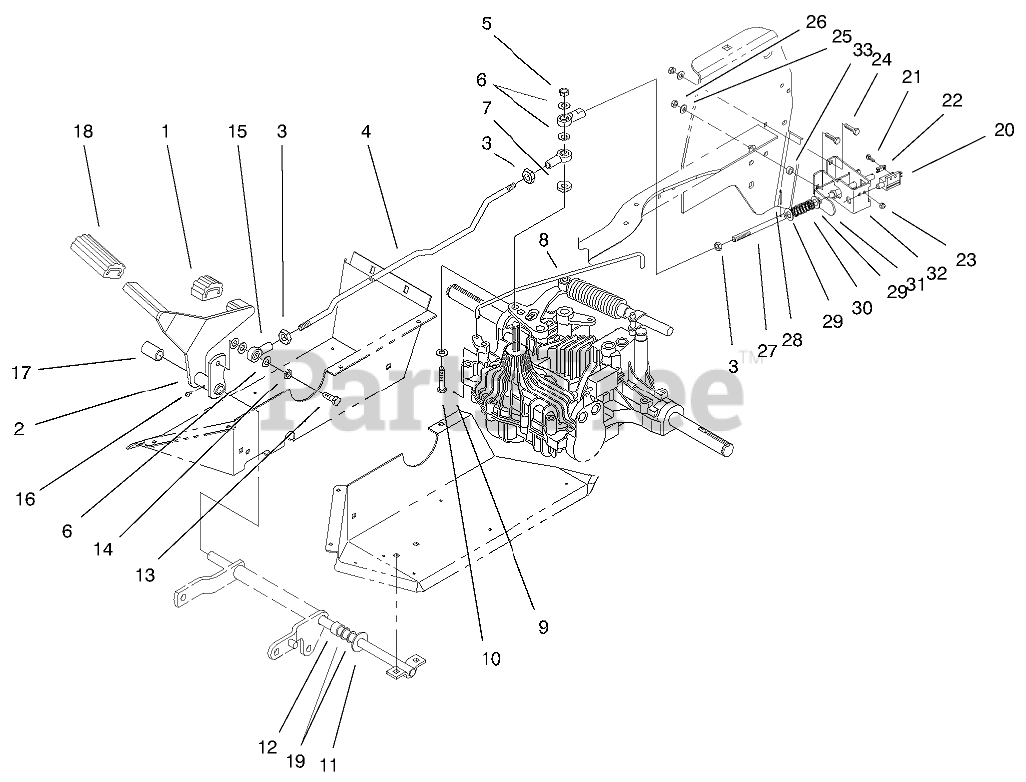

HYDRO CONTROLS ASSEMBLY Parts Diagram

  • Title
1

Toro 92-6903

PAD-PEDAL

$6.99

$

Usually ships in 3-6 days

0

2

Toro 92-6913-03

PEDAL-HYDRO WA

$

$

Not available

3

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

4

Toro 92-7018

ROD - HYDRO

$

$

Not available

5

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 18

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 92-6962

BUSHING

$

$

Not available

8

Toro 94-1588

ROD - BYPASS

$

$

Not available

9

Toro 3272-2

PIN-COTTER

$2.99

$

In Stock, only 2 left!

0

10

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 94-6875

WASHER

$10.99

$

Usually ships in 3-6 days

0

12

Toro 94-4945

SPACER

$8.49

$

Usually ships in 3-6 days

0

13

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Toro 92-7008

END-ROD, FEMALE

$50.99

$

Usually ships in 3-6 days

0

16

Toro 302-26

FITTING-GREASE

$6.49

$

In Stock, only 1 left!

0

17

Toro 92-6966

SPACER

$

$

Not available

18

Toro 92-6902

PAD-PEDAL

$

$

Not available

19

Toro 9202154

WASHER-FLAT

$1.99

$

In Stock, Qty 5

0

20

Toro 95-1653

SWITCH-POLE, SINGLE

$19.99

$

Usually ships in 3-6 days

0

21

Toro 3290-392

SCREW-SHH

$1.49

$

Usually ships in 3-6 days

0

22

Toro 94-7905

RETAINER-SCREW

$

$

Not available

23

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

24

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

27

Toro 99-6759

ROD-NMIR

$

$

Not available

28

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

29

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 38-2340

SPRING-COMPRESSION

$

$

Not available

31

Toro 99-6760

Arm-Push
(Superseded to 99-6760-03)

$14.99

$

Usually ships in 3-6 days

0

32

Toro 99-6758-03

BRACKET, NMIR

$45.99

$

Usually ships in 3-6 days

0

33

Toro 92-6998

SPACER-YOKE, RIGHT

$6.99

$

Usually ships in 3-6 days

0
