72048 (265-H) - Toro Lawn & Garden Tractor (SN: 099000001 - 099999999) (1999) HYDRO BRAKE ASSEMBLY Parts Diagram

Lawn & Garden Tractor

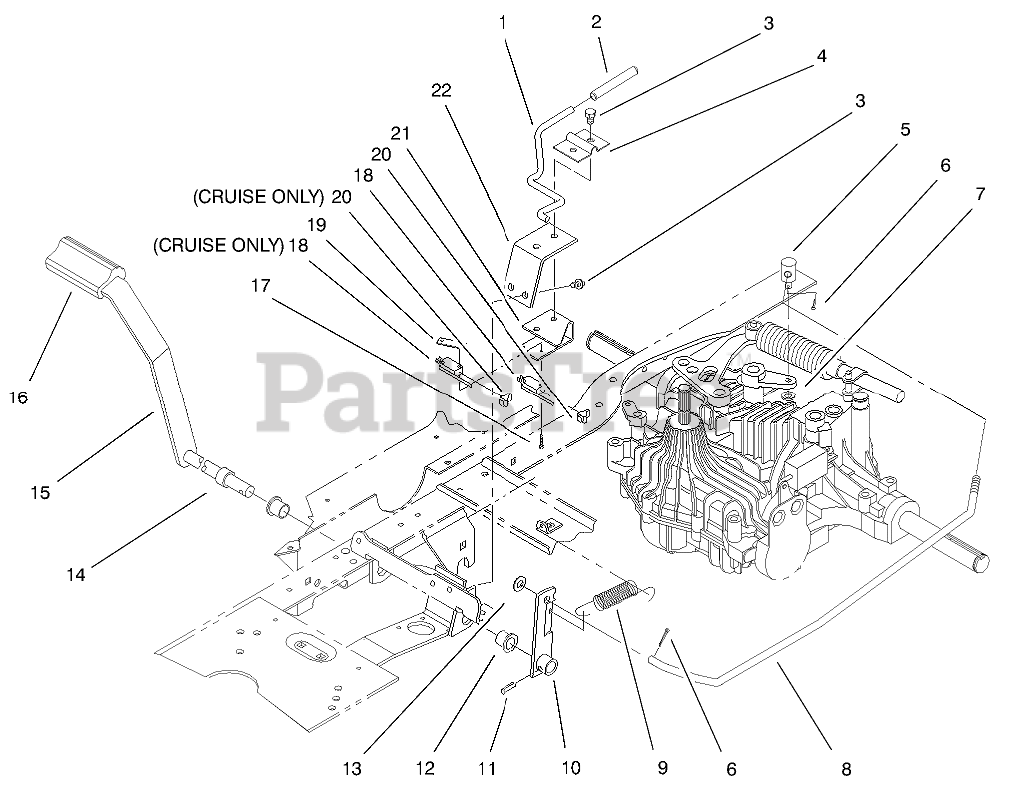

HYDRO BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 93-3167

ROD - PARKING BRAKE

$

$

Not available

2

Toro 92-7009

GRIP - PARKING BRAKE

$1.99

$

Usually ships in 3-6 days

0

3

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

4

Toro 92-7000-03

BRKT-PARKING BRAKE

$

$

Not available

5

Toro 92-6968

TRUNNION - BRAKE

$39.99

$

Usually ships in 3-6 days

0

6

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 92-6988

ROD - BRAKE

$

$

Not available

9

Toro 93-0540

SPRING-EXTENSION

$

$

Not available

10

Toro 94-1722-03

WA - BRAKE LEVER

$30.99

$

Usually ships in 3-6 days

0

11

Toro 32121-69

PIN-SPRING

$1.99

$

In Stock, Qty 5

0

12

Toro 256-90

BUSHING-FLANGE

$3.99

$

In Stock, only 3 left!

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 92-6982

SPACER-BRAKE

$

$

Not available

15

Toro 94-4233-03

LEVER - BRAKE WA

$68.99

$

Usually ships in 3-6 days

0

16

Toro 65-2920

PAD-PEDAL

$33.99

$

Usually ships in 3-6 days

0

17

Toro 147665

SCREW-HH
(Superseded to 95-3003)

$3.49

$

Usually ships in 3-6 days

0

18

Toro 88-9932

SWITCH-MICRO

$36.99

$

In Stock, only 3 left!

0

19

Toro 3290-354

NUT-SPEED

$9.99

$

Usually ships in 3-6 days

0

20

Toro 93-3240

PLUNGER-SEAL

$

$

Not available

21

Toro 93-0520-03

BRKT - BRAKE SWITCH

$

$

Not available

22

Toro 92-7004-03

SUPPORT - P. BRAKE

$14.99

$

Usually ships in 3-6 days

0
