72048 (265-H) - Toro Lawn & Garden Tractor (SN: 099000001 - 099999999) (1999) FRAME ASSEMBLY Parts Diagram

Lawn & Garden Tractor

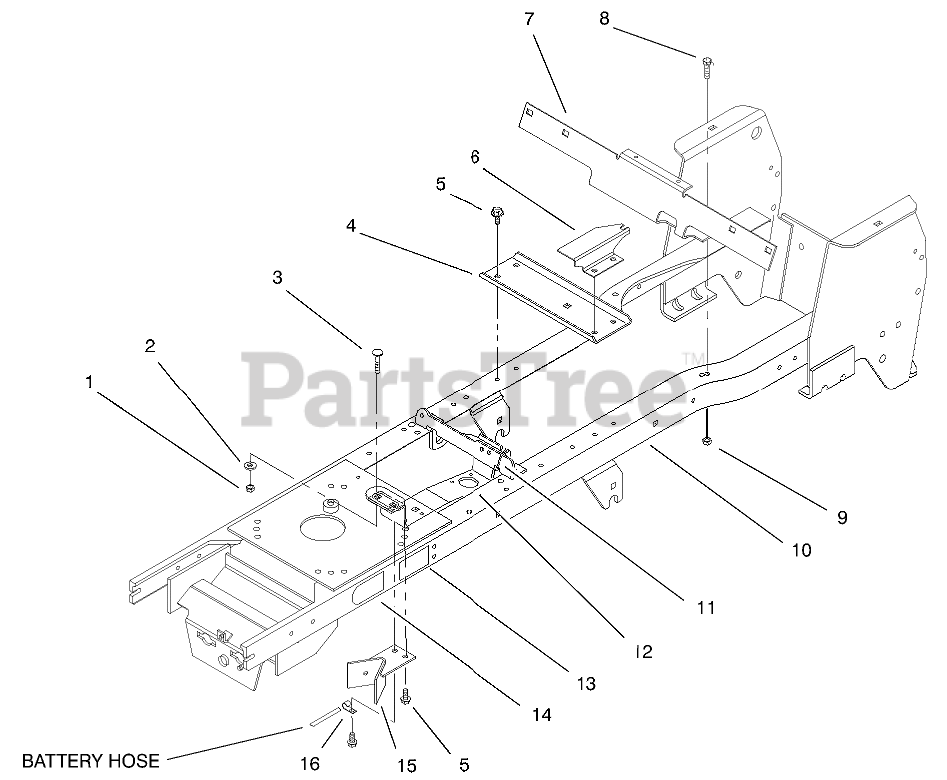

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

4

Toro 92-6868-03

BRACKET-IDLER PLATE

$38.99

$

Usually ships in 3-6 days

0

5

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

6

Toro 92-6964-03

BRACKET-HOC GAGE

$

$

Not available

7

Toro 92-6674-03

SUPPORT - FENDER
(Superseded to 100-1341-03)

$

$

Not available

8

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 99-6772-03

WA - FRAME

$1496.99

$

Usually ships in 3-6 days

0

11

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

12

Toro 92-6992-03

STEERING BRKT WA

$

$

Not available

13

Toro 93-7324

Decal-Belt Instr. (Only On: 72070)

$

$

Not available

14

Toro 92-8747

DECAL-ATTACH A-MATIC

$7.49

$

In Stock, only 1 left!

0

15

Toro 78-2491-03

WLDMT-PTO STOP

$46.99

$

Usually ships in 3-6 days

0

16

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0
