72047 (265-6) - Toro Lawn & Garden Tractor (SN: 099000001 - 099999999) (1999) STARTING SYSTEM Parts Diagram

Lawn & Garden Tractor

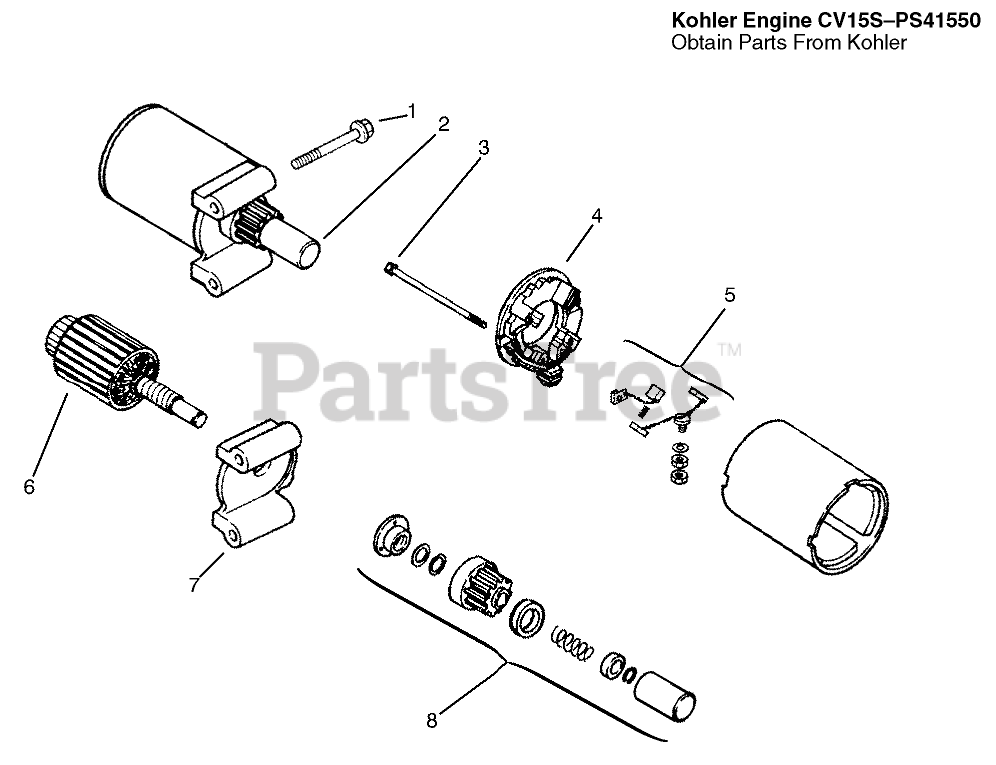

STARTING SYSTEM Parts Diagram

  • Title
1

Toro M0839070

Screw M8x1.25x70

$

$

Currently unavailable

2

1209813

Starter ASM Incl 3-8

$

$

Not available

3

1221101

Bolt

Note: Included in a service kit or in an assembly

$

$

Not available

4

1222713

Commutator-End Cap

Note: Included in a service kit or in an assembly

$

$

Not available

5

1222101

Kit-Brush

Note: Included in a service kit or in an assembly

$

$

Not available

6

1217005

Armature

Note: Included in a service kit or in an assembly

$

$

Not available

7

1222705

Cap-Drive End

Note: Included in a service kit or in an assembly

$

$

Not available

8

1275553

Kit-Drive

Note: Included in a service kit or in an assembly

$

$

Not available

5235701

Lubricant

Note: Not illustrated

$

$

Not available
