72047 (265-6) - Toro Lawn & Garden Tractor (SN: 099000001 - 099999999) (1999) GEAR DRIVE COMPONENTS ASSEMBLY Parts Diagram

Lawn & Garden Tractor

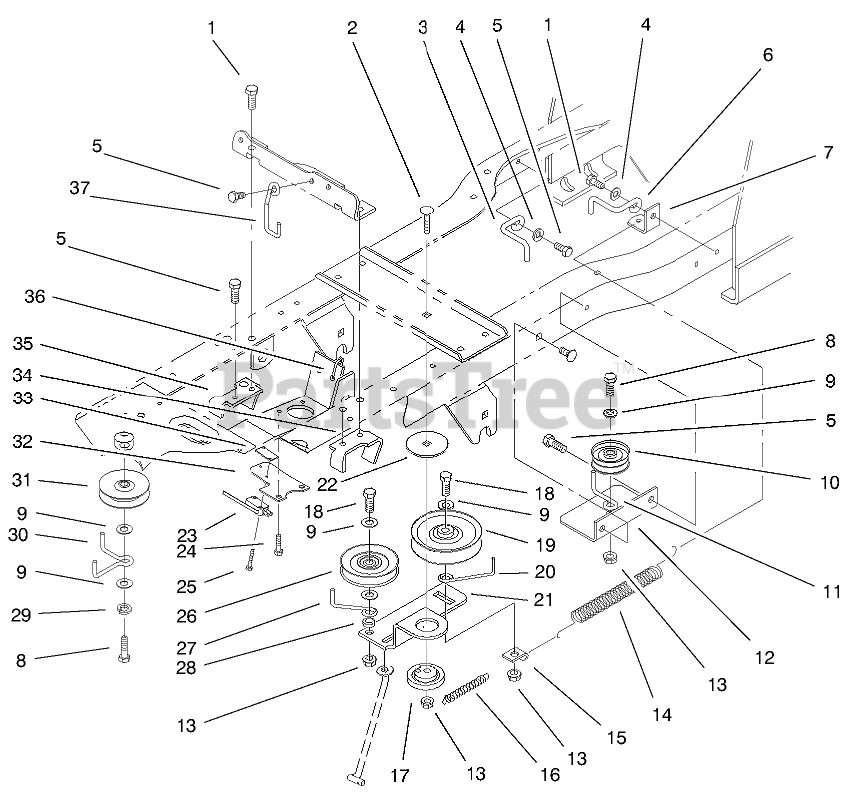

GEAR DRIVE COMPONENTS ASSEMBLY Parts Diagram

  • Title
1

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

2

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

3

Toro 92-7001

GUIDE - BELT RH

$

$

Not available

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

6

Toro 92-7002

GUIDE-BELT LH

$

$

Not available

7

Toro 92-6891-03

Bracket-Idler Spring
(Superseded to 92-6891)

$

$

Not available

8

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 607978

PULLEY IDLER NHI

$27.99

$

In Stock, only 1 left!

0

11

Toro 93-0549

GUIDE-BELT

$

$

Not available

12

Toro 92-6894-03

BRACKET-REAR IDLER

$

$

Not available

13

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Toro 79-7530

SPRING - CLUTCH

$37.99

$

Usually ships in 3-6 days

0

15

Toro 2534

CLIP - SPRING

$4.99

$

In Stock, only 2 left!

0

16

Toro 107788

SPRING-EXTENSION

$14.99

$

Usually ships in 3-6 days

0

17

Toro 111418

BUSHING

$32.99

$

Usually ships in 3-6 days

0

18

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 92-7101

PULLEY-IDLER, FLAT

$34.99

$

In Stock, only 2 left!

0

20

Toro 79-0390

GUIDE-BELT

$

$

Not available

21

Toro 78-6771

ARM-IDLER

$

$

Not available

22

Toro 111419

WASHER-BEARING

$

$

Not available

23

Toro 88-9932

SWITCH-MICRO

$37.99

$

In Stock, only 1 left!

0

24

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

25

Toro 147665

SCREW-HH
(Superseded to 95-3003)

$3.49

$

Usually ships in 3-6 days

0

26

Toro 92-7102

PULLEY-IDLER

$71.99

$

In Stock, only 1 left!

0

27

Toro 79-0400

GUIDE-BELT

$

$

Not available

28

Toro 93-3658

Spacer

$9.99

$

Usually ships in 3-6 days

0

29

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 15

0

30

Toro 93-0547

GUIDE-BELT

$

$

Not available

31

Toro 93-0320

PULLEY-IDLER

$21.99

$

In Stock, only 4 left!

0

32

Toro 93-0526-03

BRKT-MICROSWITCH GEAR

$

$

Not available

33

Toro 3290-354

NUT-SPEED

$10.99

$

Usually ships in 3-6 days

0

34

Toro 92-6670

CLUTCH PEDAL STOP

$

$

Not available

35

Toro 92-6671

BRAKE BRACKET PLATED
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

36

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

37

Toro 93-0548

GUIDE-BELT

$

$

Not available
