72047 (265-6) - Toro Lawn & Garden Tractor (SN: 099000001 - 099999999) (1999) ENGINE CONTROLS Parts Diagram

Lawn & Garden Tractor

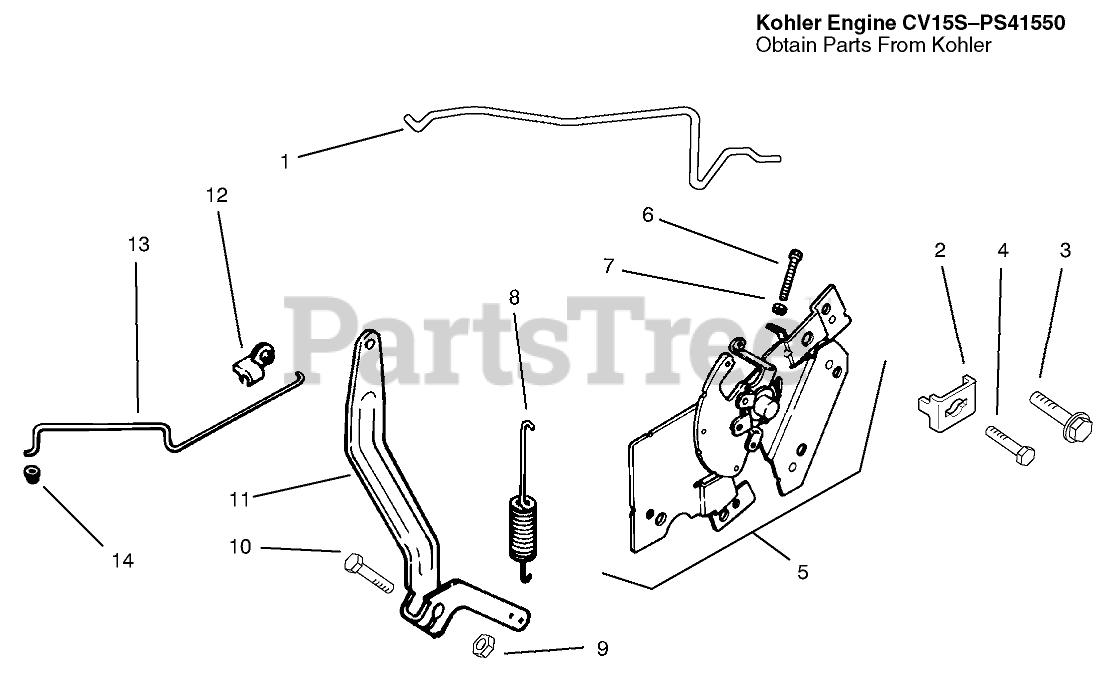

ENGINE CONTROLS Parts Diagram

  • Title

1

1207907

Linkage Choke

$

$

Not available

2

Kohler 12 237 01

Clamp
(Superseded to 12 237 01-S)

$3.49

$

In Stock, Qty 5

0

3

Kohler M-0664020

Screw Socket

$

$

Not available

4

Kohler M-0545016

Screw-HF
(Superseded to M-545016)

$2.49

$

In Stock, Qty 15

0

5

1253602

Control-Speed ASM

$

$

Not available

6

Kohler M-0401030

Screw
(Superseded to M-401030-S)

Note: Included in a service kit or in an assembly

$3.49

$

In Stock, Qty 9

0

7

Kohler M-0446030

Nut
(Superseded to M-446030-S)

Note: Included in a service kit or in an assembly

$2.49

$

In Stock, only 4 left!

0

8

5208907

Spring-Governor

$

$

Not available

9

Kohler M-0641060

Nut
(Superseded to M-641060)

$4.49

$

In Stock, Qty 8

0

10

Kohler SM-0642025

Screw
(Superseded to SM-642025)

$2.49

$

In Stock, only 1 left!

0

11

1209005

Lever-Governor

$

$

Not available

12

Kohler 25 158 11

Bushing-Linkage
(Superseded to 25 158 11-S)

$5.99

$

In Stock, Qty 13

0

13

1207901

Linkage-Throttle

$

$

Not available

14

Kohler 25 158 08

Bushing-Linkage
(Superseded to 25 158 08-S)

$5.99

$

In Stock, Qty 19

0
