72046 (265-H) - Toro Lawn & Garden Tractor (SN: 089000001 - 089000399) (1998) AIR INTAKE/FILTRATION Parts Diagram

Lawn & Garden Tractor

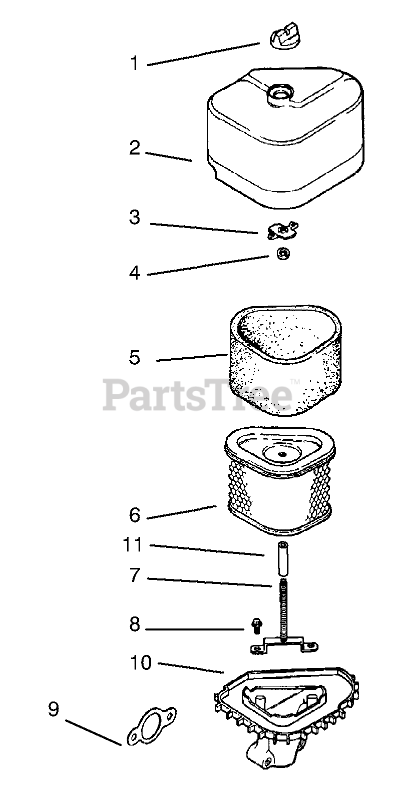

AIR INTAKE/FILTRATION Parts Diagram

  • Title

1

2534103

Knob-Cover

$

$

Not available

2

1209645

Cover-Air Cleaner

$

$

Not available

3

Kohler 12 100 01

Wingnut
(Superseded to 12 100 01-S)

$3.99

$

In Stock, Qty 20+

0

4

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

$2.49

$

Usually ships in 2-5 days

0

5

Kohler 12 083 05

Element-Air Cleaner
(Superseded to 12 083 05-S)

$19.99

$

In Stock, Qty 10

0

6

1208308

Element-Precleaner

$

$

Not available

7

1207205

Stud M-6x1.0x66

$

$

Not available

8

1208601

Screw

$

$

Not available

9

1204102

Gasket-Air Cleaner

$

$

Not available

10

1209405

Base-Air Cleaner (Incl.

$

$

Not available

11

1203210

Seal

$

$

Not available

Kohler 12 113 04

Decal-Air Cleaner
(Superseded to 12 113 04-S)

Note: Not illustrated

$2.49

$

In Stock, only 1 left!

0

1274304

Kit-Air Cleaner Incl 1-11

Note: Not illustrated

$

$

Not available
