72046 (265-H) - Toro Lawn & Garden Tractor (SN: 079000001 - 079999999) (1997) HYDRO DRIVE COMPONENTS Parts Diagram

Lawn & Garden Tractor

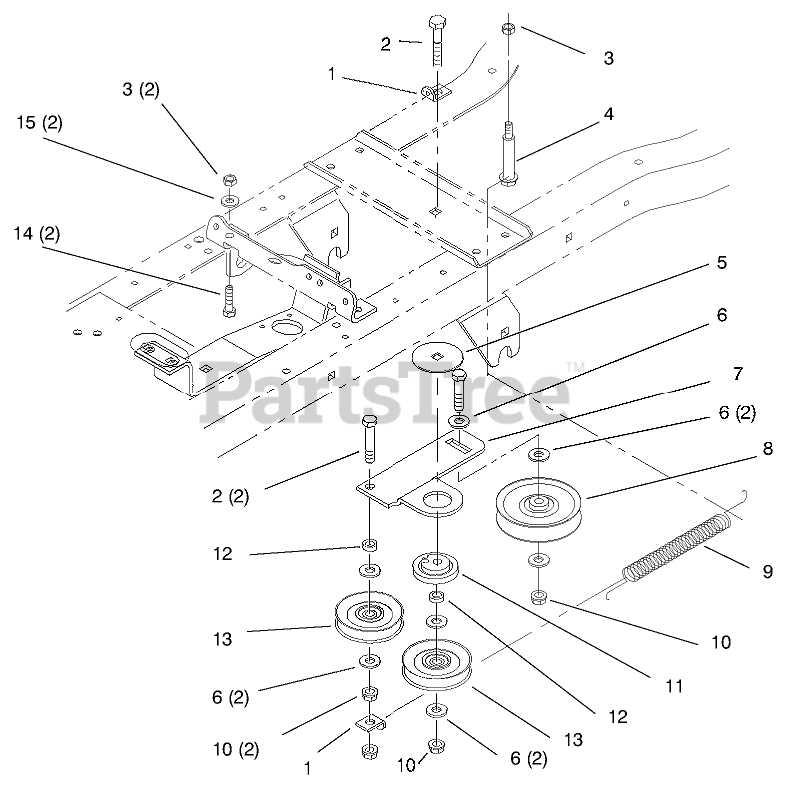

HYDRO DRIVE COMPONENTS Parts Diagram

  • Title

1

Toro 2534

CLIP - SPRING

$4.99

$

In Stock, only 2 left!

0

2

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 88-4590

BOLT-SHOULDER

$11.99

$

In Stock, only 1 left!

0

5

Toro 111419

WASHER-BEARING

$

$

Not available

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

7

Toro 92-6900

ARM - IDLER

$

$

Not available

8

Toro 92-7101

PULLEY-IDLER, FLAT

$34.99

$

Usually ships in 3-6 days

0

9

Toro 79-7530

SPRING - CLUTCH

$37.99

$

Usually ships in 3-6 days

0

10

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

11

Toro 111418

BUSHING

$32.99

$

Usually ships in 3-6 days

0

12

Toro 93-3658

Spacer

$9.99

$

Usually ships in 3-6 days

0

13

Toro 92-7102

PULLEY-IDLER

$71.99

$

In Stock, only 1 left!

0

14

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
