72046 (265-H) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) BATTERY Parts Diagram

Lawn & Garden Tractor

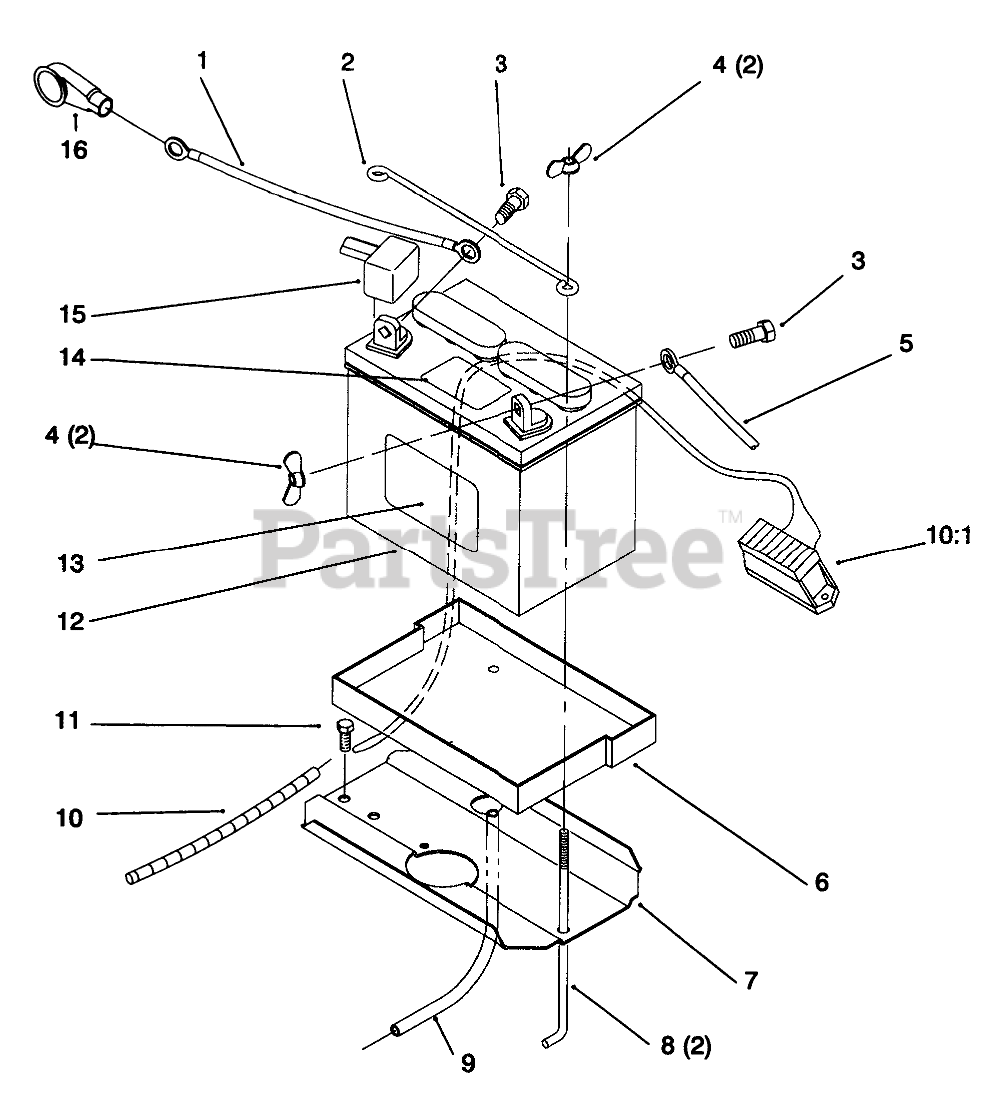

BATTERY Parts Diagram

  • Title

1

Toro 92-6990

WIRE -10" RED

$39.99

$

Usually ships in 3-6 days

0

2

Toro 117316

ROD-BATTERY HOLD DWN

$31.99

$

In Stock, only 1 left!

0

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 11

0

5

Toro 111078

WIRE -BLACK

$28.99

$

Usually ships in 3-6 days

0

6

Toro 106948

TRAY-BATTERY

$11.99

$

In Stock, only 2 left!

0

7

Toro 78-6820-03

PLATE-BATTERY

$

$

Not available

8

Toro 109547

HOOK

$10.99

$

In Stock, only 2 left!

0

9

Toro 114720

TUBE-21" BATTERY DRAIN

$8.49

$

Usually ships in 3-6 days

0

10

Toro 94-2862

HARNESS - WIRE 15H

$

$

Not available

11

Toro 32144-14

SCREW-HWHTF

$4.99

$

Usually ships in 3-6 days

0

12

Toro 105842

Battery
(Superseded to 104-8162)

$

$

Not available

13

Toro 93-6668

Decal-Battery Charge Ins (Only On: 72064)

$20.99

$

Usually ships in 3-6 days

0

14

Toro 93-7276

Decal Danger (Only On: 72064)

$20.99

$

Usually ships in 3-6 days

0

15

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0
