72045 (265-6) - Toro Lawn & Garden Tractor (SN: 089000400 - 089099999) (1998) OIL PAN/LUBRICATION Parts Diagram

Lawn & Garden Tractor

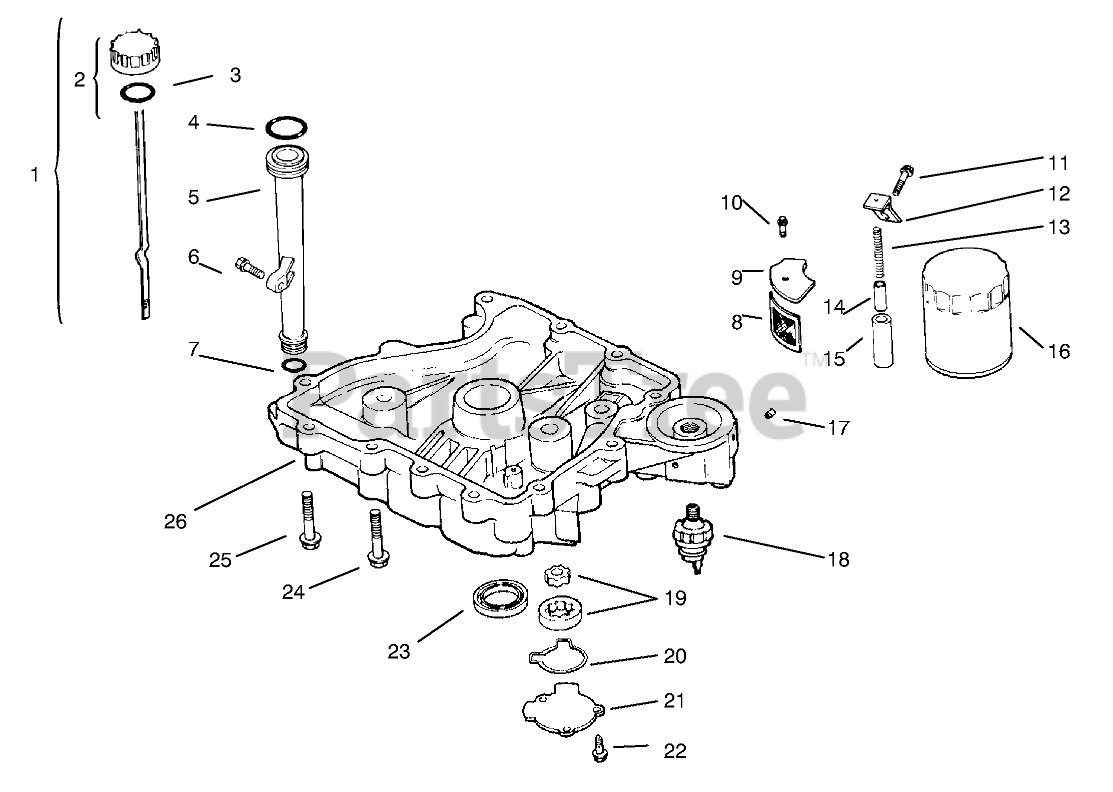

OIL PAN/LUBRICATION Parts Diagram

  • Title

1

1203801

Dipstick INC 2-3

$

$

Not available

2

2575513

Kit-Oil Fill Cap

Note: Included in a service kit or in an assembly

$

$

Not available

3

1215303

"O"Ring

Note: Included in a service kit or in an assembly

$

$

Not available

4

1215302

"O"Ring

$

$

Not available

5

1212304

Tube-Oil Fill

$

$

Not available

6

Kohler M-0545020

Screw

$

$

Not available

7

1215301

"O"Ring

$

$

Not available

8

1216207

Screen-Oil Pickup

$

$

Not available

9

1209603

Cover-Oil Screen

$

$

Not available

10

Kohler M-0545016

Screw-HF
(Superseded to M-545016)

$2.49

$

In Stock, Qty 15

0

11

Kohler M-1039025

Screw
(Superseded to M-1039025-S)

$2.49

$

Usually ships in 2-5 days

0

12

1212602

Bracket-Oil Pump Relief

$

$

Not available

13

1208903

Spring-Oil Relief Valve

$

$

Not available

14

1246201

Piston-Oil Relief Valve

$

$

Not available

15

1220801

Body-Oil Relief Valve

$

$

Not available

16

Kohler 12 050 01

Filter-Oil
(Superseded to 12 050 01-S)

$13.99

$

In Stock, Qty 20+

0

17

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

$2.49

$

In Stock, only 3 left!

0

18

5209906

Switch, pressure

$

$

Not available

19

1239301

Pump-Oil

$

$

Not available

20

1203204

"O"Ring-Pump Cover

$

$

Not available

21

1209602

Cover-Oil Pump

$

$

Not available

22

Kohler M-0545016

Screw-HF
(Superseded to M-545016)

$2.49

$

In Stock, Qty 15

0

23

1203203

Seal-Crankshaft

$

$

Not available

24

Kohler 24 086 16

Screw
(Superseded to 24 086 17-S)

$2.49

$

In Stock, Qty 5

0

25

Kohler 24 086 17

Screw
(Superseded to 24 086 17-S)

$2.49

$

In Stock, Qty 5

0

26

1219921

Pan-Oil

$

$

Not available

5251821

Lead-Oil Switch w/Tabs

Note: Not illustrated

$

$

Not available
