72045 (265-6) - Toro Lawn & Garden Tractor (SN: 079000001 - 079999999) (1997) STARTING SYSTEM-KOHLER Parts Diagram

Lawn & Garden Tractor

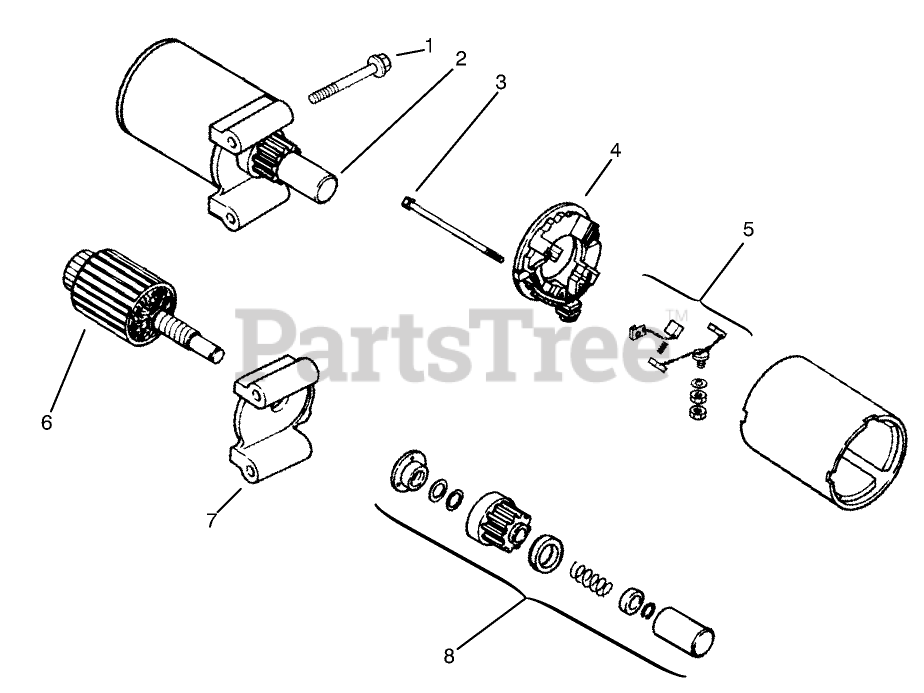

STARTING SYSTEM-KOHLER Parts Diagram

  • Title

1

Toro M0839070

Screw M8x1.25x70

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

2

1209813

Starter ASM Incl 3-8

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

1221101

Bolt

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

1221101

Bolt

Note: Included in a service kit or in an assembly

$

$

Not available

4

1222713

Commutator-End Cap

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

1222713

Commutator-End Cap

Note: Included in a service kit or in an assembly

$

$

Not available

5

1222101

Kit-Brush

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

1222101

Kit-Brush

Note: Included in a service kit or in an assembly

$

$

Not available

6

1217005

Armature

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

1217005

Armature

Note: Included in a service kit or in an assembly

$

$

Not available

7

1222705

Cap-Drive End

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

1222705

Cap-Drive End

Note: Included in a service kit or in an assembly

$

$

Not available

8

1275553

Kit-Drive

Note: Included in a service kit or in an assembly

$

$

Not available

8

1275553

Kit-Drive

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5235701

Lubricant

Note: Not illustrated

$

$

Not available

5235701

Lubricant

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
