72045 (265-6) - Toro Lawn & Garden Tractor (SN: 079000001 - 079999999) (1997) FRONT AXLE Parts Diagram

Lawn & Garden Tractor

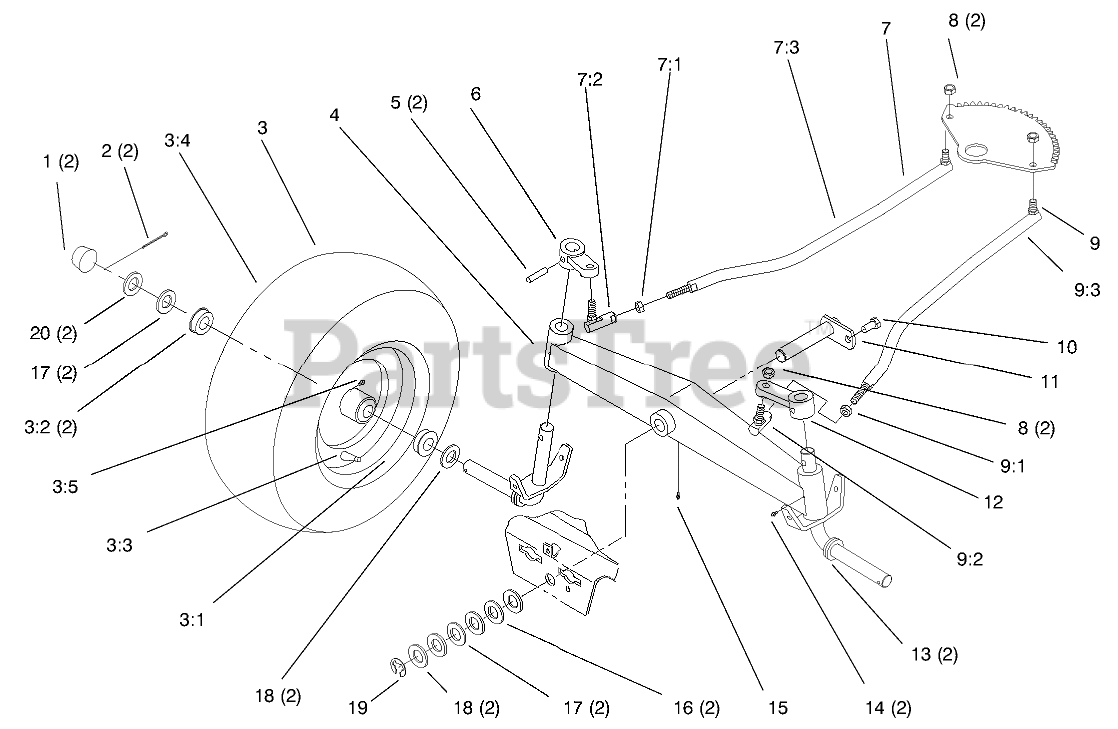

FRONT AXLE Parts Diagram

  • Title
1

Toro 61-9780

CAP-HUB

$7.99

$

In Stock, Qty 20+

0

2

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

3

Toro 93-9800

FRONT WHEEL ASM

Note: Not serviced

$

$

Not available

3:1

Toro 93-9801

Wheel ASM

$257.99

$

Usually ships in 3-6 days

0

3:2

Toro 110513

BEARING-WHEEL

$21.99

$

In Stock, only 3 left!

0

3:3

Toro 5108

VALVE

$6.99

$

In Stock, Qty 16

0

3:4

Toro 117127

Tire (16 x 6.5-8) 2-Ply -2 Wheel Axel

$

$

Not available

3:5

Toro 109500

ZERK-GREASE

$3.99

$

Usually ships in 3-6 days

0

4

Toro 78-7960-01

AXLE-FRONT

$

$

Not available

5

$6.49

$

In Stock, Qty 6

0

6

Toro 78-1950-01

Arm-Front Spindle
(Superseded to 78-1950-03)

$125.99

$

Usually ships in 3-6 days

0

7

Toro 92-6883

LINKAGE-STEERING, RH

$181.99

$

In Stock, only 1 left!

0

7:1

Nut-Hex Jam

Note: Not serviced

$

$

Not available

7:2

Toro 78-2920

BALL-JOINT
(Superseded to 94-7572)

$34.99

$

In Stock, only 2 left!

0

7:3

Toro 78-5801

Ball Link ASM
(Superseded to 92-6883)

$181.99

$

In Stock, only 1 left!

0

8

$1.99

$

In Stock, Qty 20+

0

9

Toro 92-6884

LINKAGE-STEERING, LH

$181.99

$

In Stock, only 4 left!

0

9:1

Nut-Hex Jam

Note: Not serviced

$

$

Not available

9:2

Toro 78-2920

BALL-JOINT
(Superseded to 94-7572)

$34.99

$

In Stock, only 2 left!

0

9:3

Toro 78-5811

Ball Link ASM
(Superseded to 92-6884)

$181.99

$

In Stock, only 4 left!

0

10

Toro 9267154

SCREW-HWH, TAPTITE

$3.49

$

In Stock, Qty 6

0

11

Toro 92-7057-03

PIN-AXLE

$72.99

$

Usually ships in 3-6 days

0

12

Toro 78-1940-01

Arm-Front Spindle
(Superseded to 78-1940-03)

$125.99

$

Usually ships in 3-6 days

0

13

Toro 78-2601-01

SPINDLE
(Superseded to 78-2601-03)

$109.99

$

In Stock, only 1 left!

0

14

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

15

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, only 2 left!

0

16

Toro 9202324

Washer

$1.99

$

In Stock, only 3 left!

0

17

Toro 1278

WASHER

$2.99

$

In Stock, only 3 left!

0

18

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 7

0

19

Toro 5618

E-RING

$1.49

$

In Stock, Qty 11

0

20

Toro 28-2480

WASHER-PLAIN

$4.99

$

In Stock, Qty 6

0
