72045 (265-6) - Toro Lawn & Garden Tractor (SN: 079000001 - 079999999) (1997) AIR INTAKE/FILTRATION Parts Diagram

Lawn & Garden Tractor

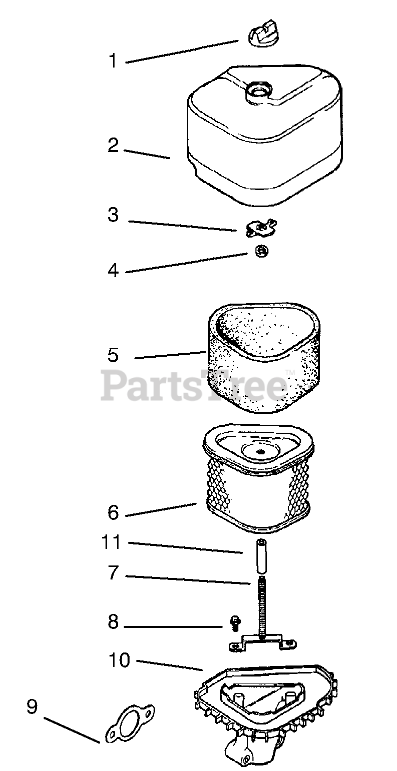

AIR INTAKE/FILTRATION Parts Diagram

  • Title
1

2534103

Knob-Cover

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

1209645

Cover-Air Cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

Kohler 12 100 01

Wingnut
(Superseded to 12 100 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, only 2 left!

0

4

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

5

Kohler 12 083 05

Element-Air Cleaner
(Superseded to 12 083 05-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$19.99

$

In Stock, Qty 6

0

6

1208308

Element-Precleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

1207205

Stud M-6x1.0x66

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

1208601

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

9

1204102

Gasket-Air Cleaner

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

1209405

Base-Air Cleaner (Incl.

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

11

1203210

Seal

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

Kohler 12 113 04

Decal-Air Cleaner
(Superseded to 12 113 04-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

Kohler 12 113 04

Decal-Air Cleaner
(Superseded to 12 113 04-S)

Note: Not illustrated

$2.49

$

In Stock, only 1 left!

0

1274304

Kit-Air Cleaner Incl 1-11

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

1274304

Kit-Air Cleaner Incl 1-11

Note: Not illustrated

$

$

Not available
