72045 (265-6) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) OIL PAN/LUBRICATION Parts Diagram

Lawn & Garden Tractor

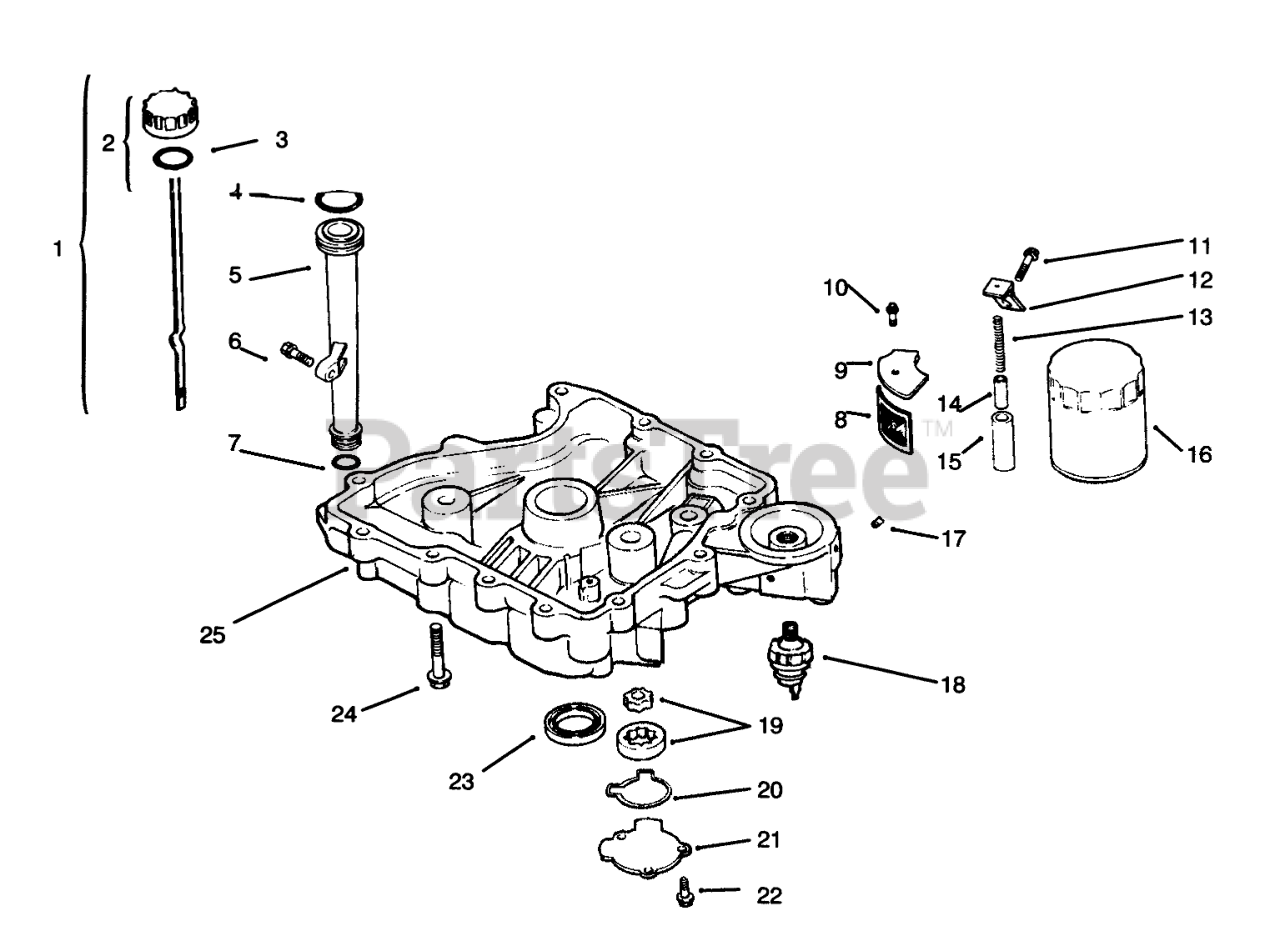

OIL PAN/LUBRICATION Parts Diagram

  • Title

1

12_038_01

Dipstick INC 2-3

$

$

Not available

2

Toro 25_755_13

Kit-Oil Cap INC 3

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

3

12_153_03

"O"Ring

Note: Included in a service kit or in an assembly

$

$

Not available

4

12_153_02

"O"Ring-Upper Tube

$

$

Not available

5

12_123_04

Tube-Oil Fill

$

$

Not available

6

Kohler SM-0545020

Screw
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

7

12_153_01

"O"Ring

$

$

Not available

8

12_162_02

Screen-Oil Pickup

$

$

Not available

9

12_096_03

Cover-Oil Screen

$

$

Not available

10

Kohler M-0545016

Screw-HF
(Superseded to M-545016)

$2.49

$

In Stock, Qty 15

0

11

Kohler M-1039025

Screw
(Superseded to M-1039025-S)

$2.49

$

Usually ships in 2-5 days

0

12

12_126_02

Bracket-Relief Valve

$

$

Not available

13

12_089_03

Spring-Relief Valve

$

$

Not available

14

12_462_01

Piston-Relief Valve

$

$

Not available

15

12_208_01

Body-Relief Valve

$

$

Not available

16

12_050_01

Filter-Oil

$

$

Not available

17

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

$2.49

$

In Stock, only 3 left!

0

18

Toro 52_099_06

Switch-Oil Pressure

$

$

Currently unavailable

19

12_393_01

Pump-Oil

$

$

Not available

20

12_032_04

"O" Ring-Oil Pump

$

$

Not available

21

12_096_02

Cover-Oil Pump

$

$

Not available

22

Kohler M-0545016

Screw-HF
(Superseded to M-545016)

$2.49

$

In Stock, Qty 15

0

23

12_032_03

Seal-Oil

$

$

Not available

24

Toro Sm-0838045

Screw M8x1.25x45

$

$

Currently unavailable

25

Toro 12_199_09

Pan-Oil

$

$

Currently unavailable

Toro 52_518_21

Lead Oil Switch

Note: Not illustrated

$

$

Currently unavailable
